Use the following templates (Figure 13 and Figure 14 on page 36) to identify the
proper locations for inserting M5 screws when mounting the support rails and
DS5020 storage subsystem to a rack cabinet. The locations for the M5 screws are
highlighted in the templates.
Hold the applicable template up to each side of the rack cabinet at the 3U section
where you will install the DS5020. U boundaries are shown as horizontal dashed
lines in the rack mounting templates. The highlighted squares on each side of the
template mark the positions where you will thread the M5 screws that secure the
rails and the DS5020 to the front and rear of the cabinet.
Note: The mounting holes that are shown in the following templates are square.
The holes in your rack might be round, square, or threaded.

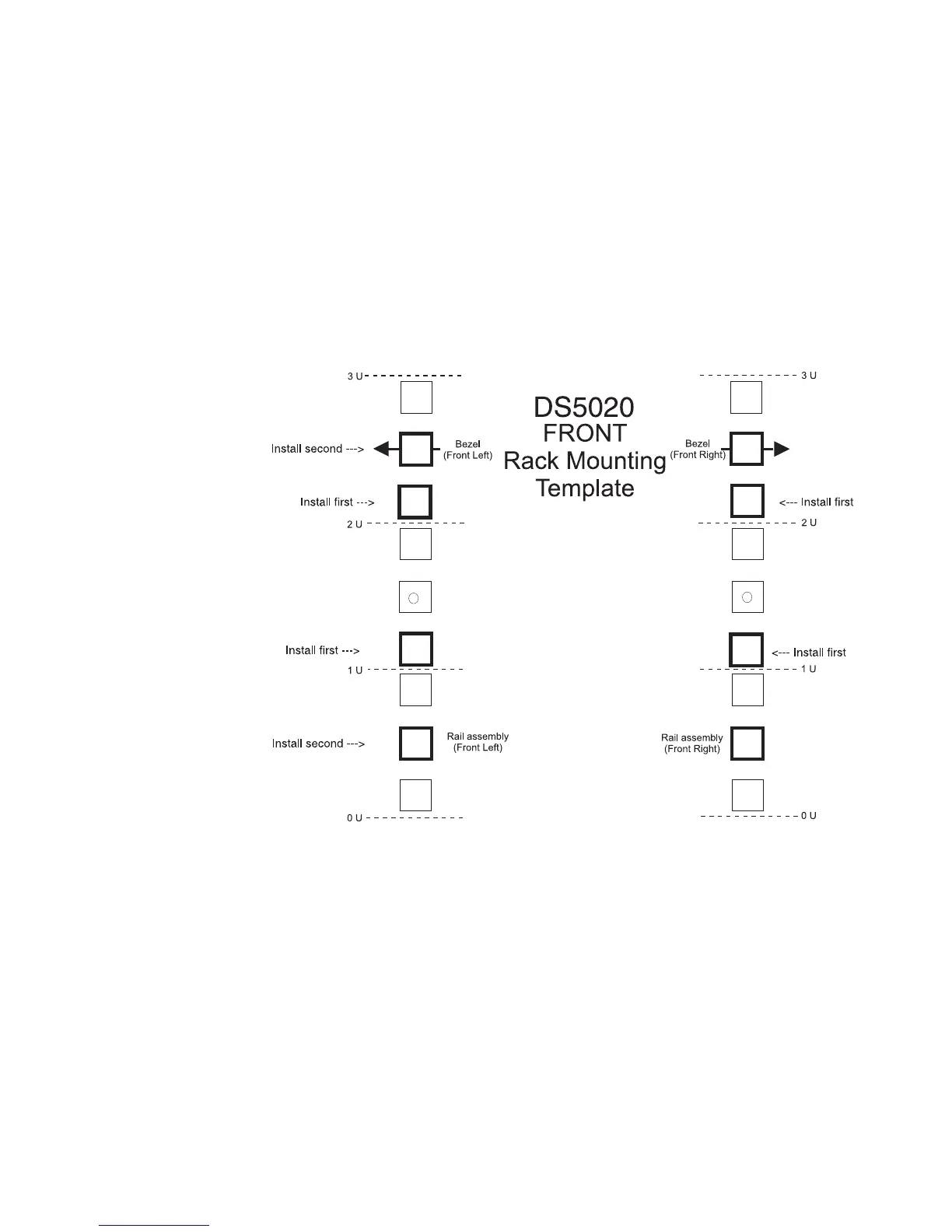

Figure 13. Front rack mounting template
Chapter 2. Installing the storage subsystem 35
