Attention: Make sure the port connectors on the adapter are aligned
properly with the chassis on the rear of the server. An incorrectly seated
adapter might cause damage to the system board or the adapter.
13. Reinstall the PCI riser-card assembly in PCI riser connector 1 if you have
removed it previously (see “Replacing a PCI riser-card assembly” on page 68).
Results
If you have other devices to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 106.

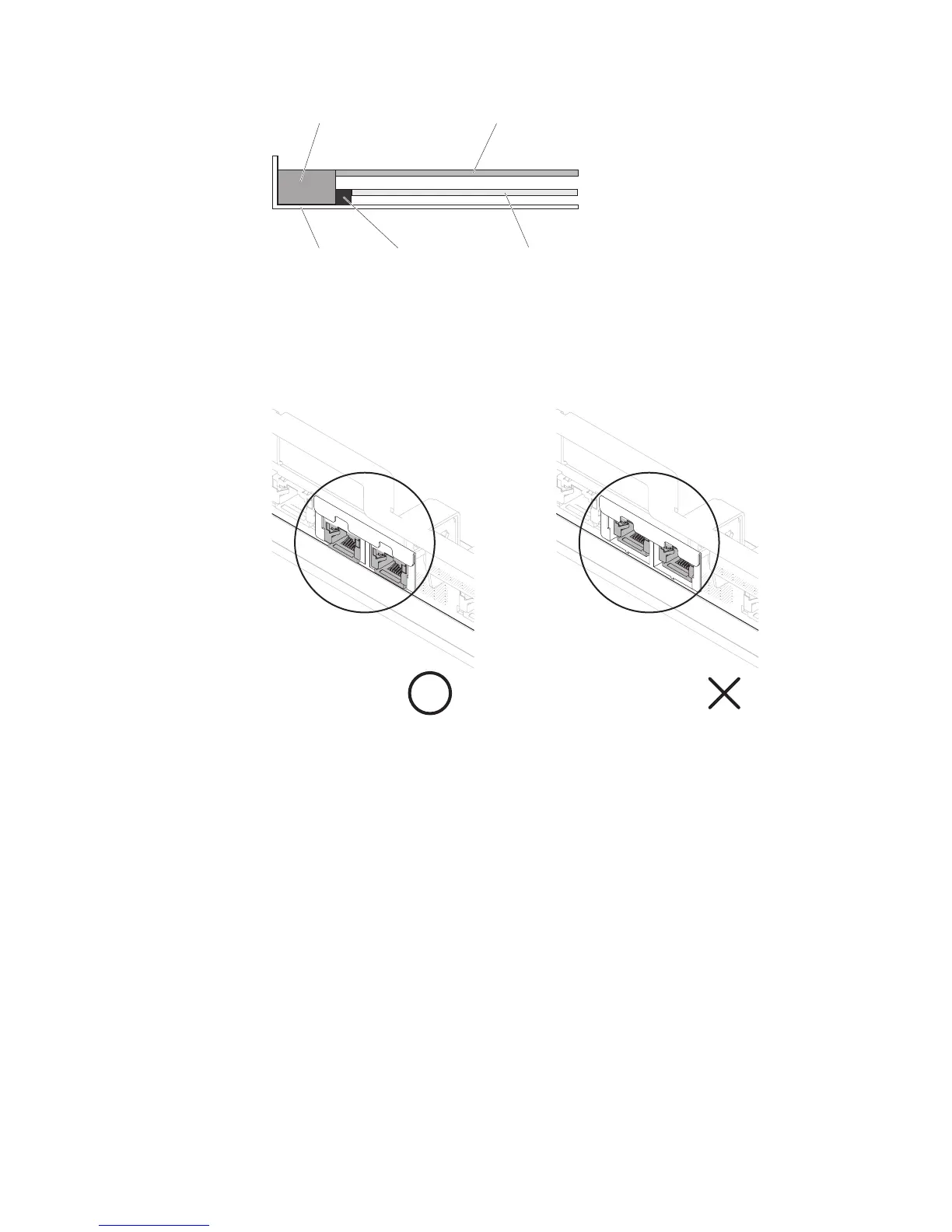

System board
Chassis
Ethernet ports
Rubber
stopper
Adapter
Figure 62. Adapter installation
Figure 63. Port connectors
Chapter 2. Installing optional devices 89
