IBM System x3550 M3 Type 4254 User Manual

Installing an optional ServeRAID adapter advanced feature key
Use this information to install an optional ServeRAID adapter advanced feature
key.
About this task
To install an optional ServeRAID adapter advanced feature key, complete the
following steps:
Procedure
1. Read the safety information that begins on “Safety” on page v and “Installation
guidelines” on page 43.
2. Turn off the server and peripheral devices and disconnect all power cords.
3. Remove the cover (see “Removing the cover” on page 51).

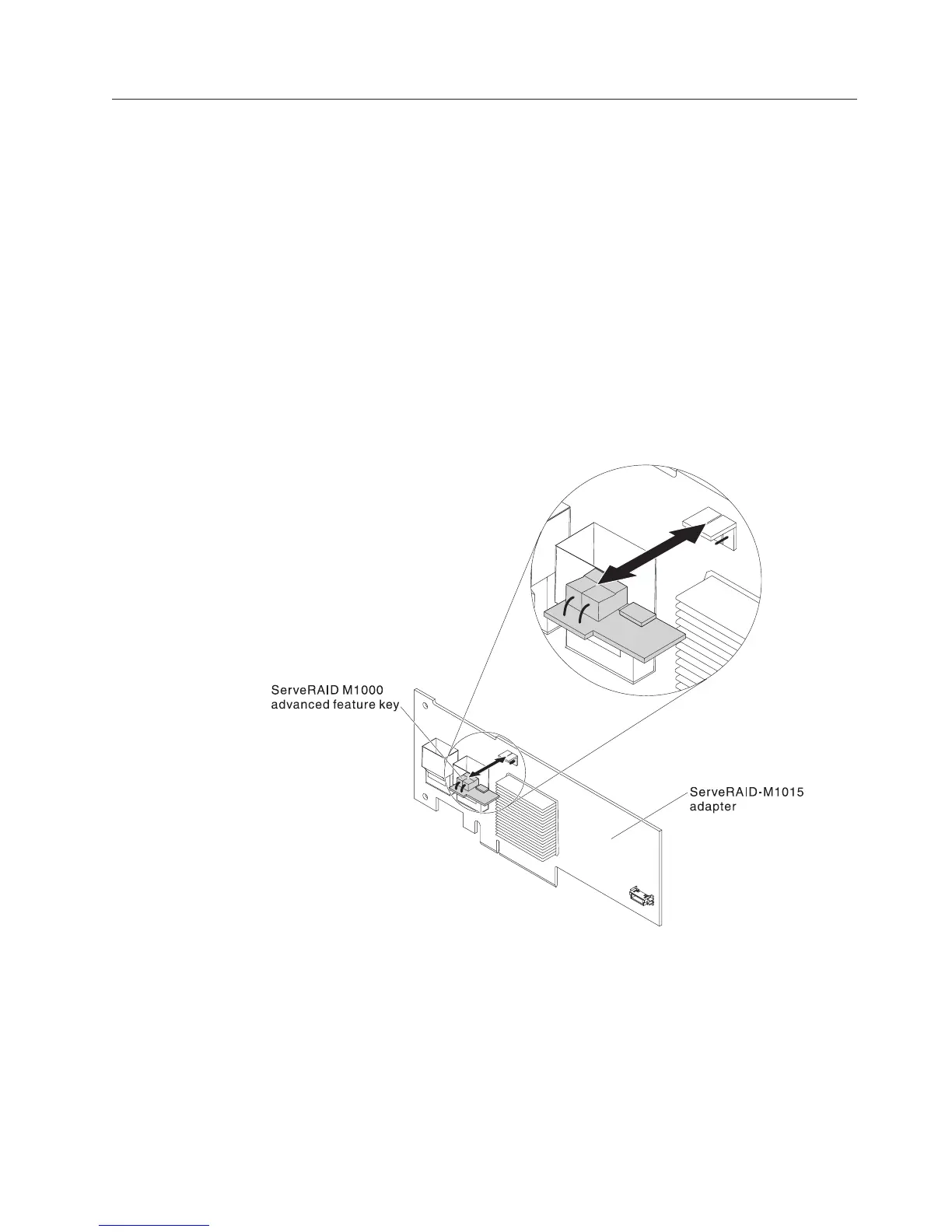

4. Align the upgrade key with the connector on the ServeRAID adapter and push
it into the connector until it is firmly seated.
Figure 50. ServeRAID M1000 advanced feature key installation
Chapter 2. Installing optional devices 79

IBM System x3550 M3 Type 4254 Specifications

General

Processor	Intel Xeon 5600 series
Max Processors	2
Memory	Up to 192 GB DDR3
Form Factor	1U Rack
Chipset	Intel 5520
Drive Bays	Up to 4 hot-swap 2.5-inch SAS/SATA or SSD
RAID Support	RAID 0, 1, 10
Network Interface	Dual-port Gigabit Ethernet
Power Supply	460W or 675W
Expansion Slots	2 PCIe 2.0
Weight	Approximately 17.24 kg (38 lbs)
Memory Slots	18 (RDIMM) or 12 (UDIMM)
