Installing the cover
Use this information to install the cover.
About this task
To install the server cover, complete the following steps:
Procedure
1. Make sure that all cables, adapters, and other components are installed and
seated correctly and that you have not left loose tools or parts inside the server.
Also, make sure that all internal cables are correctly routed.
Important: Before you slide the cover forward, make sure that all the tabs on
both the front, rear, and side of the cover engage the chassis correctly. If all the
tabs do not engage the chassis correctly, it will be very difficult to remove the
cover later.
2. Position the cover on top of the server.

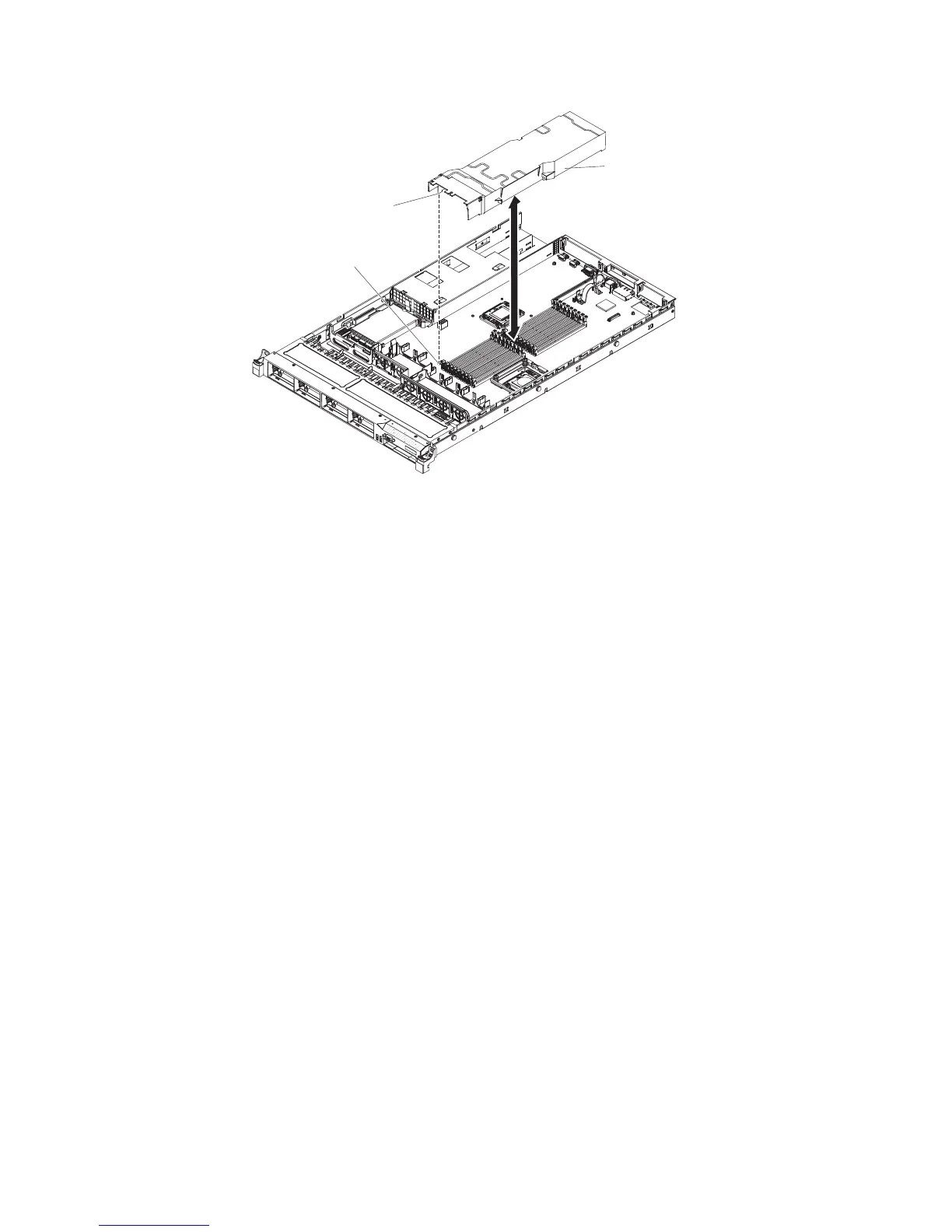

DIMM air baffle
Baffle pin hole
Baffle pin
Figure 88. DIMM air baffle installation
108 IBM System x3550 M3 Type 4254 and 7944: Installation and User's Guide
