3. Slide the cover toward the front of the server.
4. Make sure that the cover correctly engages all the inset tabs on the server.
5. Slide the server all the way into the rack until it latches.
6. Reconnect the external cables and power cords.
Connecting the cables
The following illustrations show the locations of the input and output connectors
of the server.
The following illustration shows the locations of the input and output connectors
on the rear of the server.
You must turn off the server before you connect or disconnect cables.
See the documentation that comes with any external devices for additional cabling
instructions. It might be easier for you to route cables before you connect the
Ta b
Cover

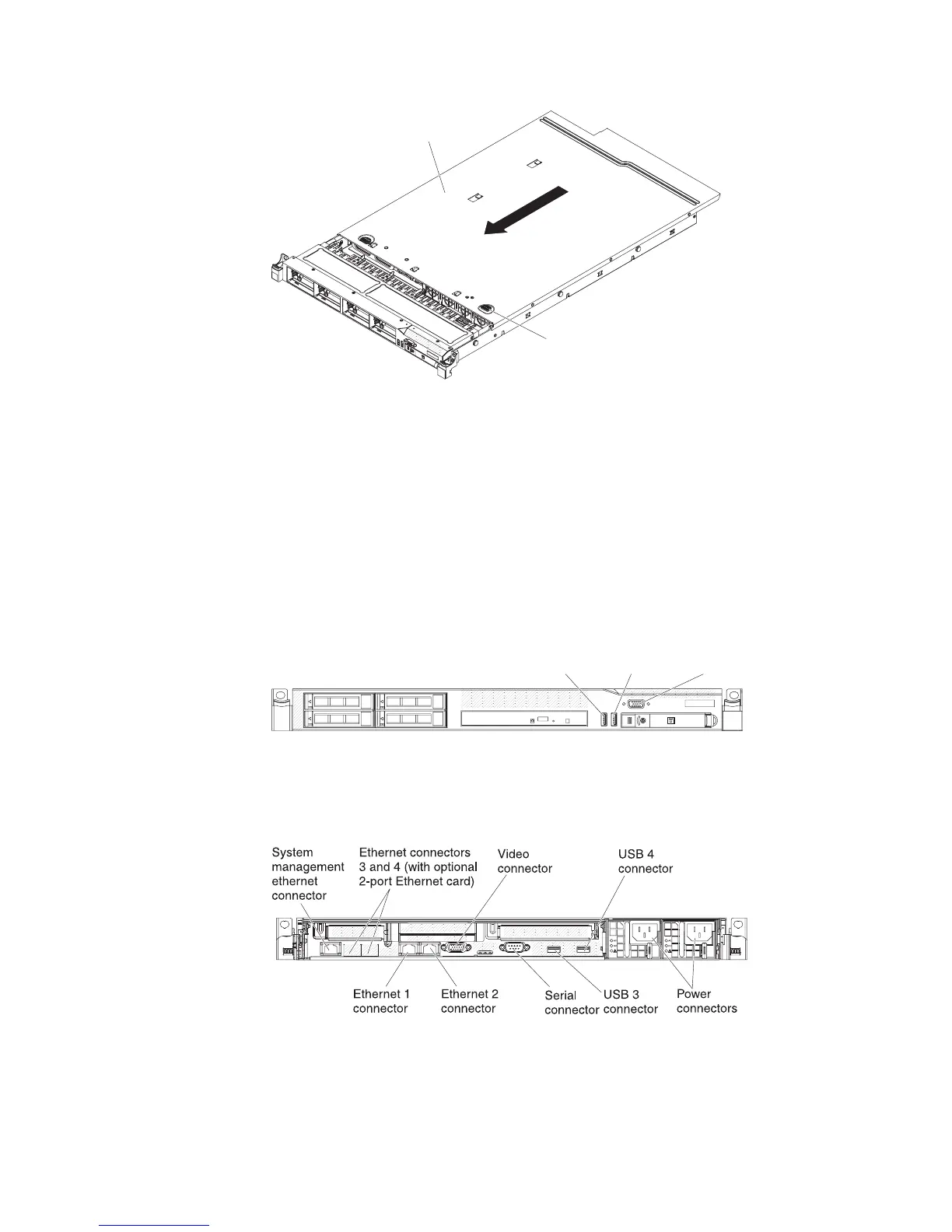

Figure 89. Cover installation
Video
connector
USB 1
connector
USB 2
connector
Figure 90. Front of server
Figure 91. Rear of server
Chapter 2. Installing optional devices 109
