IBM System x3550 M3 Type 4254

v ServeRAID-M10i adapter: Take the signal cable that is attached to the drive
backplane for drive bays 0 through 3 and connect it to the connector on the
ServeRAID adapter connector that is closest to the power-supply cage.
Connect the other signal cable so that is attached to the drive backplane for
drive bays 4 and 7 and connect it to the other connector on the adapter.
Results
If you have other devices to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 106.

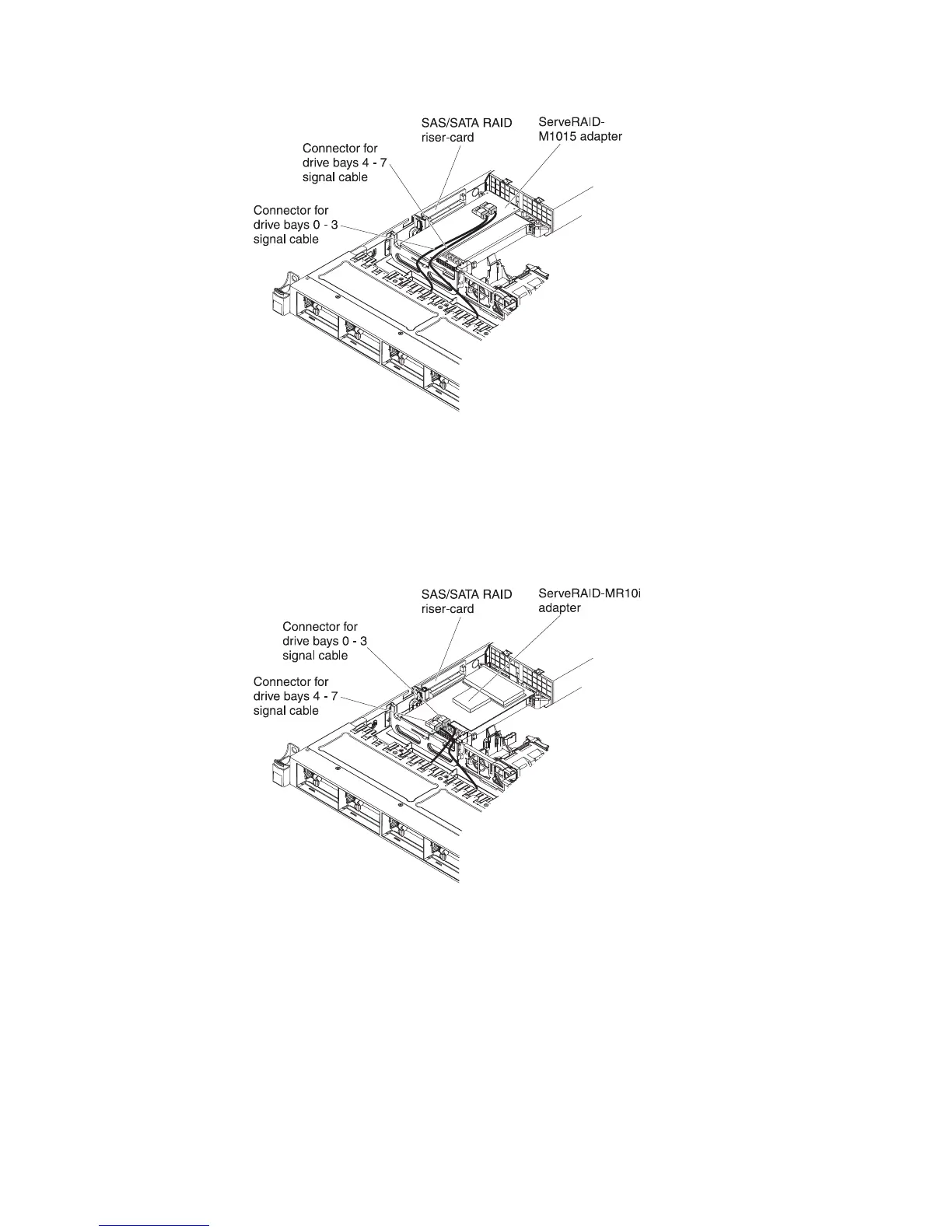

Figure 48. ServeRAID-M5015 adapter cable connection
Figure 49. ServeRAID-M10i adapter cable connection
78 IBM System x3550 M3 Type 4254 and 7944: Installation and User's Guide
