v ServeRAID-BR10i, ServeRAID-M1015, ServeRAID-M5014, or
ServeRAID-M5015 adpater: Take the signal cable that is attached to the drive
backplane for drive bays 4 through 7 and connect it to the ServeRAID
adapter connector that is closest to the power supply cage. Connect the other
signal cable so that is attached to the drive backplane for drive bays 0
through 3 and connect it to the other connector on the adapter.

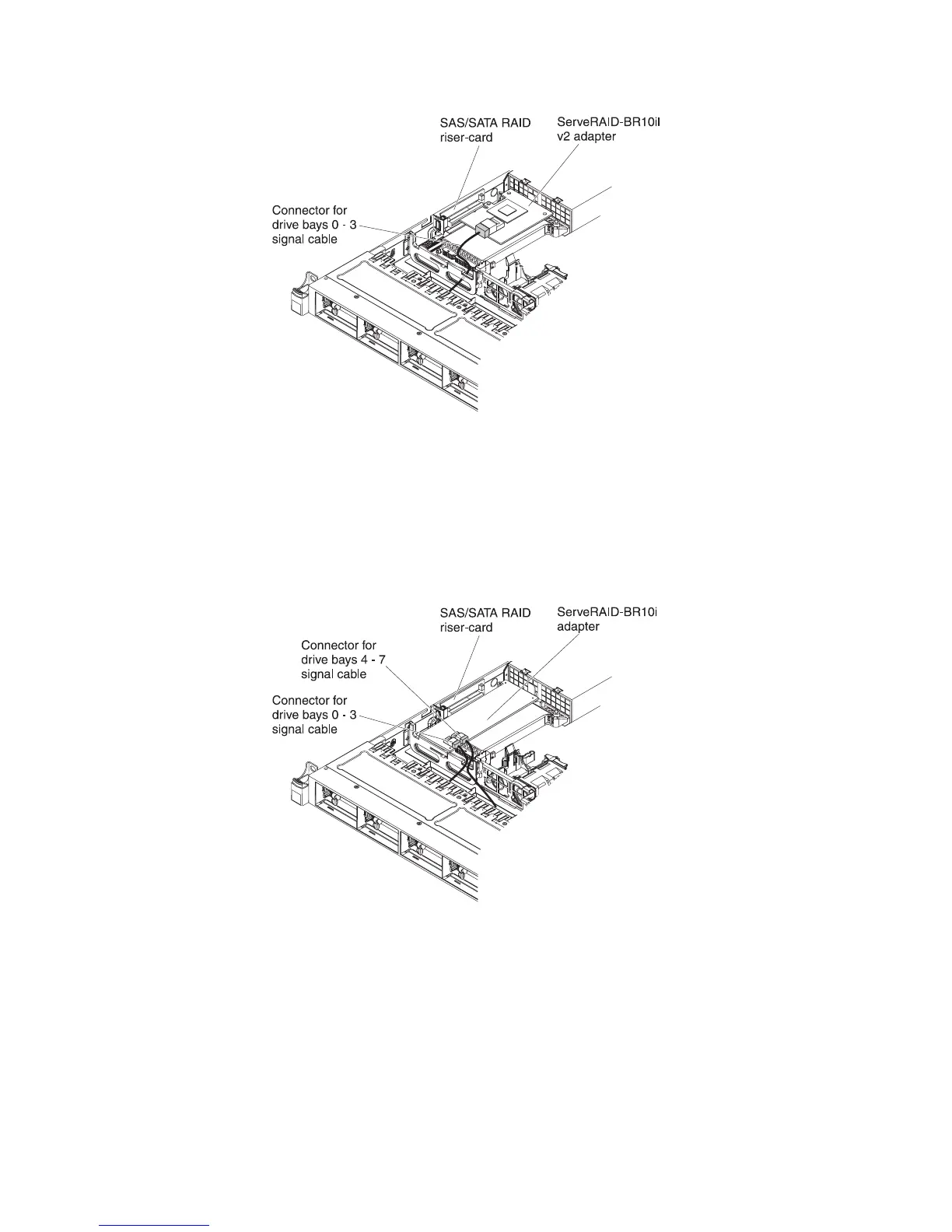

Figure 46. ServeRAID-BR10il v2 adapter cable connection
Figure 47. ServeRAID-BR10i adapter cable connection
Chapter 2. Installing optional devices 77
