with the interposer card connector on the RAID adapter.
c. Press the interposer card down onto the interposer card connector on the
RAID adapter until it is firmly seated.
d. From underneath the RAID adapter, insert the screw that you took from
the bag and tighten the screw to secure the interposer card to the RAID
adapter.
8. Connect one end of the remote batter cable to the interposer card.
Attention: To avoid damage to the hardware, make sure that the black dot
on the remote battery cable connector faces away from the interposer card on
the adapter. Do not force the remote battery cable into the connector.

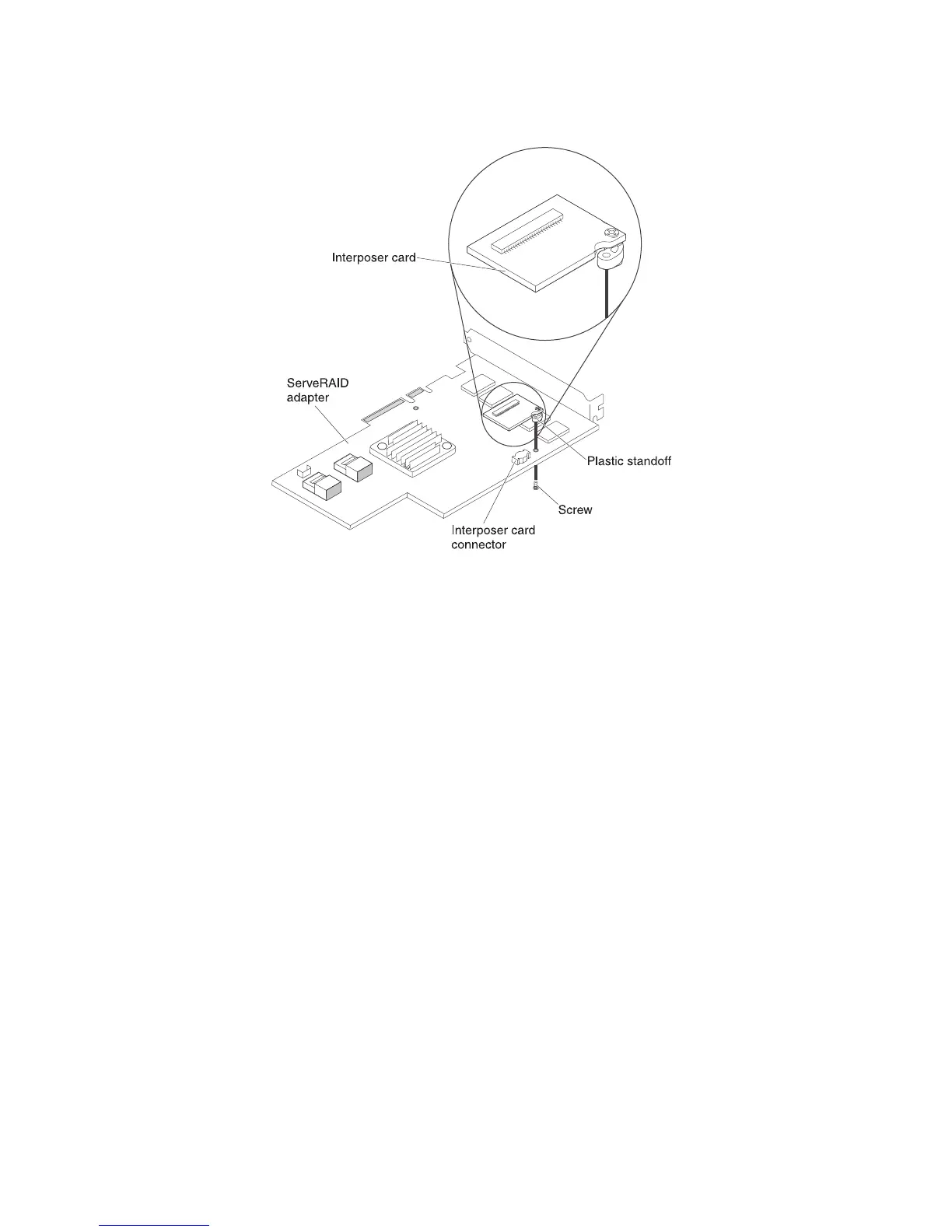

Figure 65. Interposer card installation
Chapter 2. Installing optional devices 91

IBM System x3550 M3 Type 4254 Specifications

General

Processor	Intel Xeon 5600 series
Max Processors	2
Memory	Up to 192 GB DDR3
Form Factor	1U Rack
Chipset	Intel 5520
Drive Bays	Up to 4 hot-swap 2.5-inch SAS/SATA or SSD
RAID Support	RAID 0, 1, 10
Network Interface	Dual-port Gigabit Ethernet
Power Supply	460W or 675W
Expansion Slots	2 PCIe 2.0
Weight	Approximately 17.24 kg (38 lbs)
Memory Slots	18 (RDIMM) or 12 (UDIMM)
