9. Insert the tabs on the bottom of the bezel into the holes on the chassis.
10. Reinstall the bezel screws and the video connector screws.
11. Align the cable connector with the connector on the rear of the optical drive
cage and press the cable connector into the optical drive cage connector until
it is firmly seated.
12. Pull the cable connector latch up and hold it there while you slide the cable
connector to the left; then, slide the cable connector latch down to lock the
cable in place.
13. Connect the other end of the DVD cable to the connector on the system board.
The following illustration shows the cable routing for the DVD cable: The
DVD cable should go on the top of the operation information panel cable (in
the middle) and the Video/USB cable (on the bottom) when all three cables
are installed in the server.
Bezel
Optical drive cage

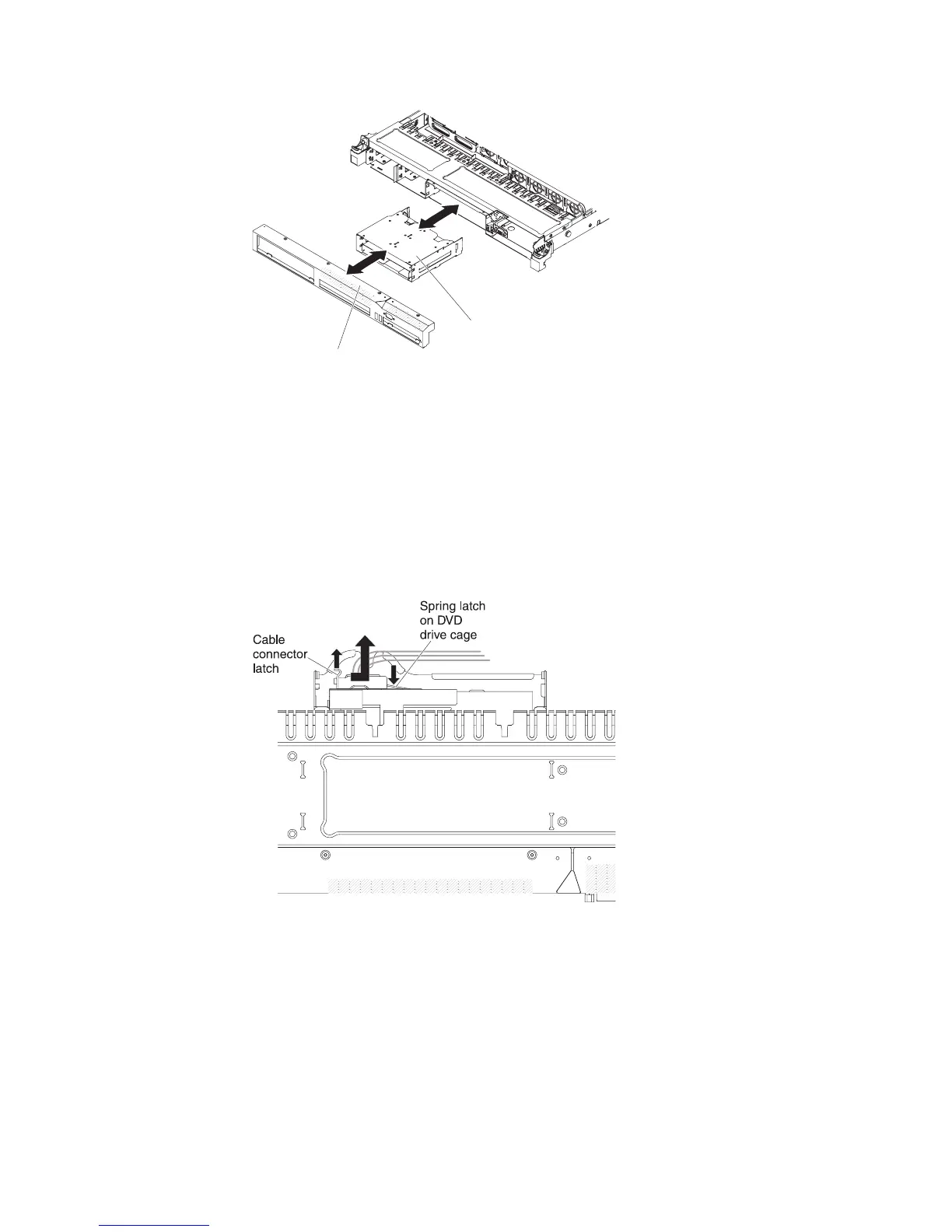

Figure 72. Optical drive cage installation
Figure 73. DVD drive cable installation
96 IBM System x3550 M3 Type 4254 and 7944: Installation and User's Guide
