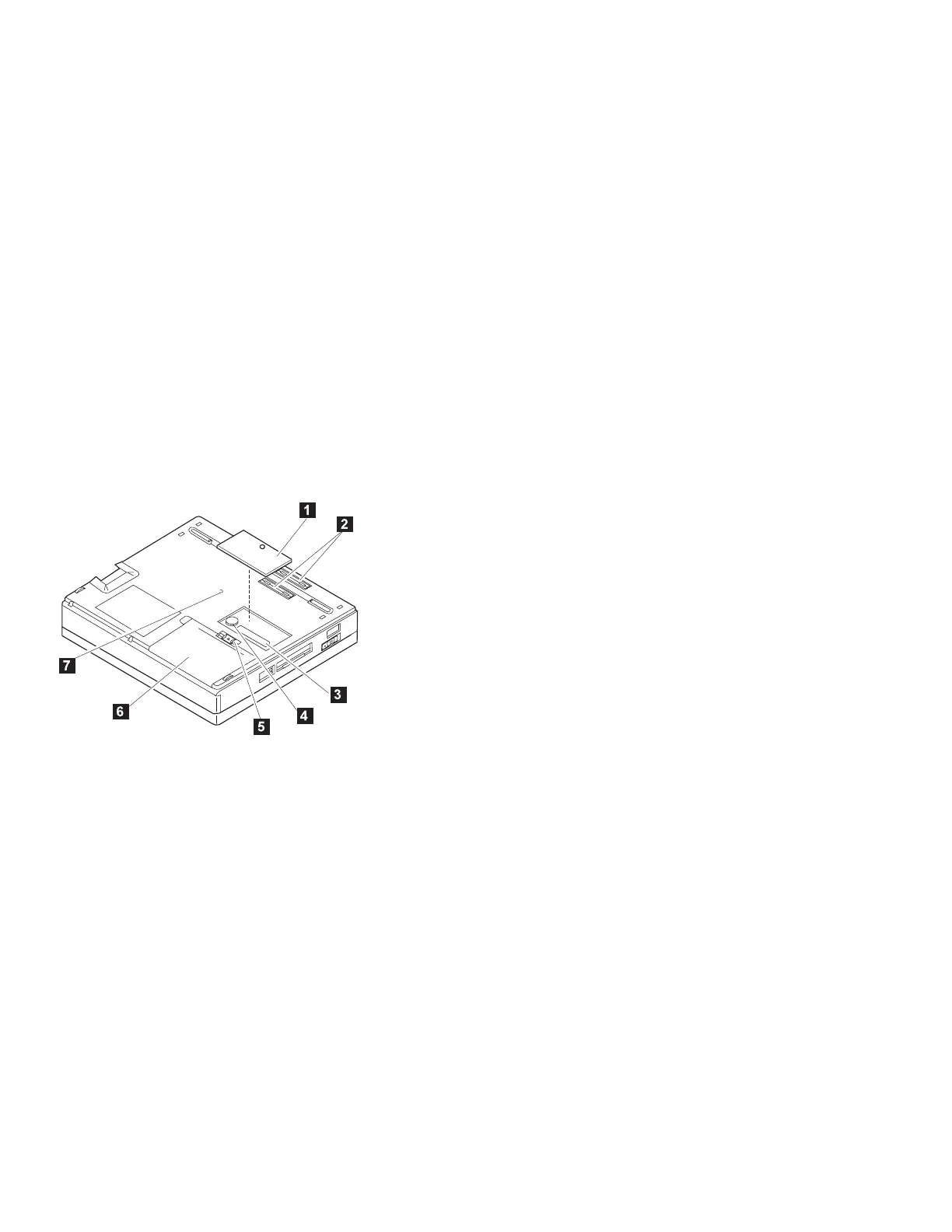

Bottom View
.1/ Memory-slot cover
.2/ System-expansion connector
.3/ Memory slot
.4/ Backup battery
.5/ Battery pack latch
.6/ Battery pack
.7/ Power shutdown switch
ThinkPad 380, 385 (2635) 103
