IBM THINKPAD S05L-1270-01 Hardware Maintenance Manual

1150 Audio Card, Main Card, and Riser
Card
 Port Replicator (1010)
 Option Card Cover and Option Card (1020)
 UltraBay II (1040)
 Device Space Bay Frame (1050)
 Upper Cover (1060)
 Bracket (1070)
 Cables (1100)
 Shield Cover (1130)
 Main Card Assembly (1140)

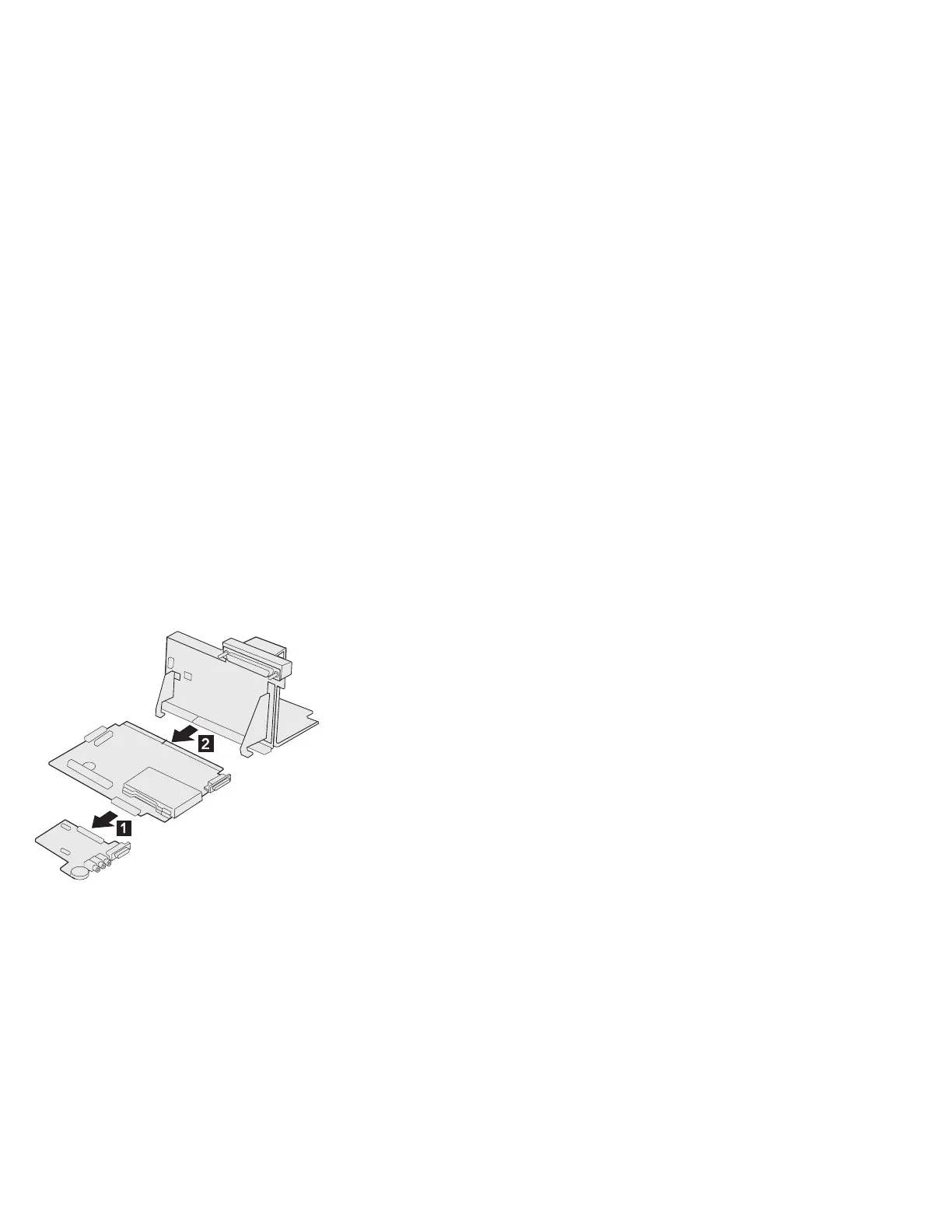

.1/: For removing the audio card
.2/: For removing the riser card
.1/, .2/: For removing the main board
672 IBM Mobile Systems HMM
