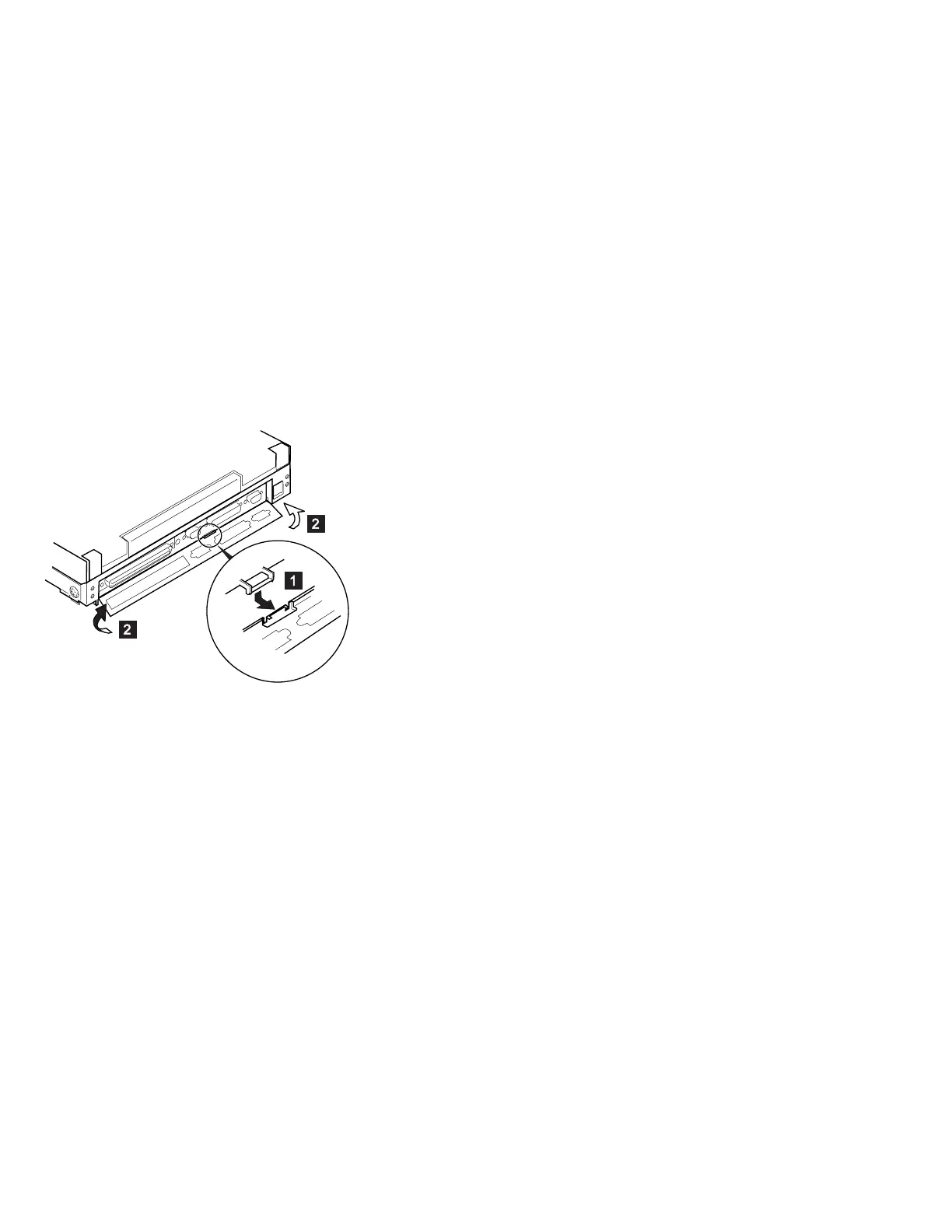

1010 Rear Connector Door
Remove the center latch .1/; then remove the rear
connector door by flexing it .2/.
ThinkPad 765D (9546), 765L (9547) 455
