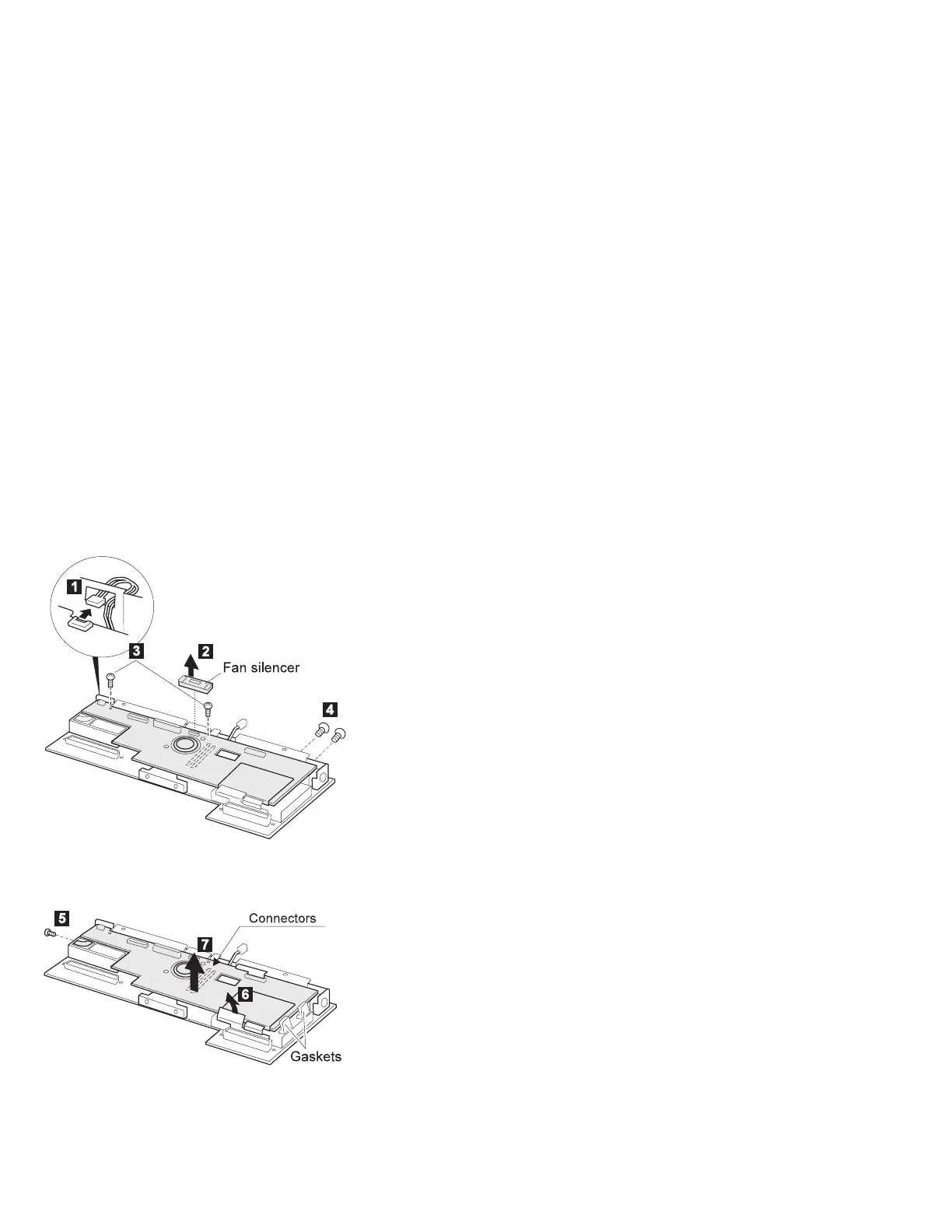

1140 Video Card
 Diskette Drive or CD-ROM Drive (1020)
 Battery Pack (1030)
 Hard Disk Drive (1040)
 Top Cover (1060)
 Keyboard Unit (1070)
 LCD Unit (1080)
 Front IR and Rear IR (1090)
 System Board Assembly (1110)
 Upper Shield (1120)
 External FDD Connector (1130)
Note: Steps .4/ and .5/ are 765D-unique.
Procedure continues on the following page.
When replacing:
Do not cover the gaskets with the video card.
For the Model 765D, remove the video cable. (See page
477)
ThinkPad 765D (9546), 765L (9547)
475
