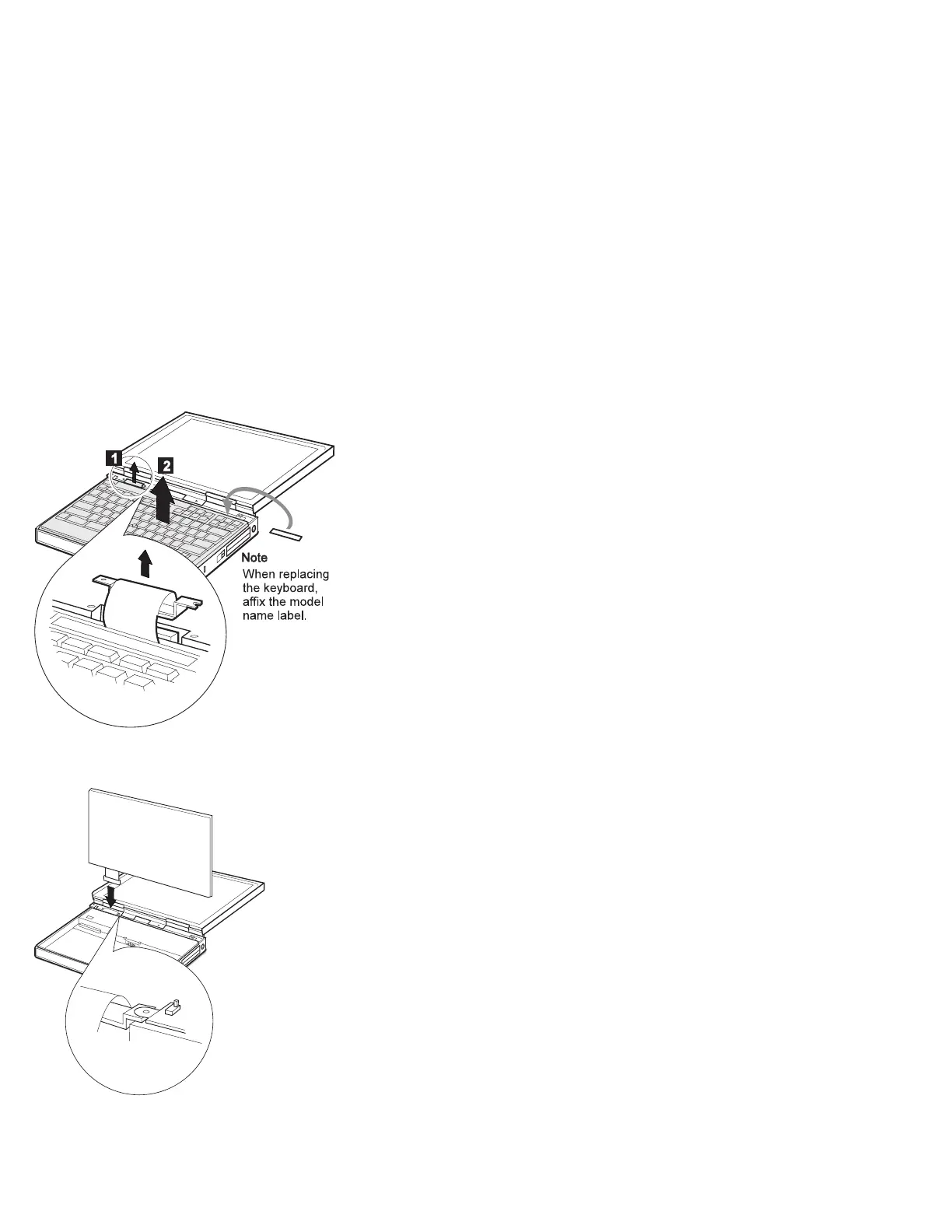

1070 Keyboard Unit
 Battery Pack (1030)
 Top Cover (1060)
When replacing:
Connect the keyboard connector as shown in the figure;
then replace the keyboard.
464 IBM Mobile Systems HMM
