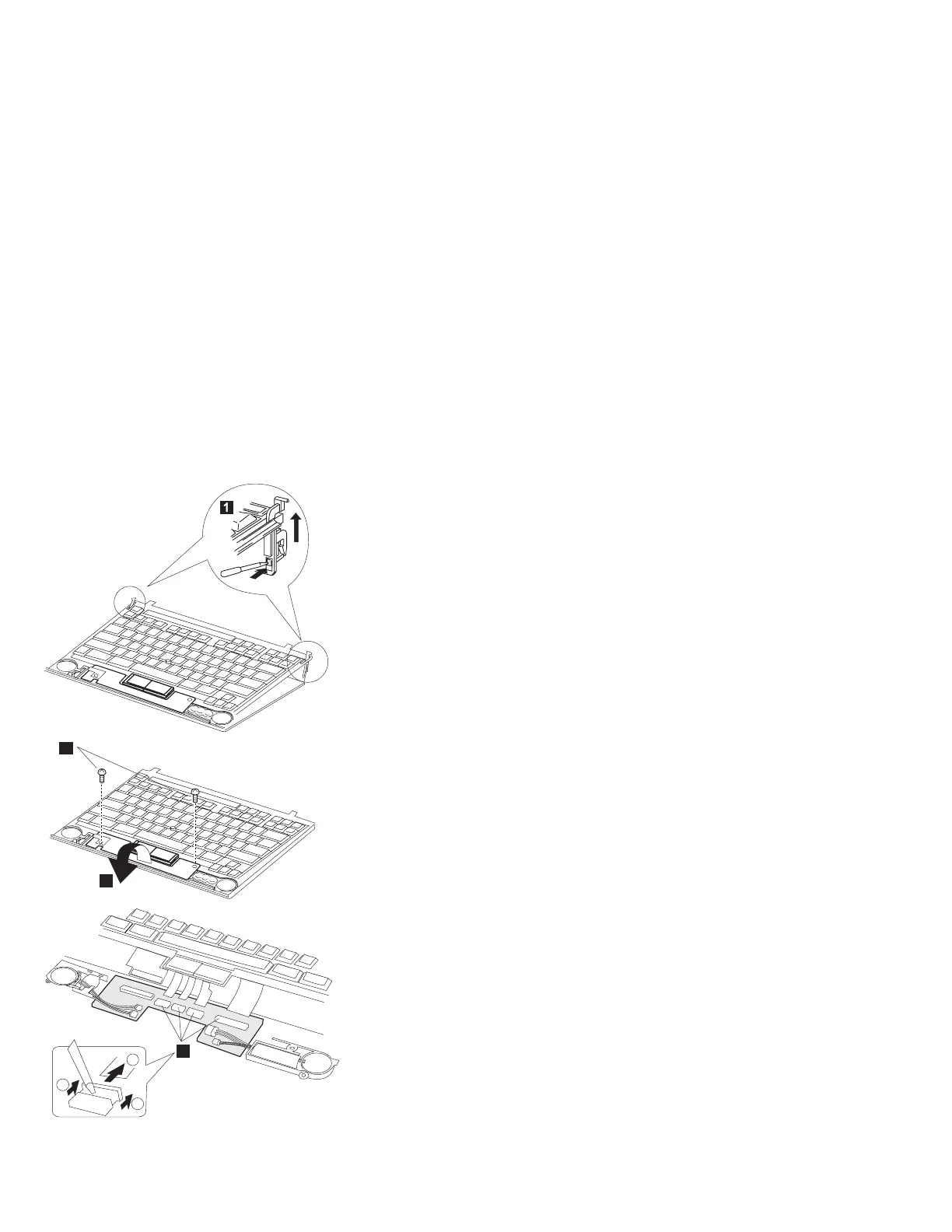

1180 Keyboard Cable
 Top Cover (1060)
 Keyboard Unit (1070)
 Palm Rest (1160)
Note: When pulling the lever off the foot .1/, separate
the lower part of the lever from the foot by inserting
a pointed device through the hole in the foot.
4 mm
2
3
4
1
1
2
ThinkPad 760 (9546, 9547) 285
