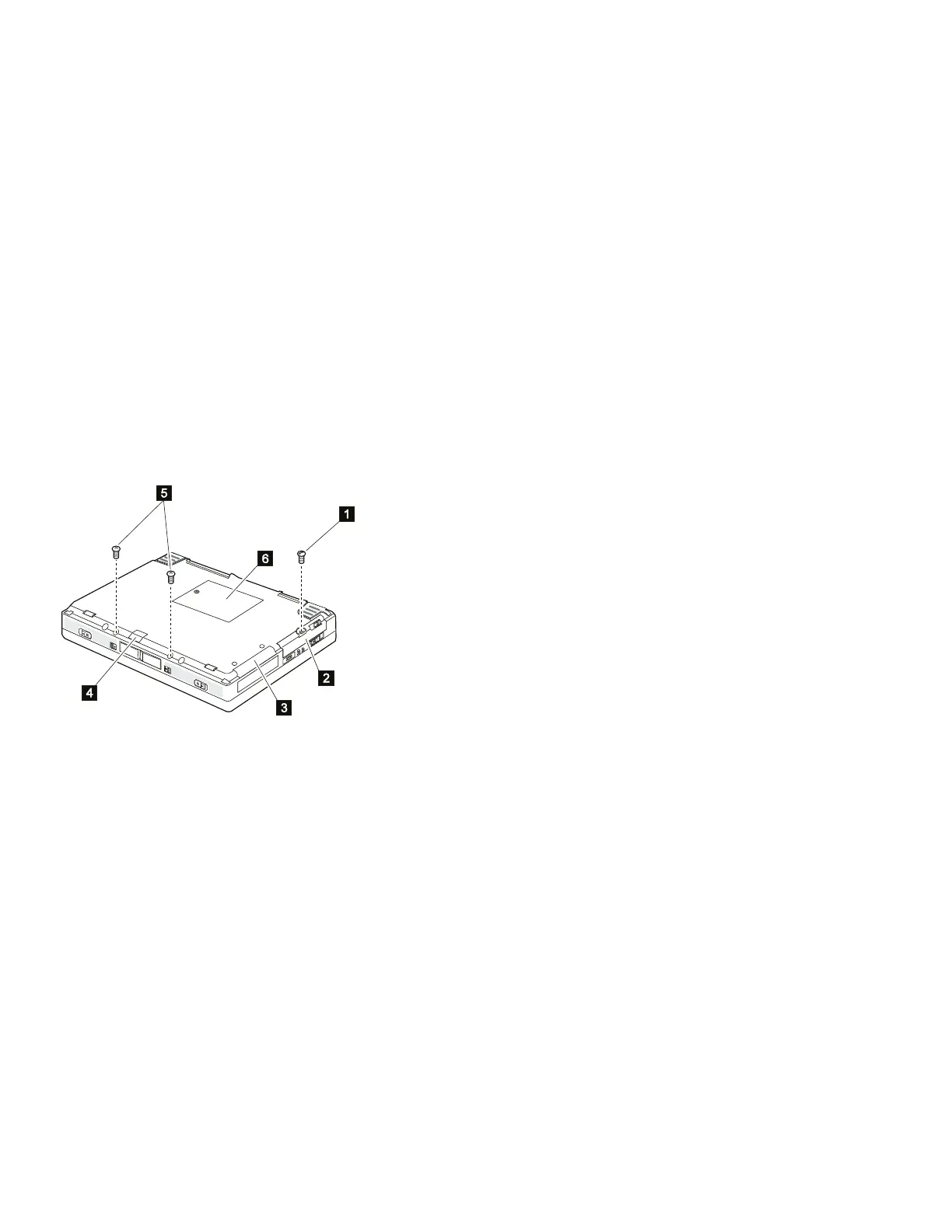

Bottom View
.1/ Coin screw or security screw
.2/ Hard disk drive
.3/ DVD adapter card slot
.4/ Front infrared port
.5/ Security screws
.6/ DIMM slot
ThinkPad 770 (9548, 9549) 609
