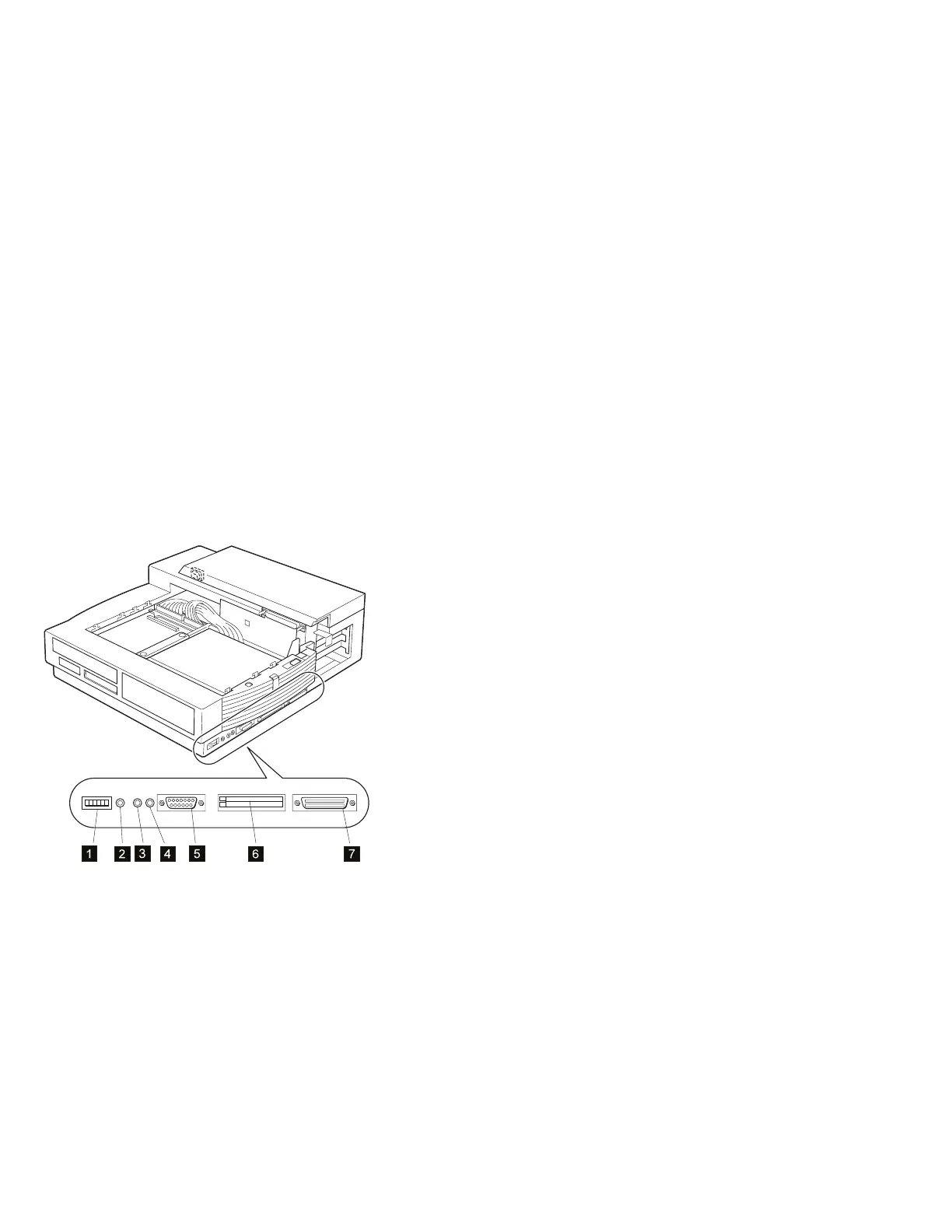

Side View
.1/ Volume knob
.2/ Headphone jack
.3/ Line-out jack
.4/ Speaker-in jack
.5/ MIDI/joystick port
.6/ PC Card (PCMCIA) slots
.7/ SCSI connector
SelectaDock III (3547-003) 675
