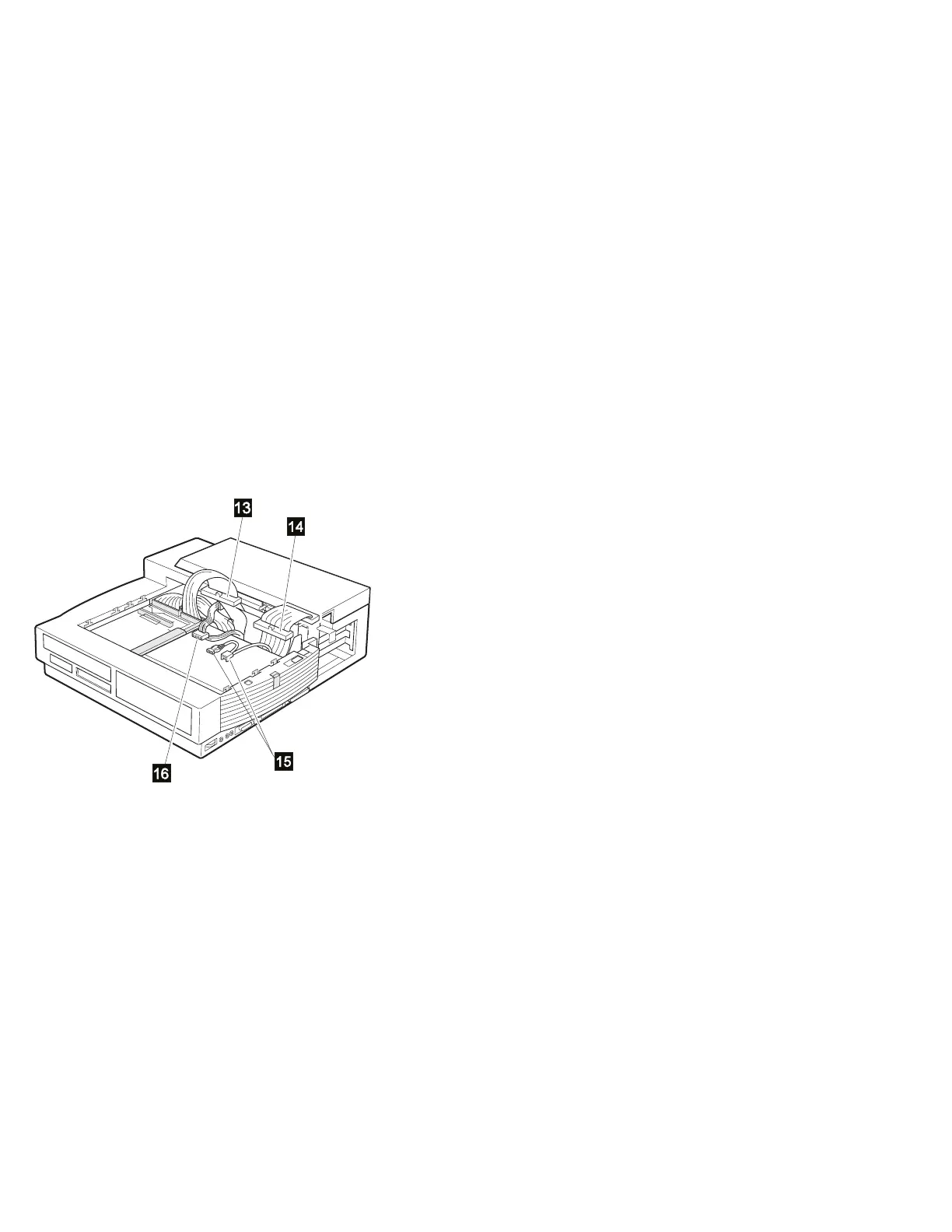

Front View (continued)
.13/ IDE connector
.14/ Internal SCSI connector
.15/ Audio device connector
.16/ Power supply connector
674 IBM Mobile Systems HMM
