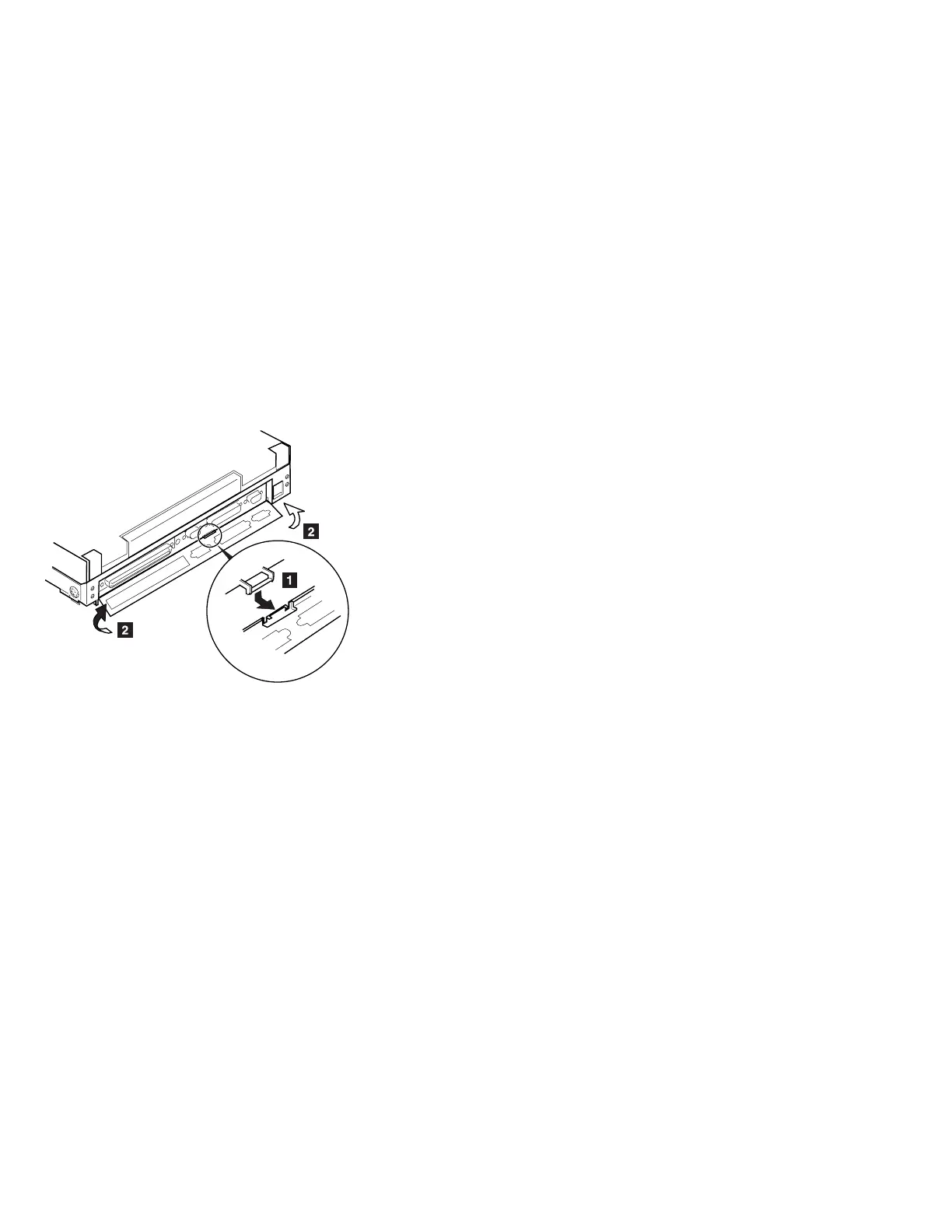

1010 Rear Connector Door
Remove the center latch .1/; then remove the rear
connector door by flexing it .2/.
ThinkPad 760 (9546, 9547) 247
