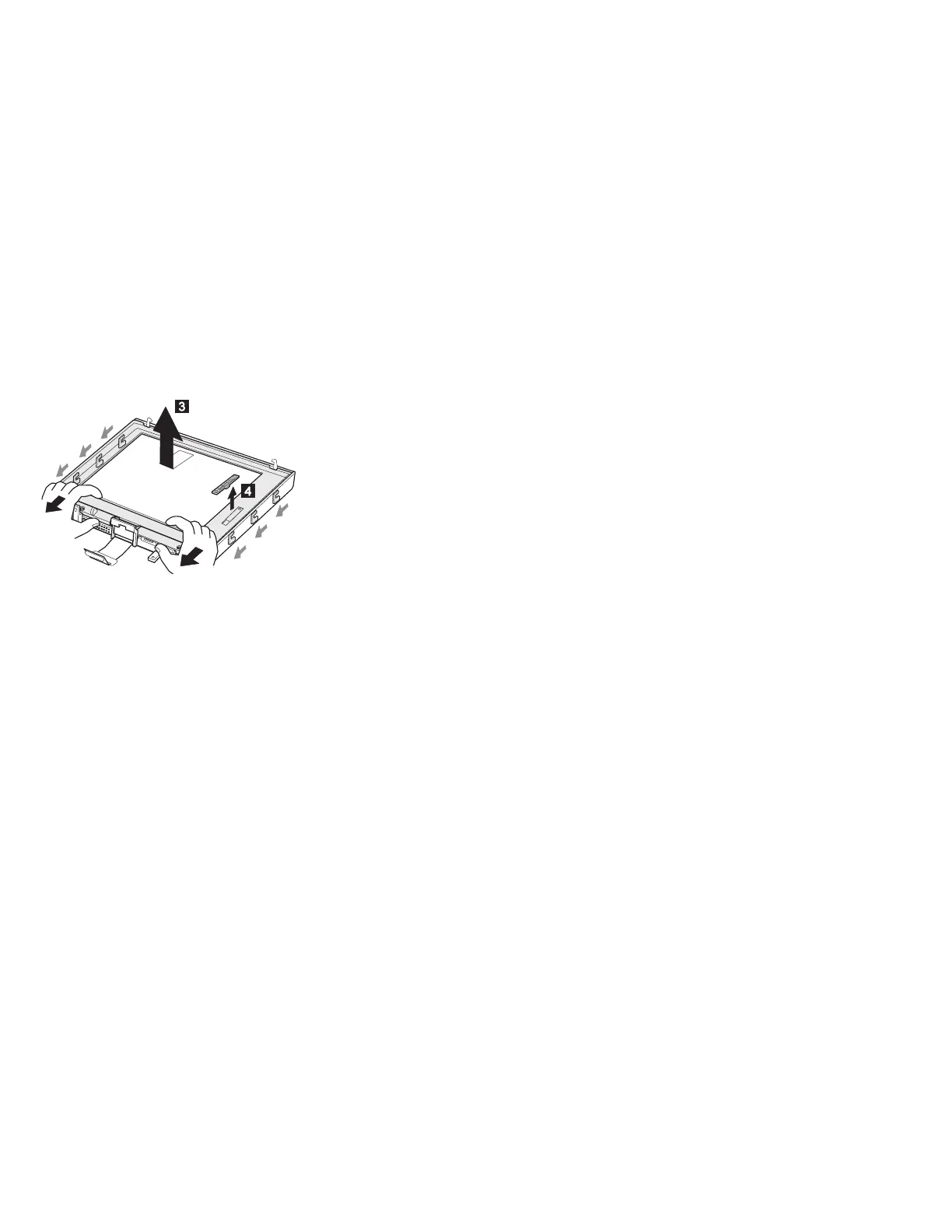

 The LCD front cover has several latches. Release
the latches as shown in step .3/.
 For the DSTN LCD, there are two slide knobs in step
.4/.
When replacing:
Make sure that the slide knobs work correctly.
174 IBM Mobile Systems HMM
