Thick-Type
Models
(Other
Models
and
760E)
When
replacing:
1.

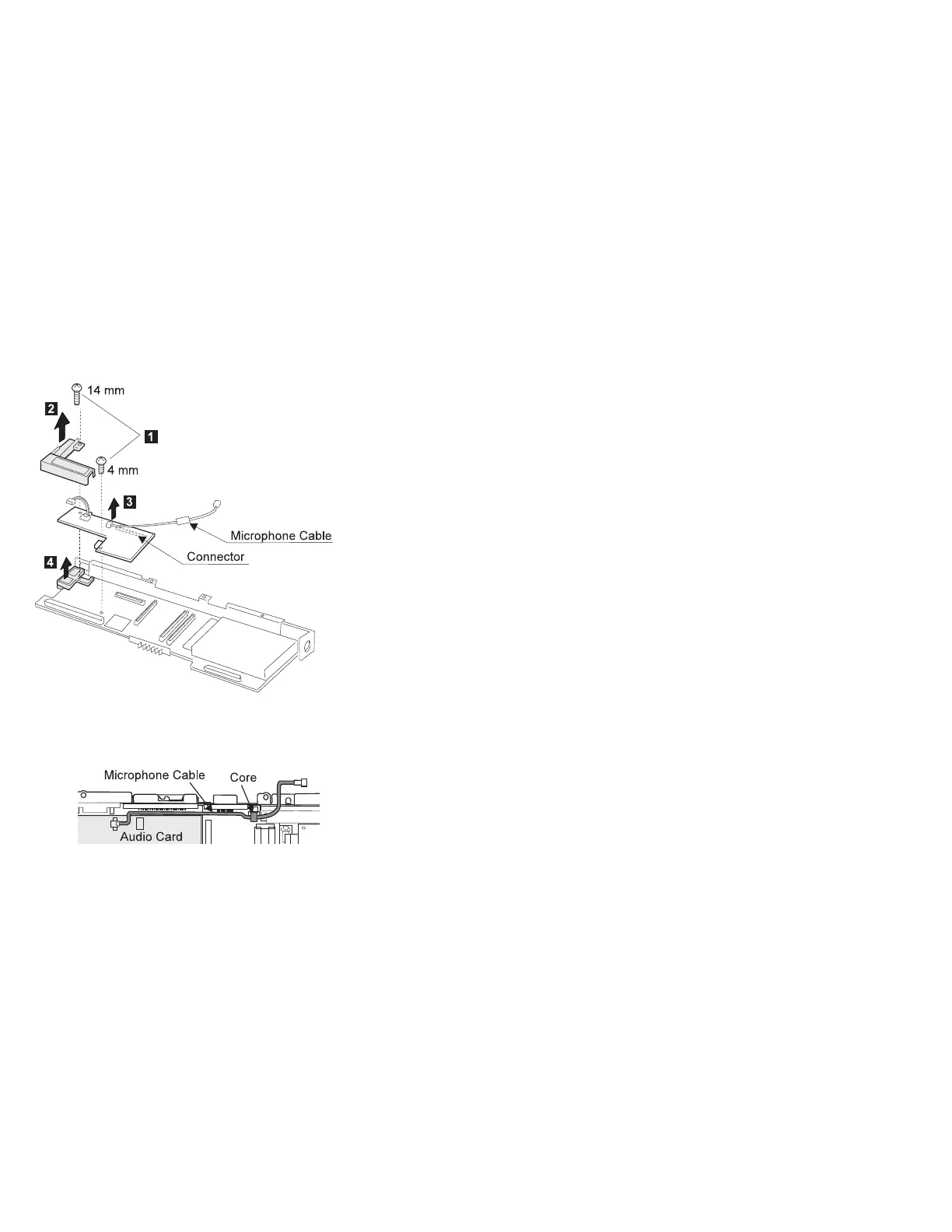

The
following
figure
shows
the
microphone
cable
routing
for
models
760XL/760XD.
2.
When
replacing
the
DSP
card
or
the
audio
(ESS)
card,
make
sure
that
the
connector
on
the
card
is
not
loose.
If
the
connector
does
not
connect
properly,
no
sound
will
be
produced.
276
IBM
Mobile
Systems
HMM
