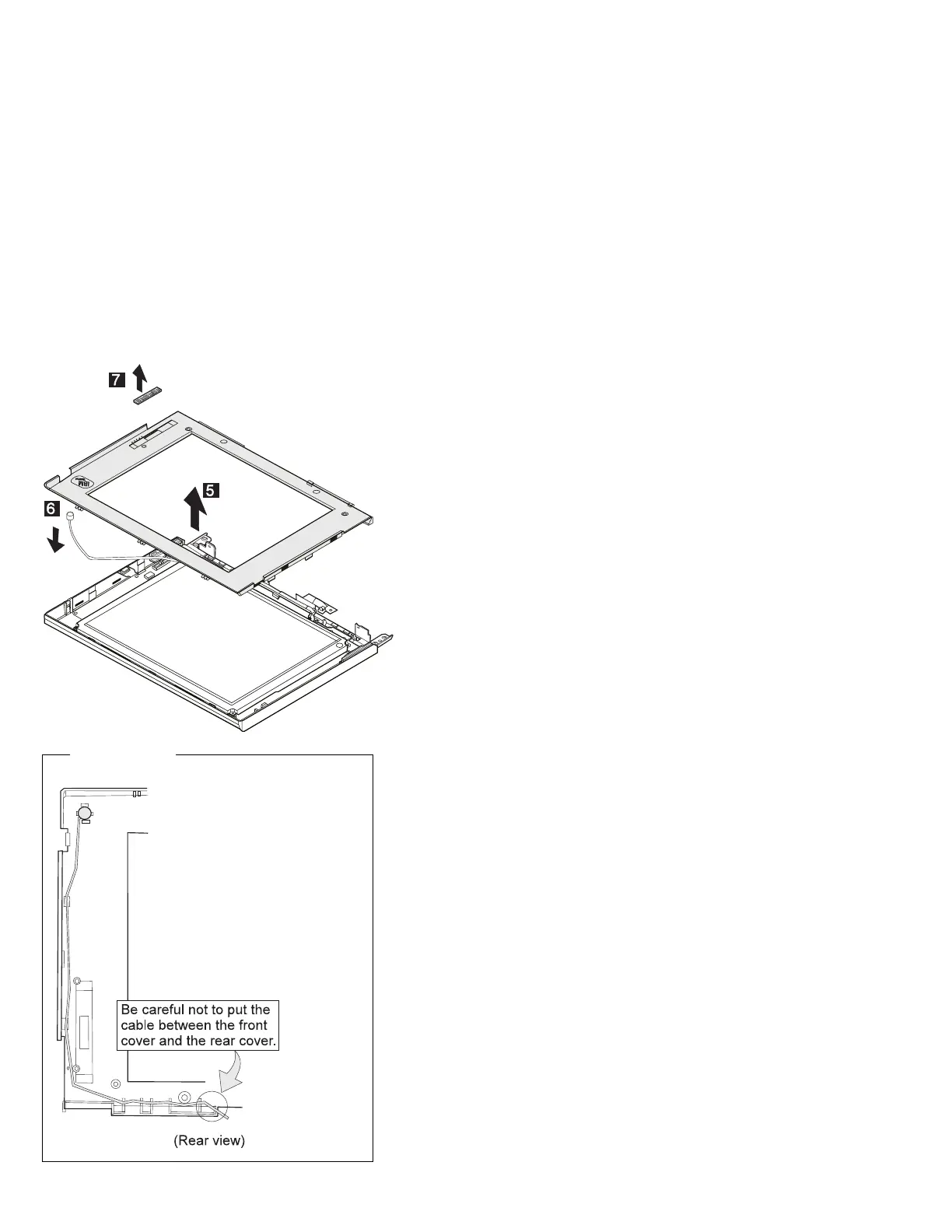

Lift the LCD front cover a bit; then remove the microphone
cable.
When replacing
Position the microphone cable as shown.below.
ThinkPad 760 (9546, 9547) 303
