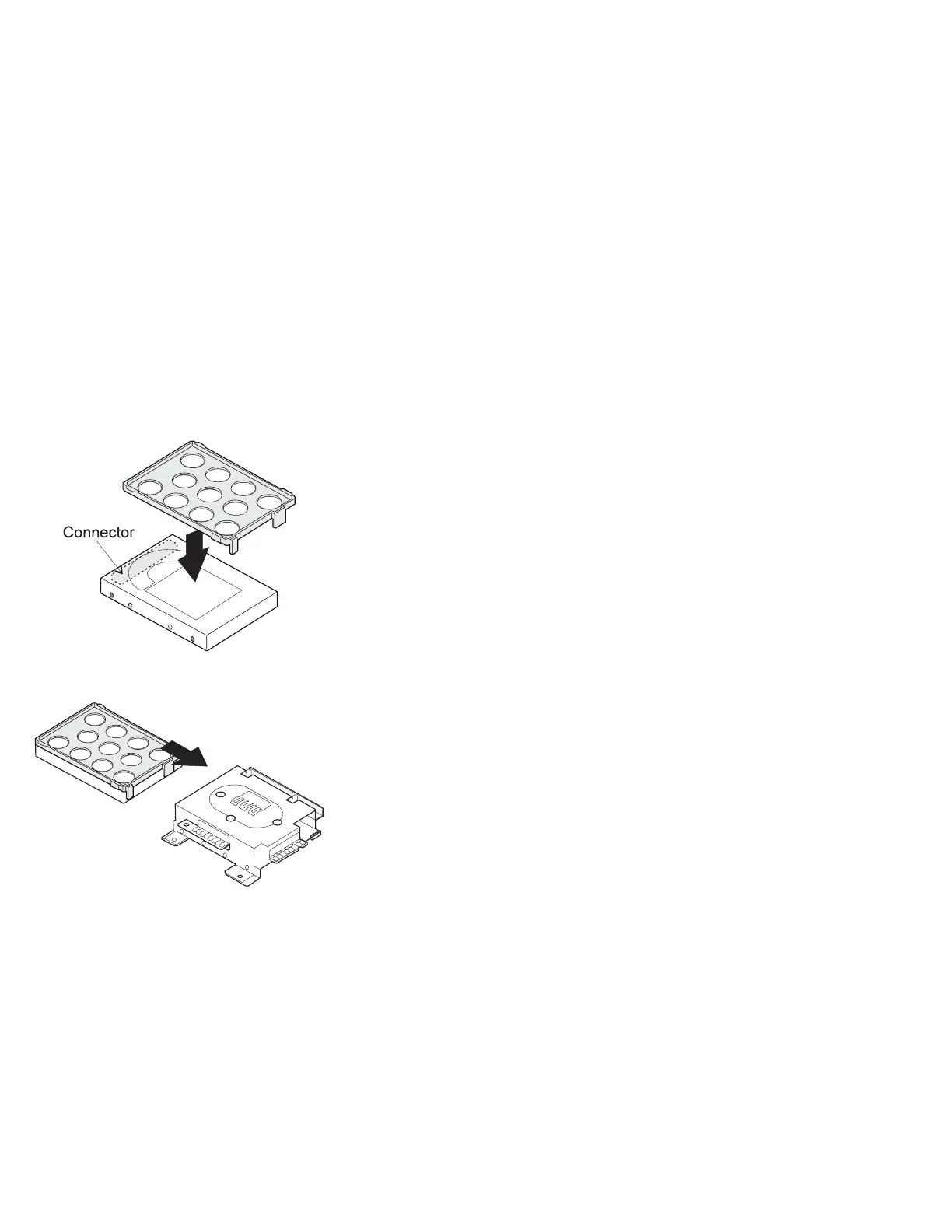

When
replacing:
When
replacing
the
slim-type
(12.5
mm)
hard
disk
drive,
assemble
the
spacer
as
follows:
1.
Place
the
HDD
spacer
on
the
hard
disk
drive.
Note:
Make
sure
that
the
spacer
is
oriented
properly.
2.
Install
the
HDD-spacer
assembly
into
the
bracket;
then
screw.
74
IBM
Mobile
Systems
HMM
86
88
