Rev 2015-03-02 10
GV10x OPERATION AND SAFETY MANUAL
Note: The Source models P3, P4, and P5 each can be configured with one of two
types of vacuum flanges to enable mounting the Source to an ashing chamber (for
specimens / samples) or directly to laboratory equipment. The P3 and P4 both can
accept KF40 and CF (ConFlat) flanges, whereas the P5 accepts KF25 and KF40
flanges.

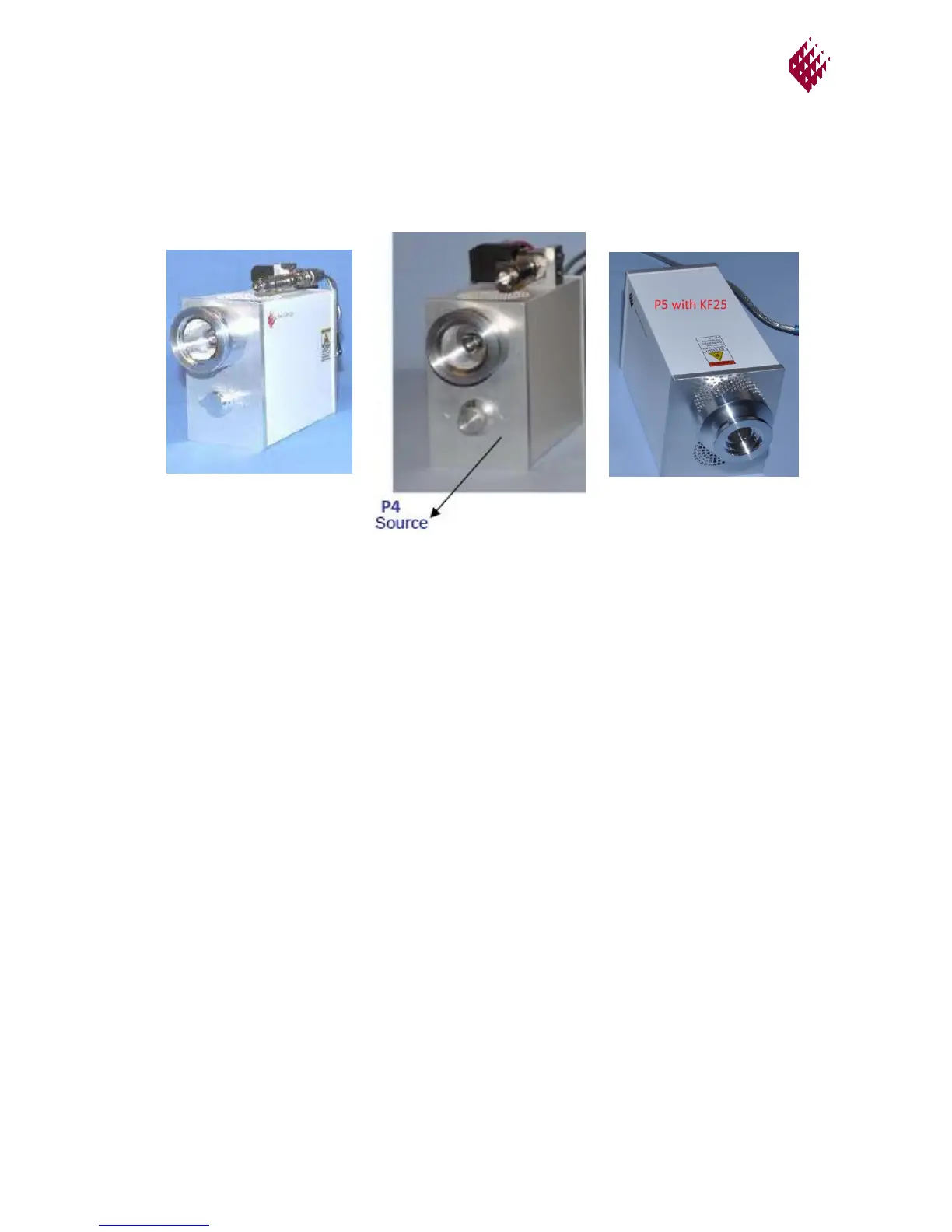

Figure 1-3. Sources P3, P4, and P5
