iCarsoft CR MAX - Power Sources

4

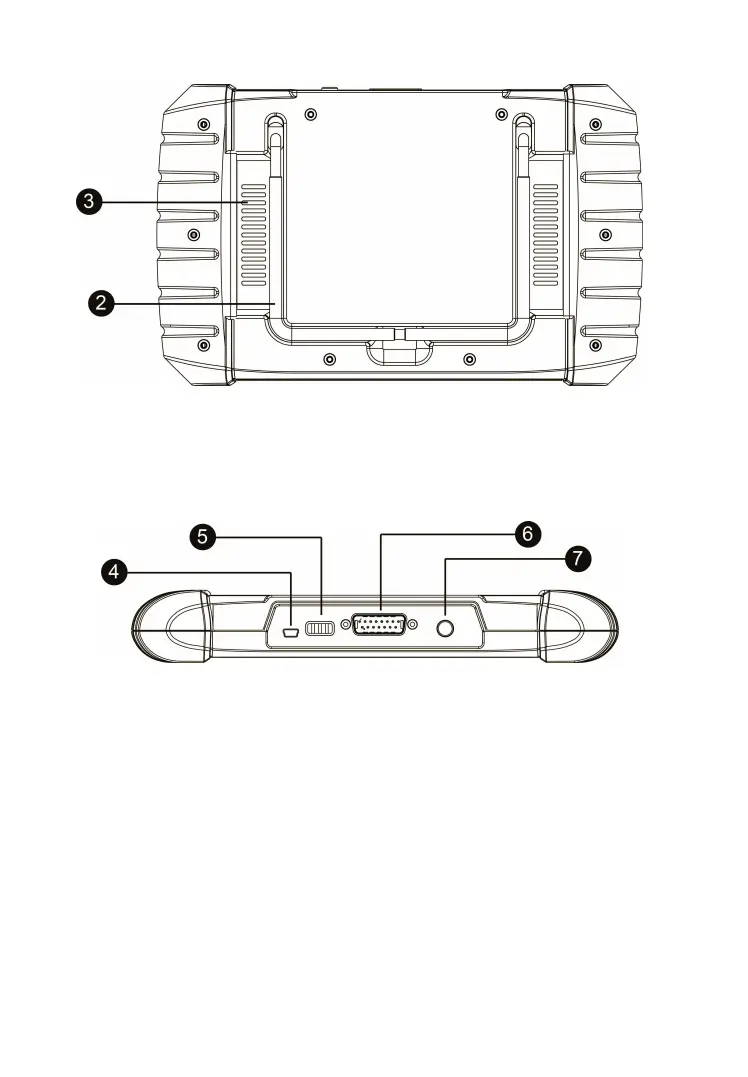

Figure 2-2 CR MAX Display Tablet Back View
2. Collapsible Stand – extends from the back to allow hands-free
viewing of the Display Tablet.
3. Heat Sink or Speaker
Figure 2-3 CR MAX Display Tablet Top View
4. Mini USB OTG Port
5.USB Host (Wireless has this interface, wired does not have this
interface)
6. DB15-Pin Port – connects the main cable.
7. Lock/Power Button – long press button to turn tablet off and on.
Quick press button to lock screen.
2.1.2 Power Sources
The Display Tablet can receive power from any of the following
sources:
