7.5-2

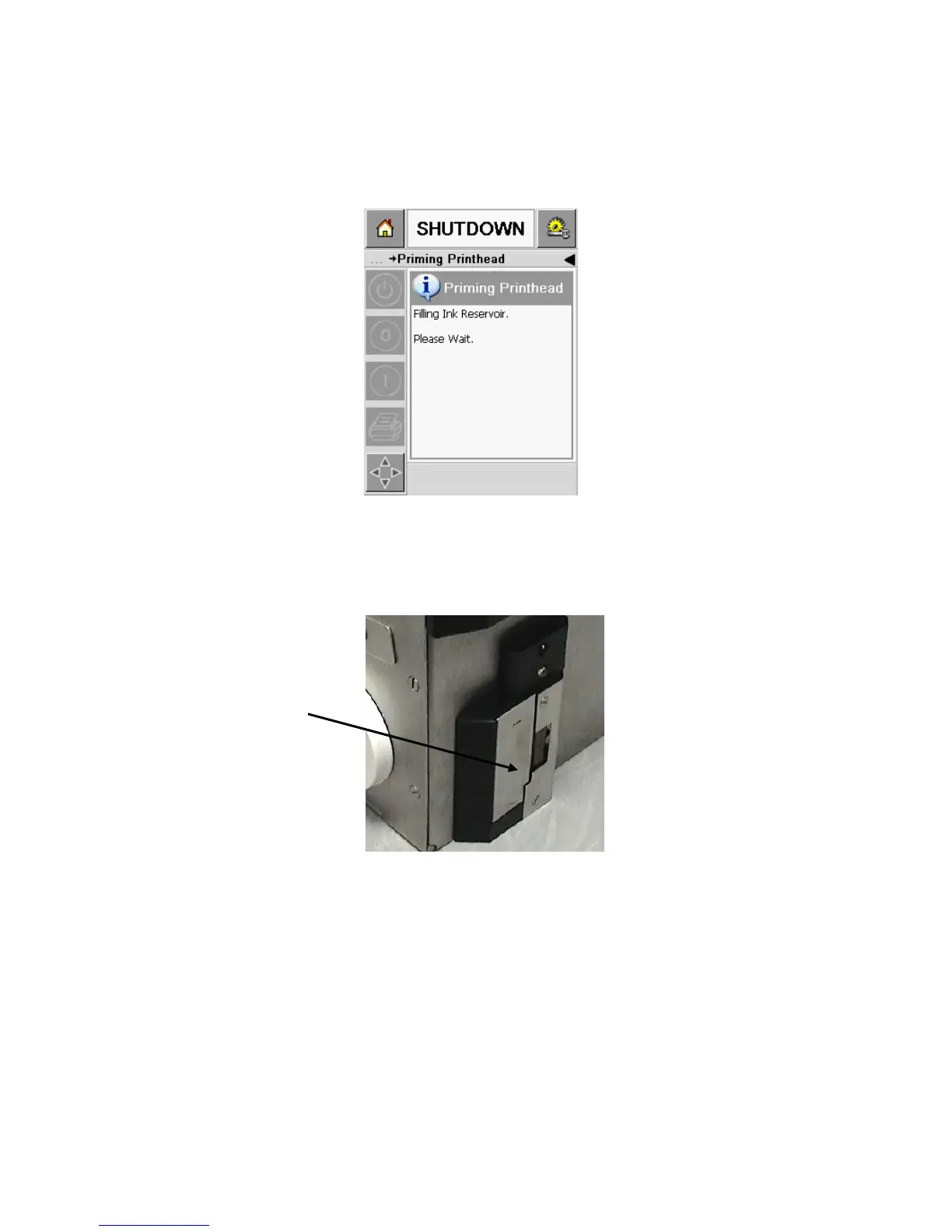

When Prime Printhead is selected, CLARiTY™ will first display the ink reservoir is filling
Figure 7.5-2
Following the instruction on CLARiTY™, remove the two screws holding the front cover,
indicated below, from the printhead front plate
Figure 7.5-3
Remove cover
