Ice Torus 126 - Page 41

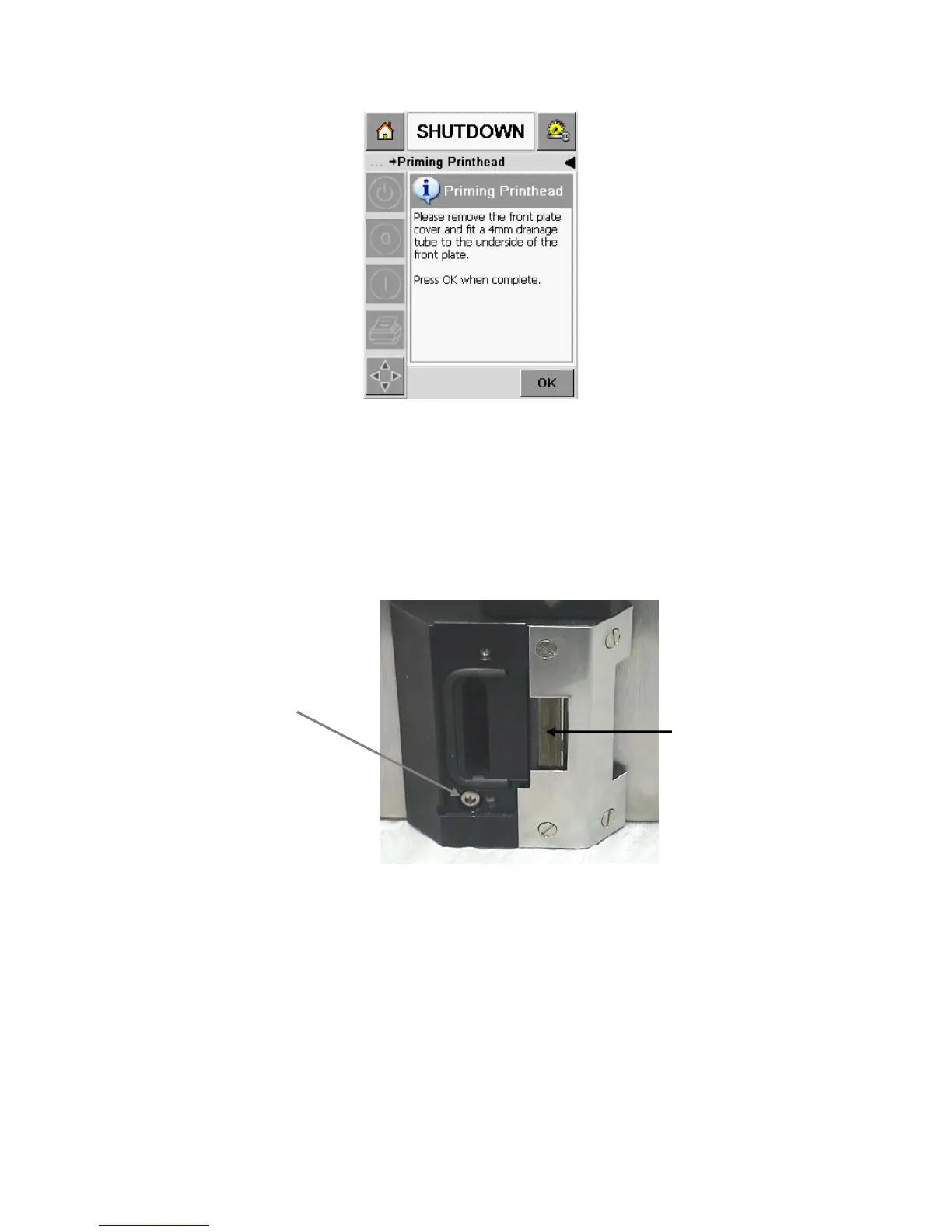

7.5-3
Drainage Screw
Figure 7.5-4
Access the drainage screw, shown below and unscrew by three turns, as shown and as
instructed on CLARiTY™,
PLEASE NOTE: Care should be taken to avoid contact with the printhead jetting face, shown
in Figure 7.5-5 below.
Figure 7.5-5
Printhead ‘Jetting
Face’
