OPERATING GUIDE
iR3 ■ BASIC OPERATION q Push [POWER] for 2 sec. w Push [↕] to set the desired audio
level.
e Select VFO mode with [V/M]. r Select the desired band with [↔]. t Rotate [DIAL] to change the fre-
quency.
•The frequency changes according to
the preset tuning steps.
y Set the squelch level.
•While pushing [SQL], rotate [DIAL]. •The first click of [DIAL] indicates the
current squelch level.
•“LEVEL1” is loose squelch and
“LEVEL9” is tight squelch.
•“AUTO” indicates automatic level ad-
justment.
t When a signal is received:
•Squelch opens and audio is emitted
from the speaker.
•The S/RF indicator shows the relative
signal strength.
◊ Using the dial select step (p. 39) Rotate [DIAL] while pushing [FUNC] to change the frequency in 100 kHz, 1 MHz or 10 MHz steps. ■ DUPLEX OPERATION q Set the receive station frequency
(e.g. repeater output frequency).
w Set the shift direction of the trans-
mit station frequency in set mode. (–DUP or DUP)
e Push and hold [SQL] to monitor
the transmit station’s frequency.
◊ Tone scan (p. 30) Push [FUNC] + [↔] for 2 sec. to start the tone scan.
■
MEMORY CHANNEL SELECTION
q Push [V/M] to select memory
mode.
•“M:” or “X” appears.
w Select a memory channel with
[DIAL].
e Rotate [DIAL] while pushing
[FUNC] to select the memory bank.
■ MEMORY CLEAR q Select the desired memory chan-
nel.
w Select VFO mode with [V/M] and
push [V/M] for 1 sec. to indicate the channel.
e Push [FUNC] + [V/M] for 2 sec.
Important operating instructions are summed up in this and the following page
for your simple reference.

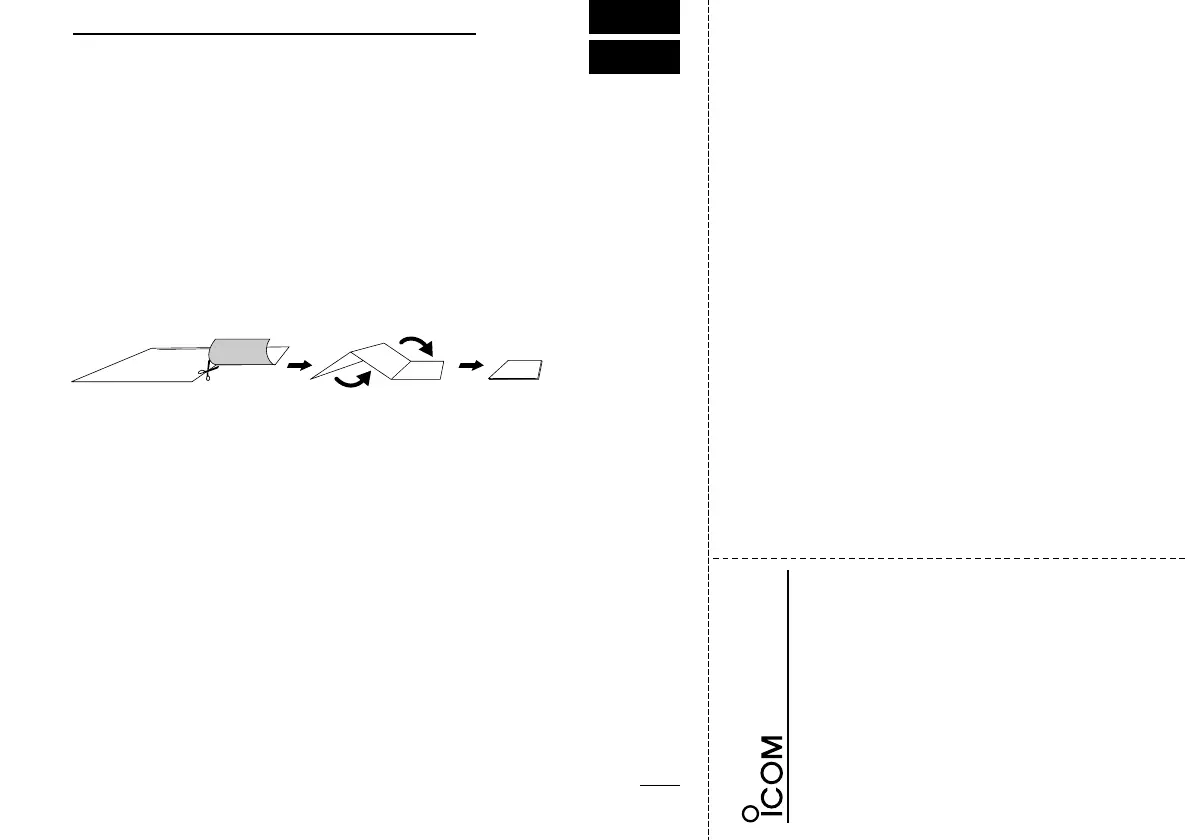

By cutting along the line and folding on the dotted line, it will become a card
sized operating guide which can easily be carried in a card case or wallet,
etc.
q Cut w Fold
e Complete
