Icom IC-905 Basic Manual

i
BASIC MANUAL
Thank you for choosing this Icom product. This
product is designed and built with Icom’s state of the
art technology and craftsmanship. With proper care,
this product should provide you with years of trouble-
free operation.
This product combines traditional analog technologies
with the Digital Smart Technologies for Amateur Radio
(D-STAR), for a balanced package.
IMPORTANT
READ ALL INSTRUCTIONS carefully and completely
before using the transceiver.
SAVE THIS INSTRUCTION MANUAL— This
instruction manual contains basic operating
instructions for the IC-905. For advanced operating
instructions, see the Advanced manual for details.
The Advanced manual is available at the following
internet address:
https://www.icomjapan.com/support/
FEATURES
• 144 ~ 5600 MHz/10 GHz* coverage
The IC-905 has 144 ~ 5600 MHz/10 GHz* coverage
with all modes.
* Optional CX-10G transverter is required.
• The separate conguration
The IC-905 consists of the controller and the RF
unit that is mounted directly under the antenna.
• RF Direct Sampling System
The IC-905 employs an RF direct sampling system.
RF signals are directly converted to digital data in
the ADC, and then processed in the FPGA. This
system is a leading technology, marking an epoch
in amateur radio.
L 1200 MHz and higher bands use a down conversion IF
sampling.
• Real-Time Spectrum Scope
The spectrum scope is class-leading in resolution,
sweep speed, and dynamic range. When you
touch the scope screen on the intended signal, the
touched area is magnied. The large 4.3 inch color
TFT touch LCD o󰀨ers intuitive operation.
• D-STAR operation (DV/DD Mode)
The IC-905 has the D-STAR Repeater (DR)
function.
• A 4.3 inch touch panel color display
• Multi-function control for easy settings
• ATV (Amateur TV) in the analog FM mode
L You cannot transmit to or receive from the conventional
transceivers (IC-1271A/IC-1271E/IC-1275A/IC-1275E)
in the ATV mode. Only ATV in the analog AM mode is
compatible with them.

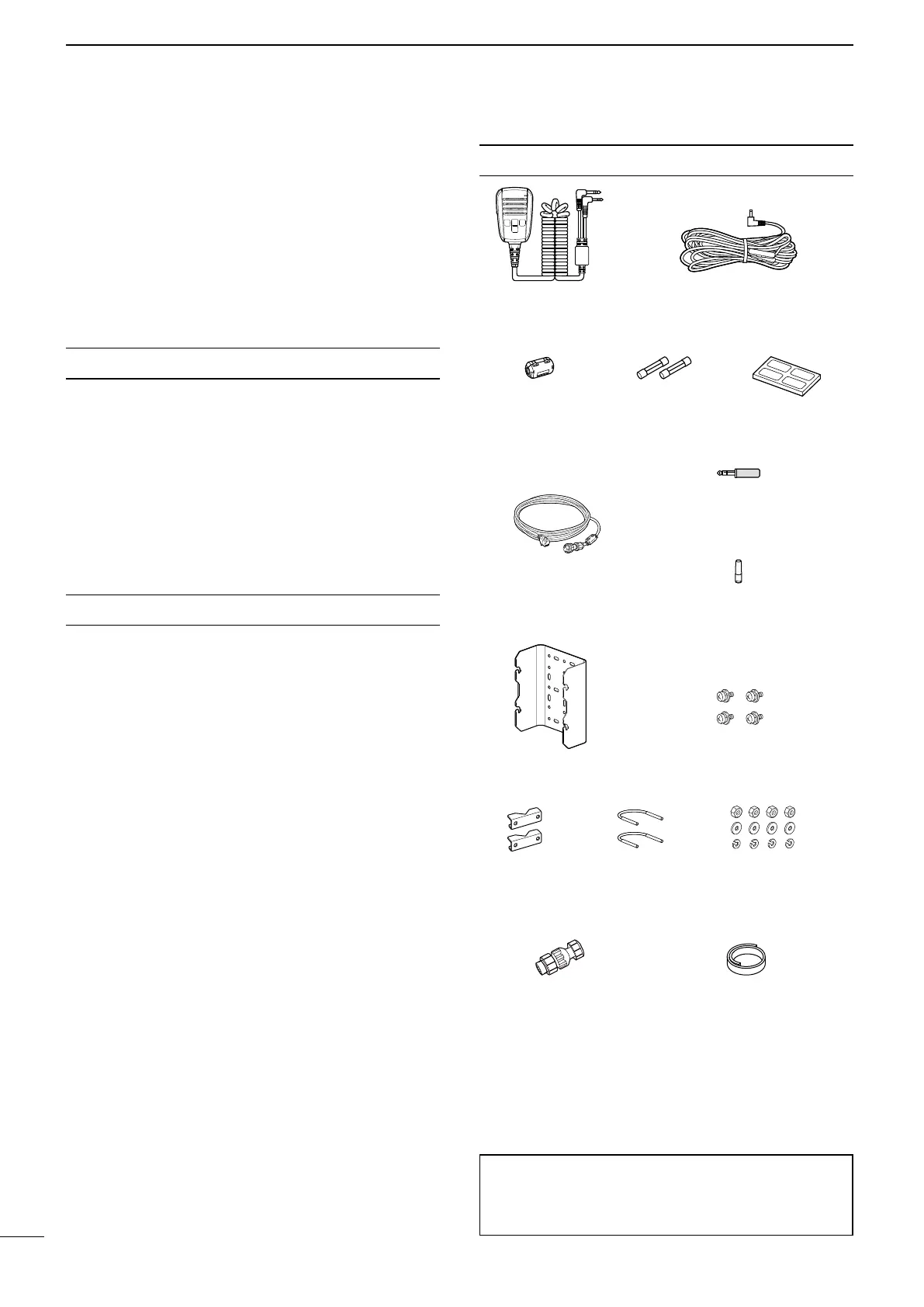

SUPPLIED ACCESSORIES
L Some accessories are not supplied, or the shape is
di󰀨erent, depending on the transceiver version.
Speaker microphone
(0.8 m: 2.6 ft)
DC power cable
(1.5 m: 4.9 ft)
CW key plug
( 3.5 mm: 1/8 inch stereo)
Spare fuse
(250 V/8 A)
Cushion Sheet
Control cable for connecting
Controller and RF unit
(5 m: 16.4 feet)
U-boltsPole clamps
GPS antenna
Assembled screws for bracket
(6 × 15 mm)
Bracket
Accessory connector
Screws and washers
for attaching to a pole
Rubber vulcanizing tape
Ferrite EMI lter
About weld lines
This product’s surfaces may have streaks called
“weld lines,” that occur during the molding process,
and are not cracks or aws.

Icom IC-905 Specifications

General

LAN Port	Yes
Power Supply	13.8 V DC
Modes	FM, SSB, CW, AM
Display	4.3-inch color TFT touch screen
GPS	Yes
USB Port	Yes
Antenna Connector	N-type
