BASIC OPERATION
■ Channel comments
The channels can be labelled with a unique alphanumeric ID
of up to 10 characters.
Capital letters, small letters, 0 to 9, some symbols (/ . –) and
space can be used.
q Select the desired channel.
 •CancelDualwatch,Tri-watchorScaninadvance.

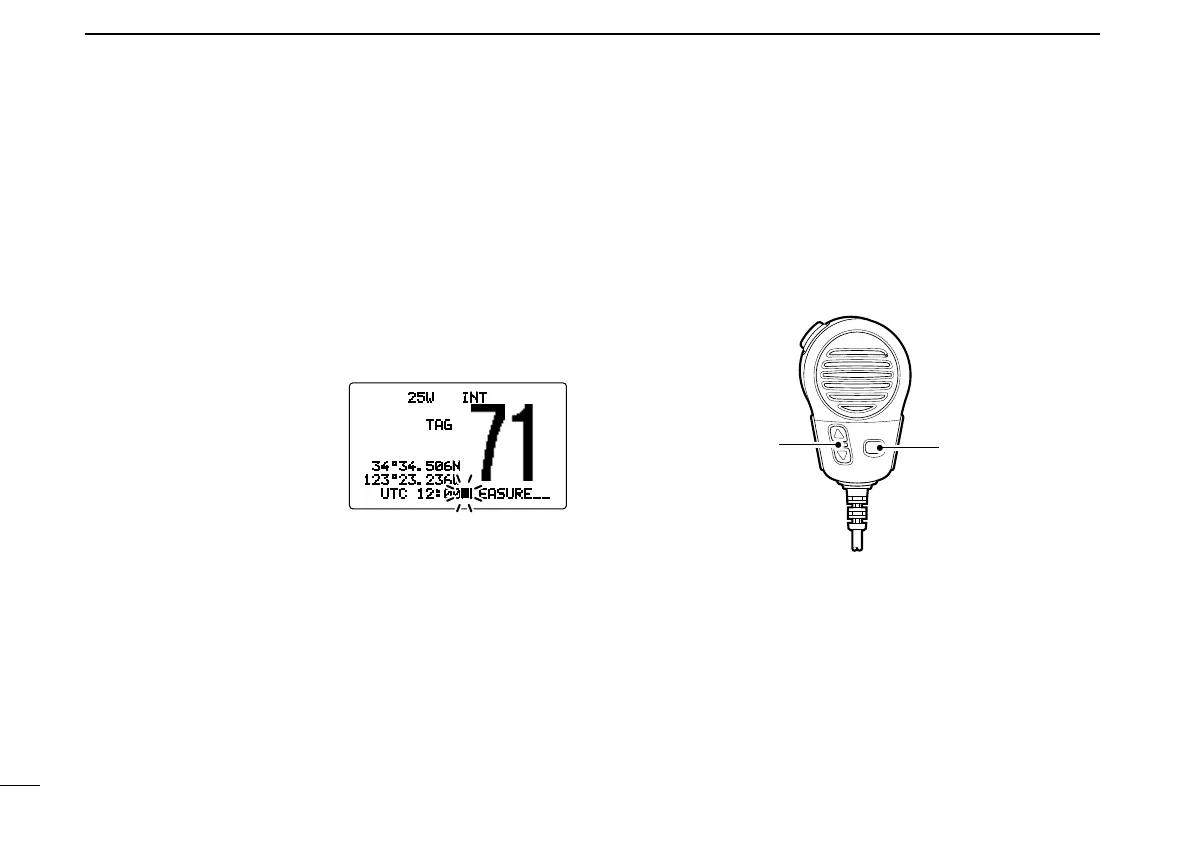

w While pushing and holding [H/L], push [16•C] to edit the
channel comment.
 •Acursorandtherstcharac-
ter start blinking alternately.
e Select the desired charac-
ter by rotating [CHANNEL].
 •Push[16•C] or [DIAL•DUAL/
GRP] to move the cursor for-
ward or backward, respectively.
r Repeat step e to input all characters.
t Push [CHANNEL•ENTER] to input and set the comment.
 •Push[CLR] to cancel.
 •Thecursorandthecharacterstopblinking.
y Repeat steps q to t to program other channel com-
ments, if desired.
■ Microphone Lock function
The Microphone Lock function electrically locks [Y]/[Z] and
[HI/LO] keys on the supplied microphone. This prevents ac-
cidental channel changes and function access.
➥ While pushing and holding [HI/LO] on the microphone,
turn power ON to toggle the Lock function ON or OFF.
[HI/LO]
[Y]/[Z]
■ Display backlight
The function display and keys can be backlit for better visibil-
ity under low light conditions.
➥ While pushing and holding [H/L], rotate [CHANNEL] to
adjust the brightness of the LCD and key backlight. After
adjusting, push [CHANNEL•ENTER].
 •Thebacklightisadjustablein7levelsandOFF.
25W INT
TAG
34°34.506N
123°23.236W
UTC 12:00PLEASURE__
