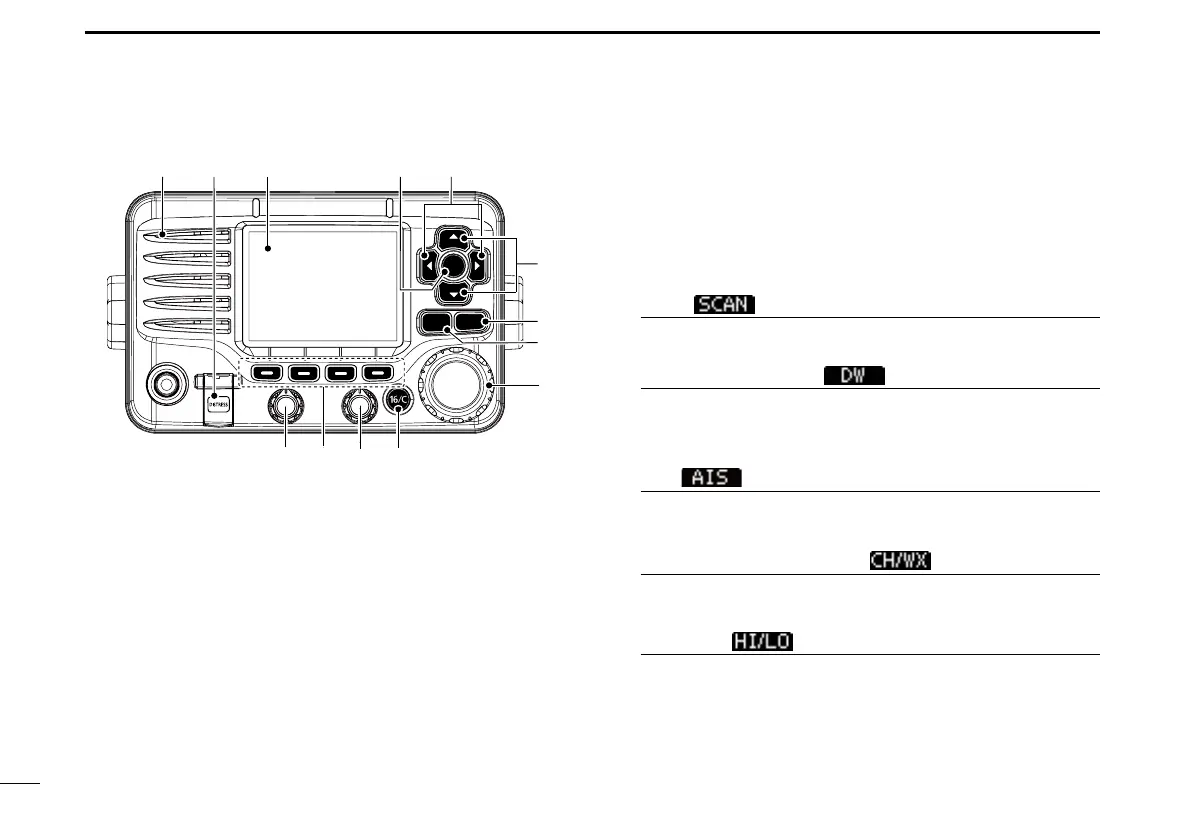

PANEL DESCRIPTION
New2001 New2001
u DIAL/POWER SWITCH [PWR]
When the power is OFF, hold down for 1 second to turn ➥
ON power.
➥ Hold down for 1 second to turn OFF power.
➥ Rotate to select the operating channels, Menu items,
Menu settings, and so on.
➥ Push to set the input data, selected item, and so on.
i CHANNEL 16/CALL CHANNEL KEY [16/C]
➥ Push to select Channel 16. (p. 9)
➥ Hold down for 1 second to select the Call channel. (p.
9
)
•The“CALL”iconappearswhentheCallchannelisselected.
o SQUELCH DIAL
Rotate to adjust the squelch level.
!0 SOFTKEYS
Desired functions as described below can be assigned in
the Menu screen. (p. 94)
Scan [
] (p. 17)
Push to start or stop a Normal or Priority scan.
Dualwatch/Tri-watch [
] (p. 18)
Push to start a Dualwatch or Tri-watch. ➥
Push to stop a Dualwatch or Tri-watch when either is ➥
activated.
AIS [
]* (p. 86)
Push to display the AIS plotter on the left side of the display.
*Some versions of IC-M506 do not have an AIS receiver.
Channel/Weather channel [ ] (pp. 9, 11)
Push to selects and toggles the regular channel and
Weather channel.
High/Low [
] (p. 11)
Push to set the power to high or low.
•Somechannelsaresettoonlylowpower.
CLEARMENU
ENT
CH
CH
t
u
y
w
e
r
i
q
o
!0!1
Function display (p. 5)
Speaker
To Next Page
