INSTALLATION
Ideal Logic Code Combi - Installation and Servicing
7

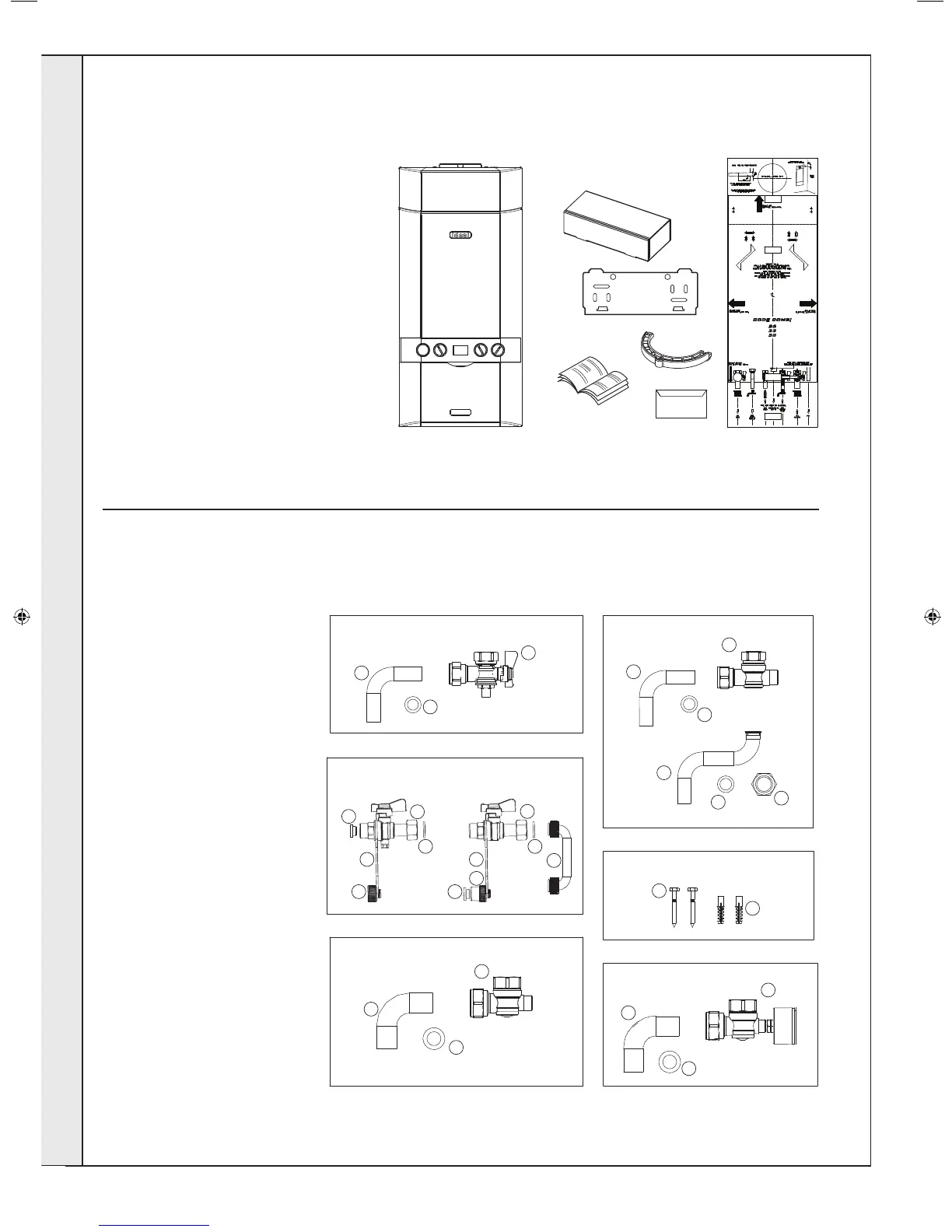

UNPACKING
Unpack and check the contents.
Pack A Contents
A Boiler
HARDWARE PACK CONTENTS
Gas Valve Pack
1. Pipe - Gas Inlet
2. Washer - Gas (blue)
3. Gas Cock
Filling Loop Pack
1. 3/8" Top Hat Washer (x2)
2. Plastic Chain (x2)
3. 3/8" Blanking Cap (x1)
4. Valve - Dbl Check Filling Loop (x1)
5. 3/8" Fibre Washer (x2)
6. 3/8" Blanking Cap Extended (x1)
7. Valve Filling Loop (x1)
8. Filling Loop with 3/8" Nuts (x1)
Return Valve Pack
1. Pipe CH Return
2. Washer CH
3. Valve Return
DHW Pack
1. Pipe DHW Outlet
2. Valve - Return DHW
3. Washer DHW (x2)
4. Pipe DHW Inlet
5. Nut 1/2"
Accessory Pack
1. Screw (x2)
2. Wallplug (x2)
Flow Valve Pack
1. Pipe CH Flow
2. Washer CH
3. Valve Flow (with gauge)
Gas Valve Pack DHW Pack
Accessory Pack
Flow Valve Pack
Return Valve Pack
Filling Loop
1
1
1
1
1
5
2
3
3
3
4
2
2
2
1
4
5 5
2 2
1
6
8
7
3
2
3
3
206279-10255
continued . . . . .
C
A
D
F
G
B
E
206279-10254
Boiler Guarantee
INSTALLATION
