IDEAL EVOMAX 2 30 Installation And Servicing

2 INSTALLATION

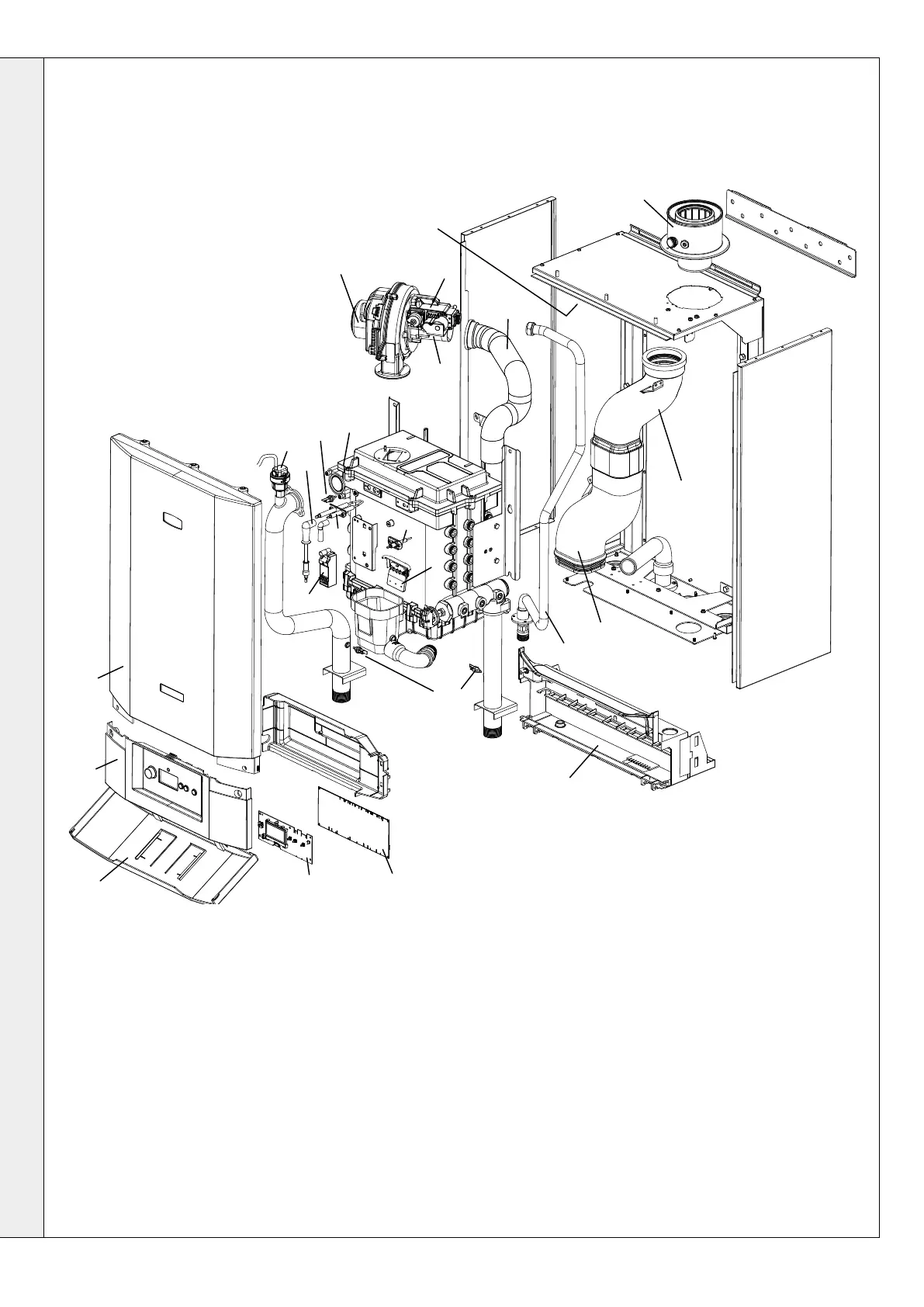

2.1 BOILER ASSEMBLY - Exploded View
306
309
310
501
308
502
301
201
325
105
302
208
301
304
305
511
230
231
512
232
Data Plate
202
203
700
80kW shown
105 Auto Air Vent
201 Gas pipe
202 Flue manifold (lower)
203 Flue manifold (upper)
208 Burner Fixings Kit
230 Fan
231 Gas Valve Kit
232 Venturi 80kW Kit
301
Thermistor Kit
302 Lead Ignition Kit
304 Ignitor Unit
305 Electrode Detection Kit
306 Ignition Electrode Kit
308 Fascia Plastic
309 System Manager Board
310 Primary PCB
325 Bulkhead
501 Jacket Assembly Kit
502 Door Assembly Kit
511 Non Return Valve Assembly
512 Air Inlet Damper
700 Flue Adapter
