FC6A S
ERIES
MICROS
MART
U
SER
’
S
M
ANUAL
FC9Y-B1722 2-97
2: P
RODUCT
S
PECIFICATIONS
Digital Mixed I/O Module

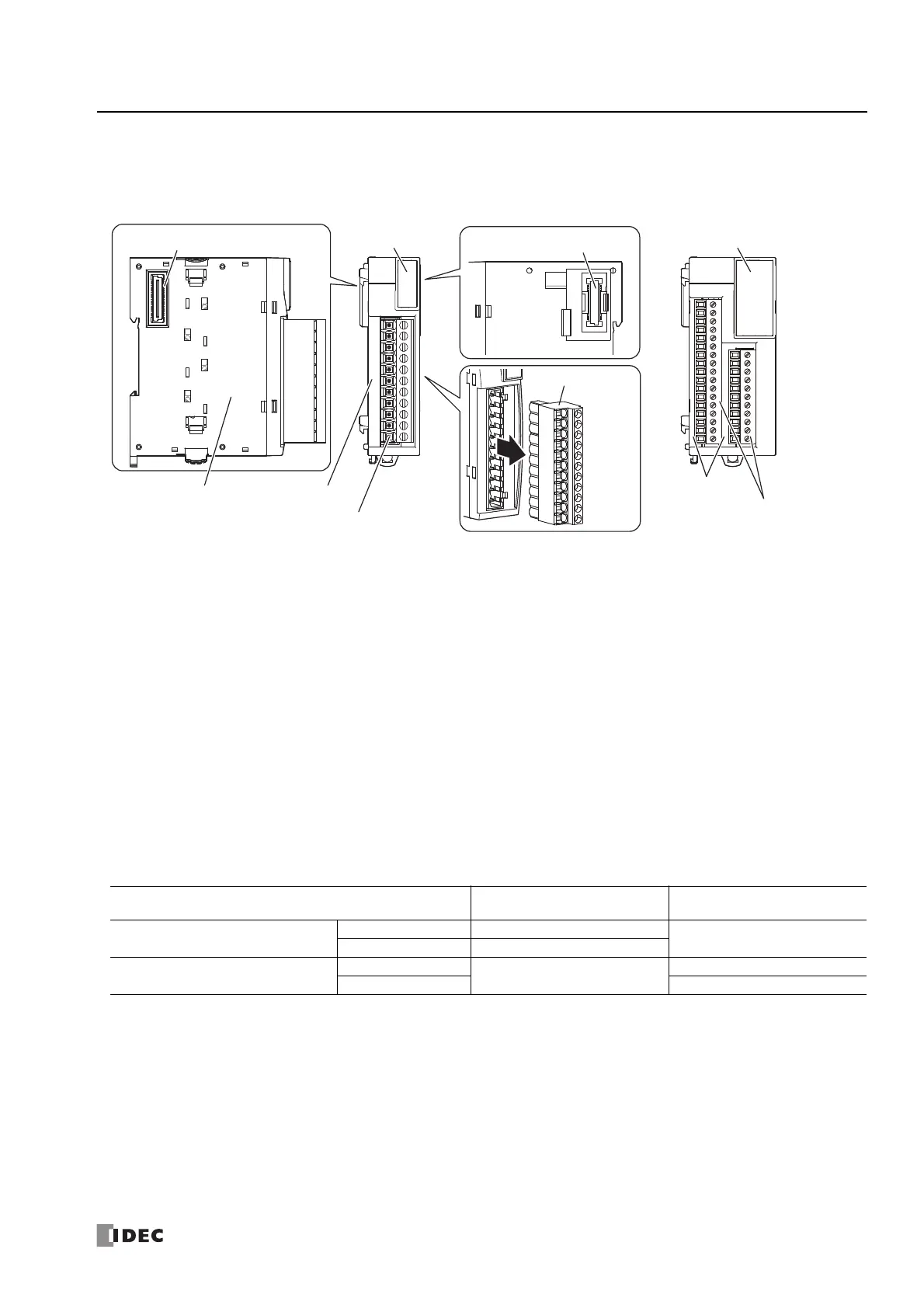

Parts Description
(1) Type Label
Indicates the digital mixed I/O module type number and specifications.
(2) Input LEDs
These LEDs turn on when an input is on.
Output LEDs
These LEDs turn on when an output is on.
(3) Terminal Name Label
Indicates terminal numbers.
(4) Cable Terminal
Two types of terminals are separately available: the terminal block type (3.81 mm pitch) and the terminal block type (5.08
mm pitch).
(5) Expansion Connector
Connects the expansion modules and the CPU module.
Model List
Example: FC6A-M08BR1 Example: FC6A-M24BR1
Cable Terminal Type
DC Input 4 Points/
Relay Output 4 Points
DC Input 16 Points/
Relay Output 8 Points
Terminal block type (5.08 mm pitch)
Screw fastened type FC6A-M08BR1
―
Push-in type FC6A-M08BR4
Terminal block type (3.81 mm pitch)
Screw fastened type
―
FC6A-M24BR1
Push-in type FC6A-M24BR4
(2) Input LEDs
Output LEDs
(2) Input LEDs
Output LEDs
(5) Expansion Connector
(5) Expansion Connector
(3) Terminal Name Label
(4) Cable Terminal
(1) Type Label
(4) Cable Terminal
(4) Cable Terminals
(3) Terminal Name Labels
To Next Page
