2: P RODUCT S PECIFICATIONS
2-98 FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722

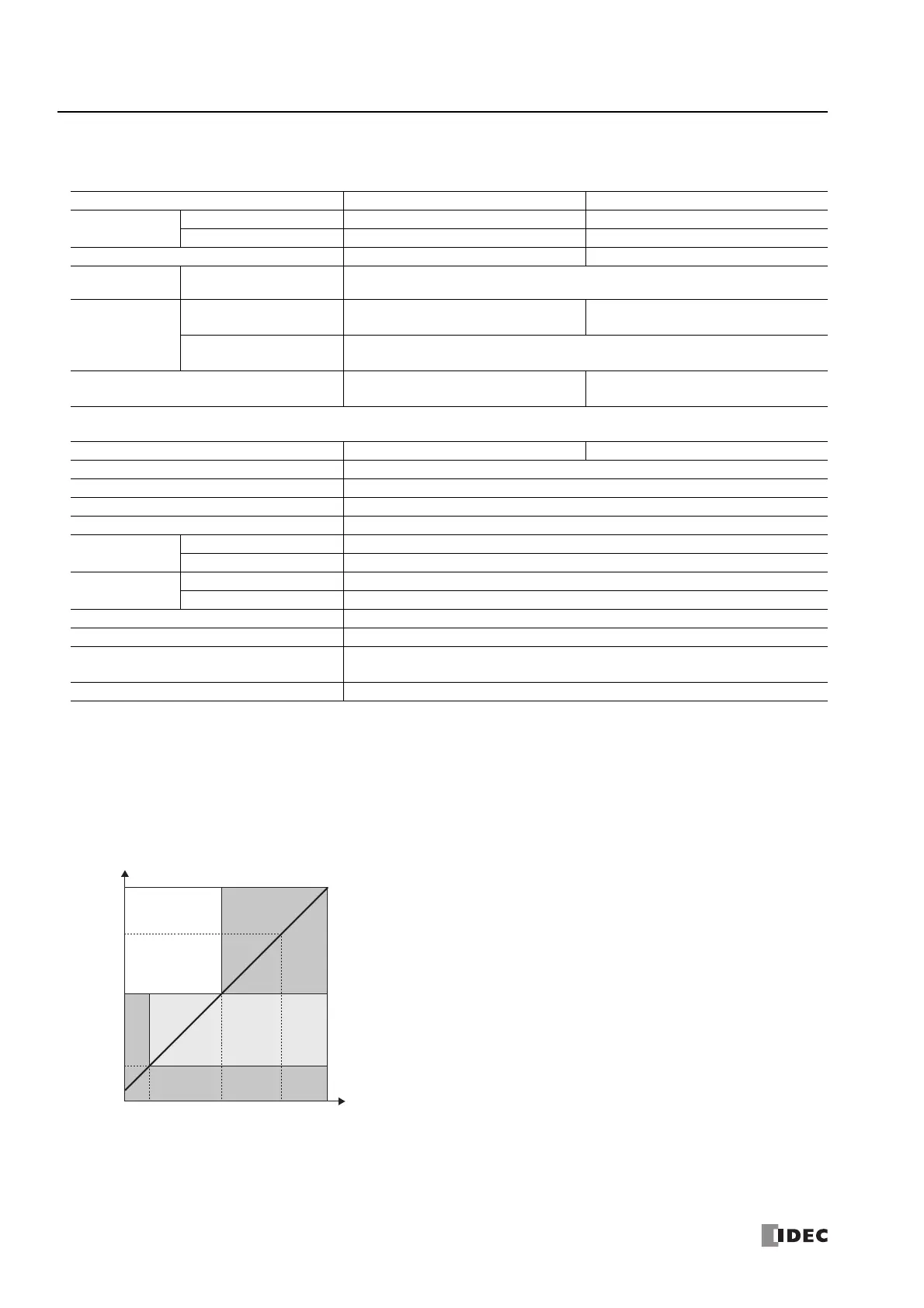

Function Specifications
■ Power Supply Specifications
■ Input Specifications
*1 24V DC for products with a version number lower than V400. For details on the version number of modules, see "Checking the Version Number"
on page 2-1.
Operating Ranges
The operating range of Type 1 (IEC 61131-2) DC input modules is as follows.
*2 15 V for products with a version number lower than V400. For details on the version number of modules, see "Checking the Version Number" on
page 2-1.
*3 4.2 mA for products with a version number lower than V400. For details on the version number of modules, see "Checking the Version Number"
on page 2-1.
Type No. FC6A-M08BR1, FC6A-M08BR4 FC6A-M24BR1, FC6A-M24BR4
Points
Input Points 4 (4 points in 1 common line) 16 (16 points in 1 common line)
No. of Outputs 4 (4 points in 1 common line) 8 (4 points in 1 common line)
Terminal Arrangement See 2-101 See 2-103
Connector
Insertion/Removal
Durability
100 times minimum
Internal
Current Draw
All Points ON
30 mA (5V DC)
25 mA (24V DC)
55 mA (5V DC)
50 mA (24V DC)
All Points OFF
17 mA (5V DC)
0 mA (24V DC)
Weight (approx.)
FC6A-M08BR1: 120 g
FC6A-M08BR4: 100 g
FC6A-M24BR1: 165 g
FC6A-M24BR4: 155 g
Type No. FC6A-M08BR1, FC6A-M08BR4 FC6A-M24BR1, FC6A-M24BR4
Rated Input Voltage 12/24V DC
*1
shared sink/source
Operating Load Voltage Range 0.0 to 28.8V DC
Rated Input Current 3.5 mA/point (at 12V DC), 7 mA/point (at 24V DC)
Input Impedance 3.4 kΩ
Input Delay
Time (24V DC)
Turn ON Time 4.1 ms
Turn OFF Time 4.1 ms
Isolation
Between Channels Not isolated
Internal Circuit Photocoupler isolated
External Load for I/O Interconnection Not needed
Signal Determination Method Static
Effect of Improper Input Connection
Even if wiring for sink or source connection is incorrect, no damages are caused.
If any input exceeding the rated value is applied, permanent damage may be caused.
Cable Length 3 m
FC6A-M08BR1, FC6A-M08BR4, FC6A-M24BR1, FC6A-M24BR4
Transition
Area
ON Area
OFF Area
2.8 mA
*3
8.4 mA
Input Current (mA)
5 V
10.2 V
*2
24 V
Input Voltage (V DC)
28.8 V
1.2 mA 7.0 mA
