2: P
RODUCT
S
PECIFICATIONS
2-100 FC6A S
ERIES
MICROS
MART
U
SER
S
M
ANUAL
FC9Y-B1722

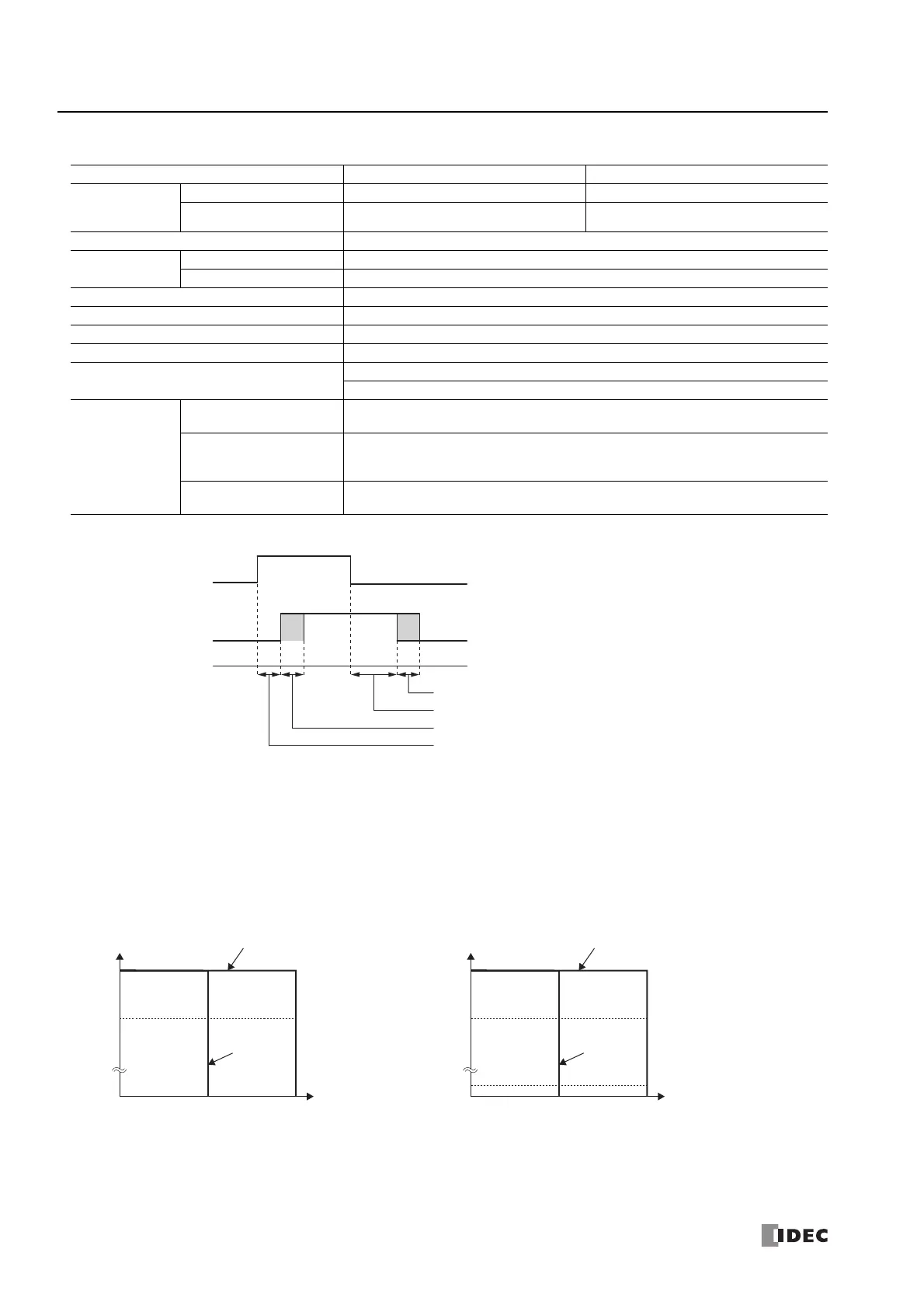

Output Specifications
Output Delay
Ambient Temperature, Input Voltage, I/O Simultaneous ON Ratio
When the FC6A Series MICROSmart is used in an ambient temperature of 55°C or higher, reduce the output voltage and I/O
utilization (simultaneous ON ratio: a%) according to the following diagrams. However, the following diagrams show the
temperature conditions when the FC6A Series MICROSmart is normally installed.
Note: Normally installed means the state in the diagram in "Normal Installation State" on page 3-1.
The usage conditions will also change according to the installation state. For details, see "Installation Location" on page 3-1.
Type No. FC6A-M08BR1, FC6A-M08BR4 FC6A-M24BR1, FC6A-M24BR4
Output Points
per Common
Line
COM1 44
COM2 4
Output Type 1a contact
Load Current
1 2 A maximum
1 Common 7 A maximum
Minimum Switching Load 1.0 mA/5.0V DC (reference value)
Initial Contact Resistance 30 m or lower
Electrical Life 100,000 operations minimum (rated load 1,800 operations/hour)
Mechanical Life 20,000,000 operations minimum (no load 18,000 operations/hour)
Rated Load
240V AC 2 A (resistive load, cosφ=0.4 inductive load)
30V DC 2 A (resistive load, L/R=7 ms inductive load)
Withstand
Voltage
Between Output
Terminal and FE
2,300V AC 1 minute
Between Output
Terminal and Internal
Circuit
2,300V AC 1 minute
Between Output
Terminals (COMs)
2,300V AC 1 minute
FC6A-M08BR1, FC6A-M08BR4, FC6A-M24BR1, FC6A-M24BR4
OFF Bounce: 6 ms maximum
OFF Delay:
10 ms maximum
ON Bounce: 6 ms maximum
ON Delay:
6 ms maximum
Input to Relay
Output Relay Status
ON
OFF
ON
OFF
I/O Simultaneous
ON Ratio (%)
100%0%
100V AC
0 V
Output Voltage
240V AC
Ambient
Temperature 55°C
50%
Ambient
Temperature
65°C
I/O Simultaneous
ON Ratio (%)
100%0%
0 V
Output Voltage
30V DC
24V DC
5V DC
Ambient
Temperature 55°C
50%
Ambient
Temperature
65°C
