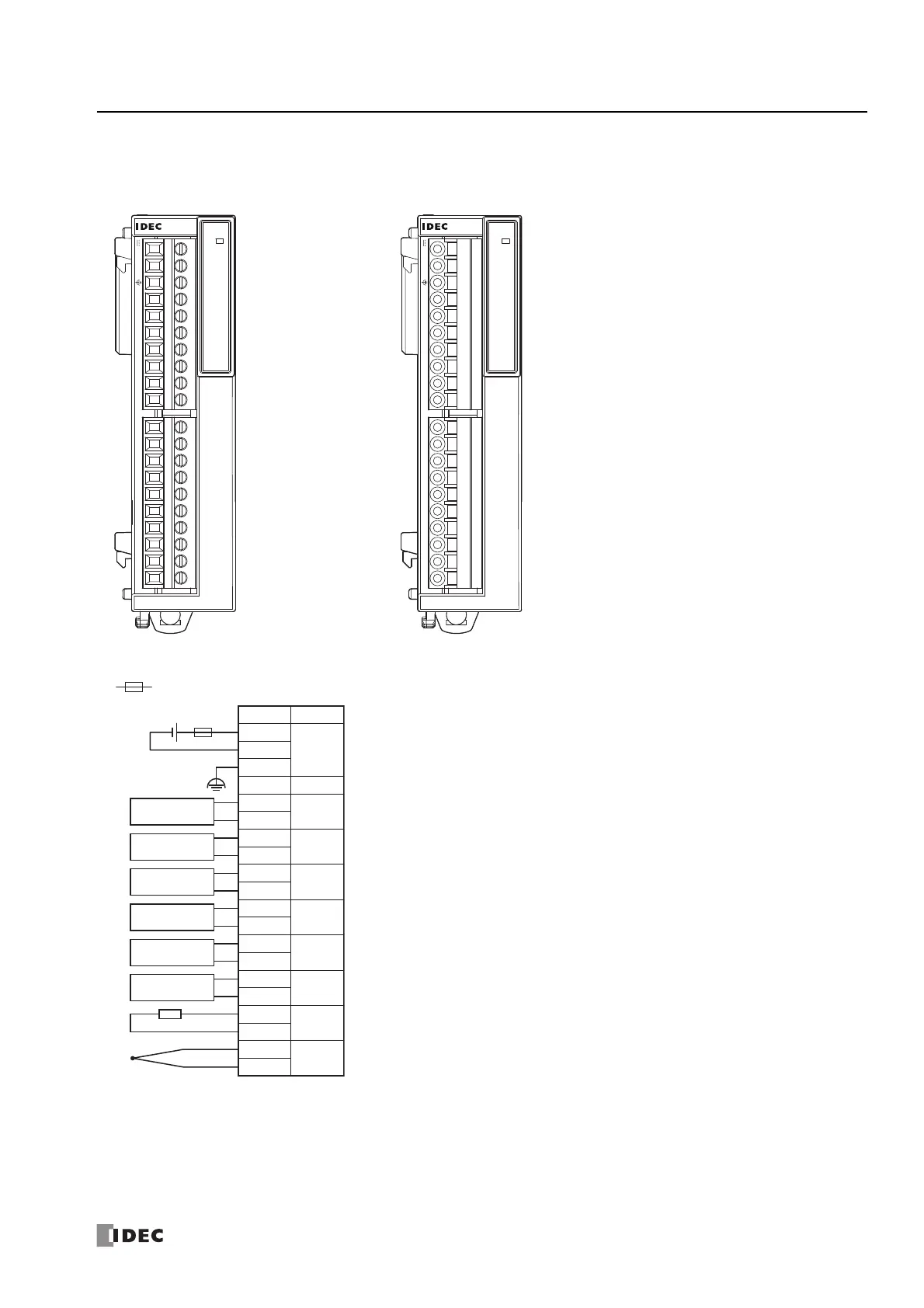

■ FC6A-J8CU1, FC6A-J8CU4
For wiring precautions, see "Input/Output Wiring" on page 3-18.
*1 24V DC for products with a version number lower than V400. For details on the version number of modules, see "Checking the Version Number"
on page 2-1.
Screw fastened type: FC6A-J8CU1 Push-in type: FC6A-J8CU4
Applicable connector: FC6A-PMTC10PN02 Applicable connector: FC6A-PMSC10PN02
PWR
ANALOG
FC6A-J8CU1
I7- I7+ I6- I6+ I5- I5+ I4- I4+ I3- I3+ I2- I2+ I1- I1+ I0- I0+ NC 0V 24V
PWR
ANALOG
FC6A-J8CU4
I7- I7+ I6- I6+ I5- I5+ I4- I4+ I3- I3+ I2- I2+ I1- I1+ I0- I0+ NC 0V 24V
: Fuse
0V
24V
FE
NC
I1+
I1-
I0+
I0-
12/24V
DC
*1
NC
IN0
IN1
I2+
I2-
IN2
I3+
I3-
IN3
I5+
I5-
I4+
I4-
IN4
IN5
I6+
I6-
IN6
I7+
I7-
IN7
Terminal No. I/O
+
-
NTC/PTC
Thermistor
+
-
NTC/PTC
Thermistor
+
-
NTC/PTC
Thermistor
+
-
NTC/PTC
Thermistor
+
-
NTC/PTC
Thermistor
+
-
NTC/PTC
Thermistor
Thermocouple
Resistor
- +
