IDEC MICROSmart FC6A Series User Manual

2: P RODUCT S PECIFICATIONS
2-124 FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722

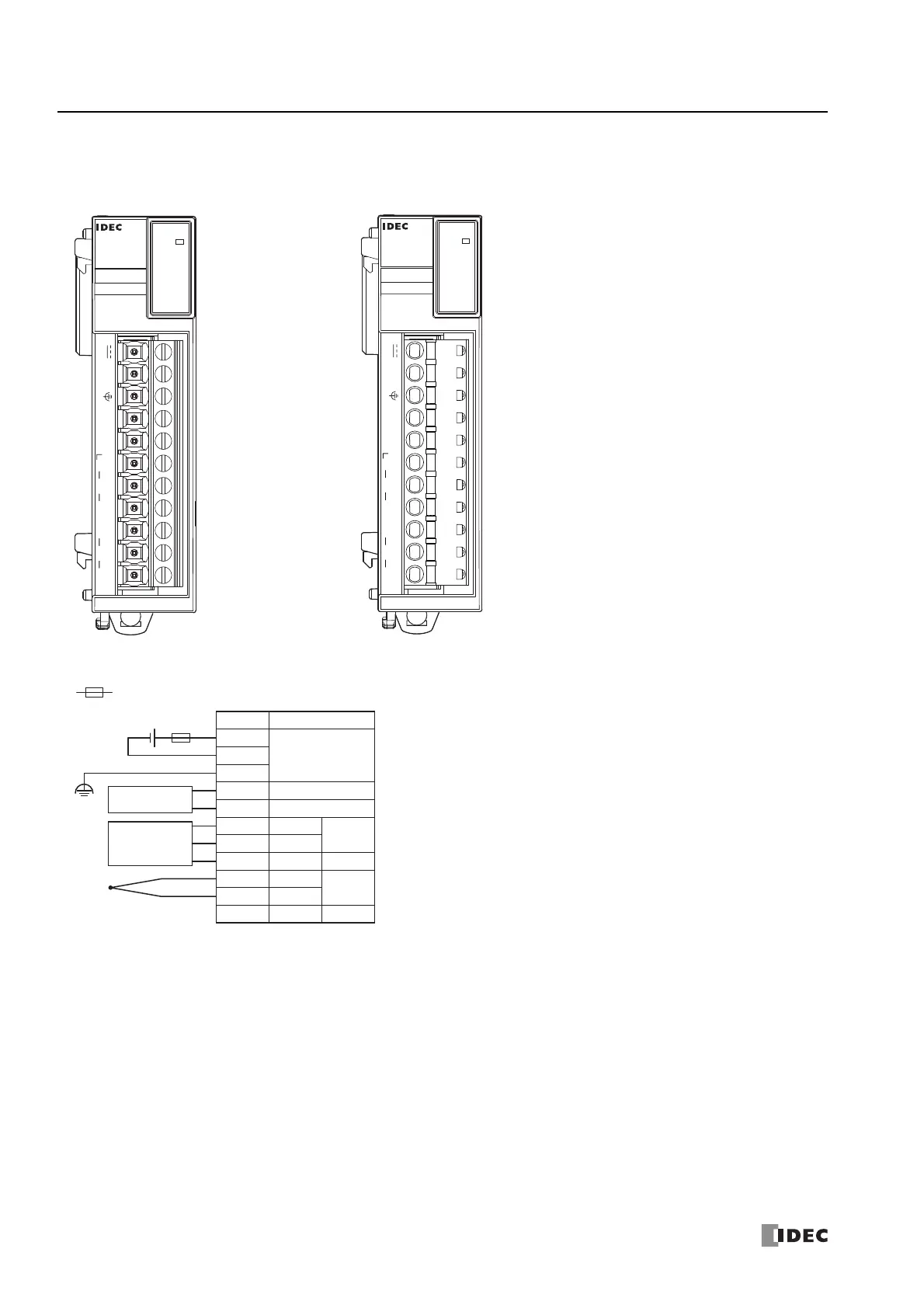

■ FC6A-L03CN1, FC6A-L03CN4
For wiring precautions, see "Input/Output Wiring" on page 3-18.
*1 24V DC for products with a version number lower than V400. For details on the version number of modules, see "Checking the Version Number"
on page 2-1.
Screw fastened type: FC6A-L03CN1 Push-in type: FC6A-L03CN4
Applicable connector: FC6A-PMTB11PN02 Applicable connector: FC6A-PMSB11PN02
FC6A-L03CN1
NC I1- I1+ NC I0- I0+
B’ B A B’ B A
Q-
RTD
Q+ 0V
24V
PWR
ANALOG
FC6A-L03CN4
NC I1- I1+ NC I0- I0+
B’ B A B’ B A
Q-
RTD
Q+ 0V
24V
PWR
ANALOG
: Fuse
0V
24V
Terminal No. I/O
FE
Q+
I1+
I1-
NC
Q-
I0+
I0-
NC
12/24V DC
*1
OUT+
NC
OUT-
B
B’
A
B
B’
A
IN0
IN1
NC
+
-
Analog Voltage/
current Input Device
A
B
B’
Resistance
Thermometer
Thermocouple
- +
