IDEC MICROSmart FC6A Series User Manual

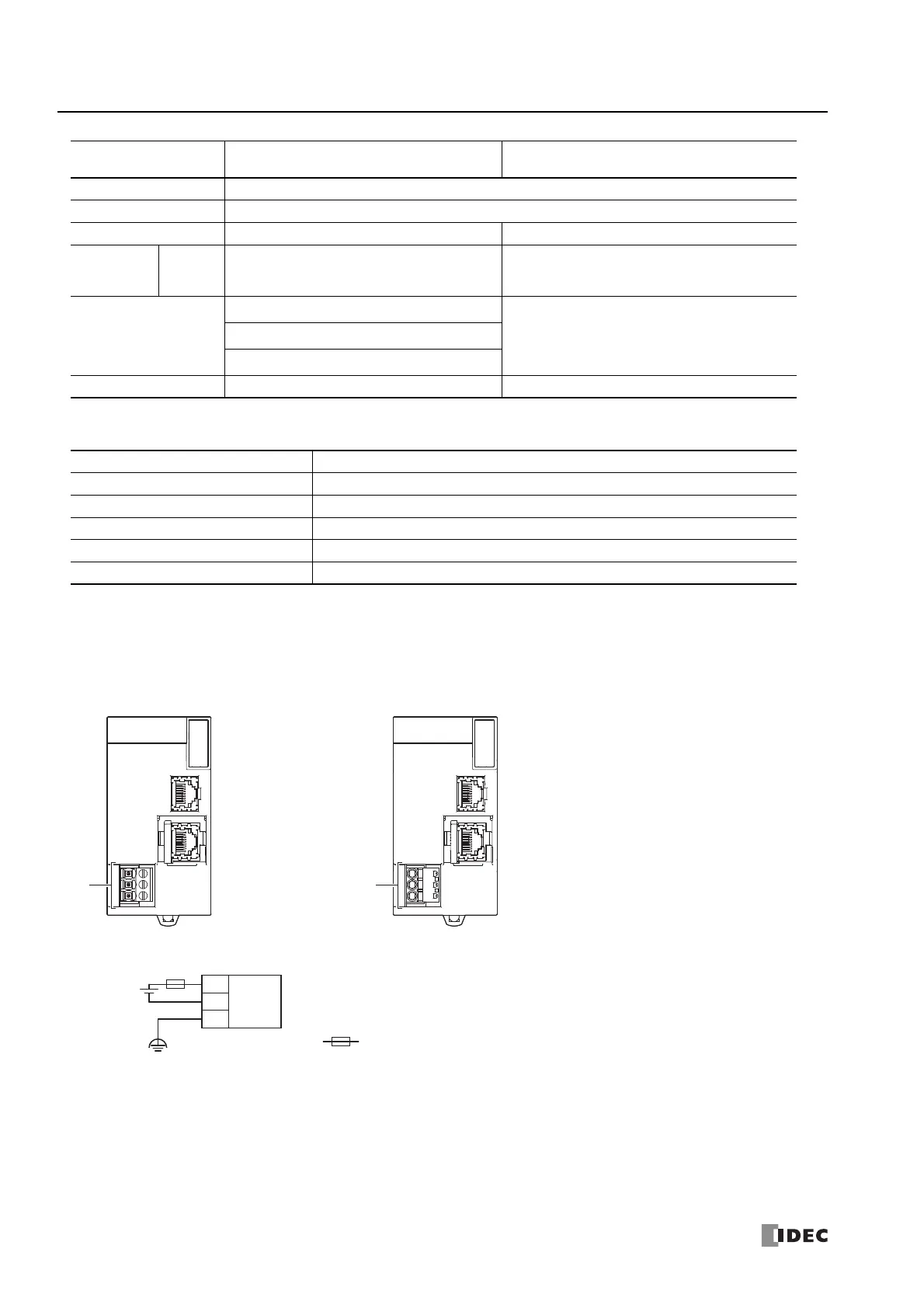

2: P RODUCT S PECIFICATIONS
2-150 FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722
Communication Port Specifications (Exp. port M, Exp. port S1, Exp. port S2)
Terminal Arrangement and Wiring Examples
■ FC6A-EXM1S, FC6A-EXM1S4 (Expansion Interface Remote Slave Module)
(1) Power supply terminals
For wiring precautions, see "Power Supply and Power Supply Wiring" on page 3-20.
Ground D-type ground (Class 3 ground)
Ground Wire See "Recommended Ferrule List" on page 3-46.
Power Supply Wire — See "Recommended Ferrule List" on page 3-46.
Power Supply
Connector
Insertion
/Removal
Durability
— 100 times minimum
Effect of Improper Power
Supply Connection
—
Reverse polarity: No operation, no damage
Improper voltage: Permanent damage may be caused
Improper lead connection: Permanent damage may be
caused
—
—
Weight (approx.) 80 g 165 g
Communication Type IEEE 802.3-compliant 100BASE-TX (Auto MDI/MDI-X supported)
Communication Protocol Dedicated communications (the modules cannot be connected to other Ethernet network)
Connector RJ45
Cable CAT 5 or higher, STP
Maximum Cable Length 100 m
Isolation between Internal Circuit Pulse transformer isolated
Screw fastened type: FC6A-EXM1S Push-in type: FC6A-EXM1S4
Applicable connector: FC6A-PMTB03PN02 Applicable connector: FC6A-PMSB03PN02
Type No.
FC6A-EXM1M
(Expansion interface remote master module)
FC6A-EXM1S, FC6A-EXM1S4
(Expansion interface remote slave module)
(1)
(1)
24V DC
Power Input
+
-
FE
-
+
External Power
24V DC
: Fuse
