2: P RODUCT S PECIFICATIONS
2-166 FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722

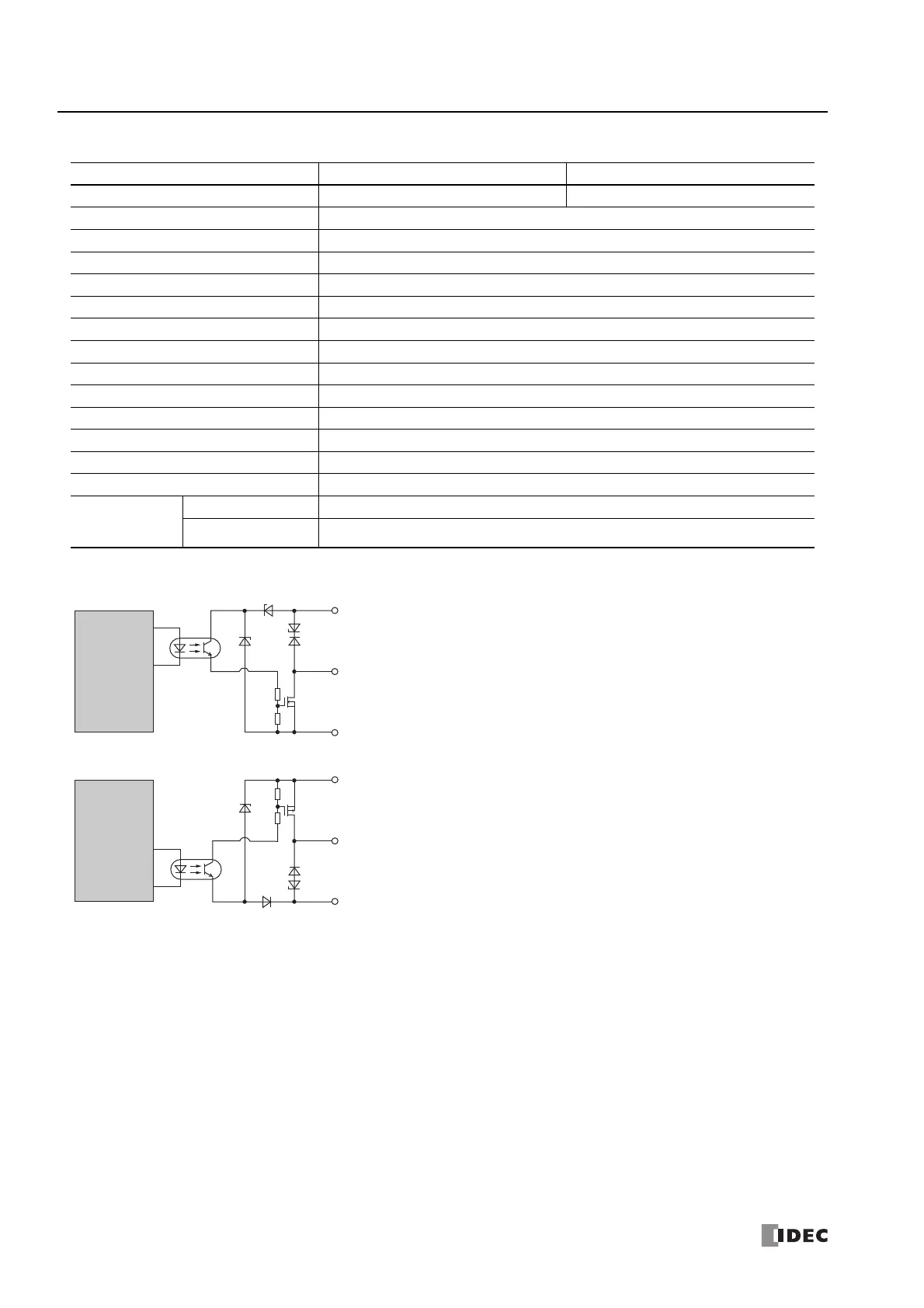

Digital Output Specifications
Output Internal Circuit
FC6A-PTK4
FC6A-PTS4
Type No. FC6A-PTK4 FC6A-PTS4
Output Signal Transistor sink output Transistor source output
Rated Load Voltage 12/24V DC
Operating Load Voltage Range 10.2 to 28.8V DC
Output Points 4 (4 points in 1 common line)
Rated Load 0.1 A/1 point
Terminal Arrangement See "Wiring Arrangement and Wiring Examples" on page 2-167.
Voltage Drop (ON Voltage) 0.4 V or less, voltage between COM and output terminal when ON
Allowed Inrush Current 1 A maximum
Leakage Current 0.1 mA maximum
Clamping Voltage 50 V
Lamp Load 2.4 W maximum
Inductive Load L/R = 10 ms (28.8V DC, 1 Hz)
Protection Operation None
External Current Draw 100 mA maximum, 24V DC (+V terminal supply power)
Output Delay
Time
(24V DC)
Turn ON Time 450 μs maximum
Turn OFF Time 450 μs maximum
V (+)
Output
COM (-)
Internal
Circuit
V (-)
Output
COM (+)
Internal
Circuit
