FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722 3-15
3: I NSTALLATION AND W IRING
Digital input modules: FC6A-N32B3
Digital output modules: FC6A-T32K3, FC6A-T32P3
Digital mixed I/O modules: Screw fastened type: FC6A-M24BR1
Push-in type: FC6A-M24BR4
PID modules: Screw fastened type: FC6A-F2M1, FC6A-F2MR1
Push-in type: FC6A-F2M4, FC6A-F2MR4
Expansion interface module (expander): Screw fastened type: FC6A-EXM2
Push-in type: FC6A-EXM24
90.0
100.0
±0.2
30.2
20.1
±0.2
2-Ø4.5

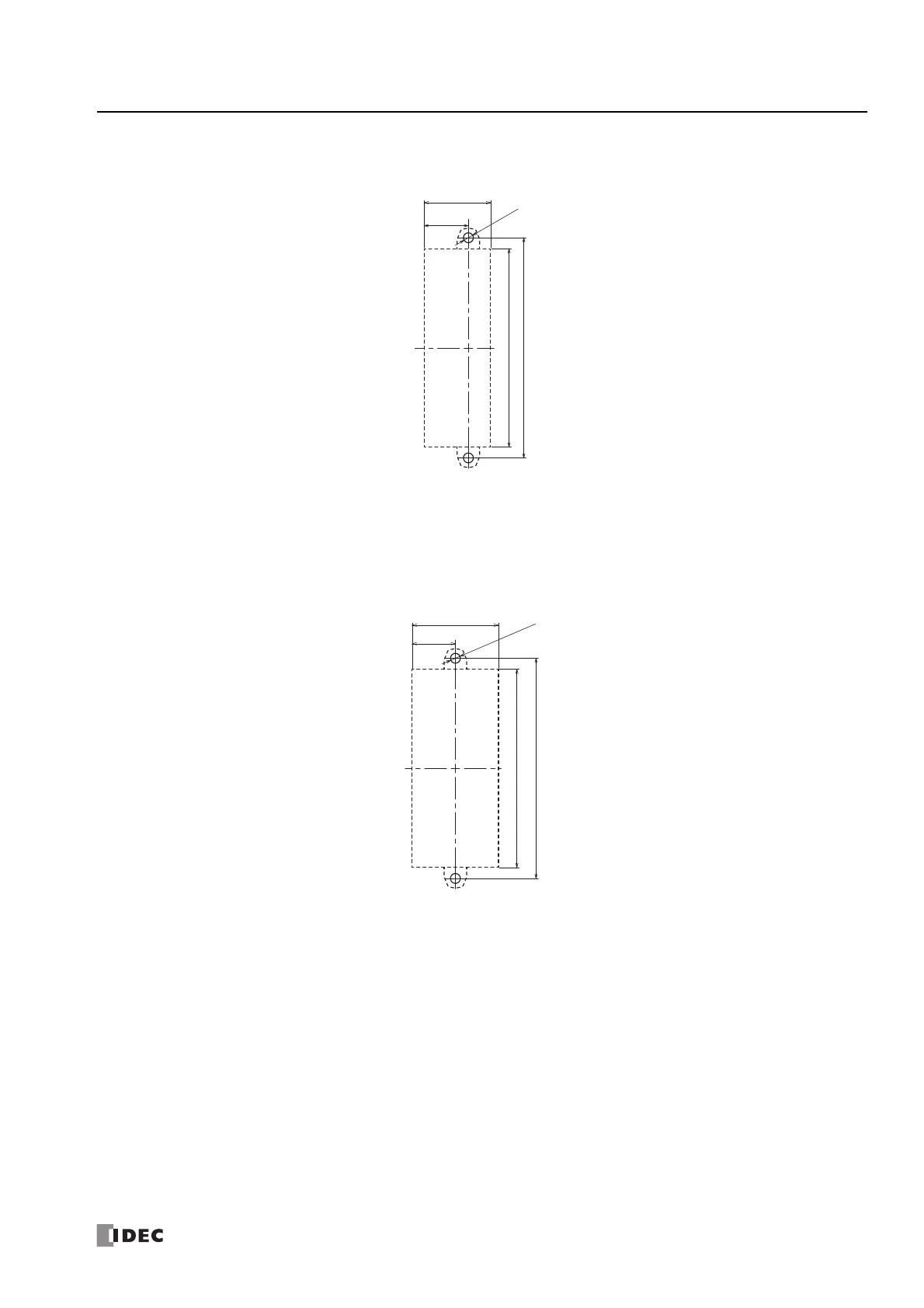

All dimensions in mm.
90.0
100.0
±0.2
39.2
19.7
±0.2
2-Ø4.5
All dimensions in mm.
