IDEC MICROSmart FC6A Series User Manual

3: I NSTALLATION AND W IRING
3-16 FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722

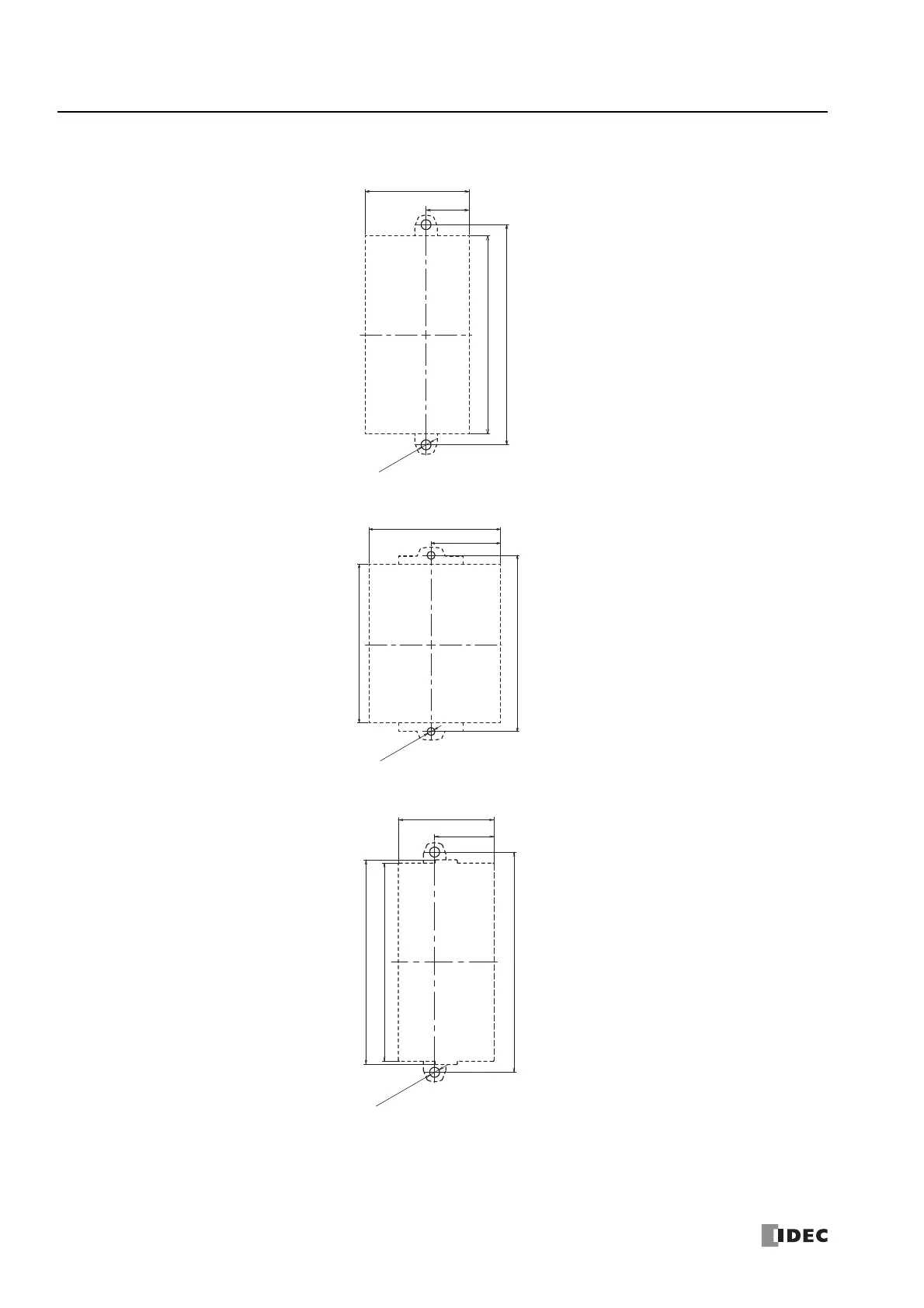

Expansion interface remote slave module: FC6A-EXM1S, FC6A-EXM1S4
HMI module: FC6A-PH1
Cartridge base module: FC6A-HPH1
90.0
100.0
±0.2
47.2
19.55
±0.2
2-Ø4.5
All dimensions in mm.
2-Ø4.5
90.0
100.0
±0.2
74.5
39.3
±0.2
All dimensions in mm.
2-Ø4.5
90.0
100.0
±0.2
43.5
27.0
±0.2
93.0
All dimensions in mm.
