(4) Filter
The analog input is filtered so it reaches approximately 99% of the analog input in the set time. Rapid fluctuations in the analog
input can be reduced by setting the filter, but increasing the filter slows down the tracking of fluctuations in the analog input.
The filter must be set for each channel.

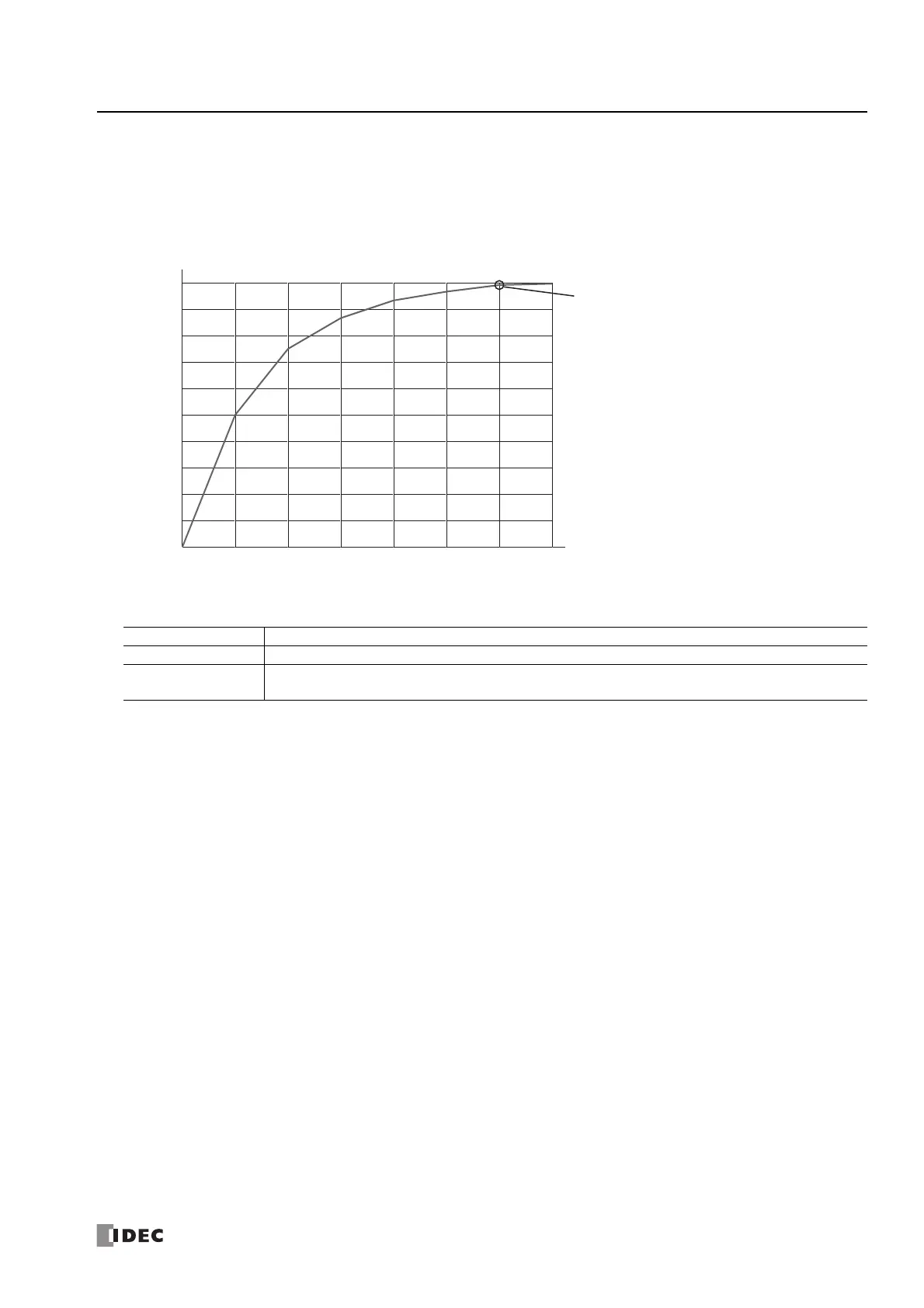

Input filter example
Filter (ms) Description
0 The value is not filtered.
50 to 50,000
The analog input filter can be set in 50 ms increments.
The analog input is filtered so that approximately 99% of the analog input is reached in the specified filter.
-20
0
Elapsed time (ms)
Filter: 100 ms
Analog input data after filtering (%)
10
20
30
40
50
60
70
80
90
100
0 20 40 60 80 100 120
Reaches approximately 99% of the analog
input in the set filter (100 ms).
