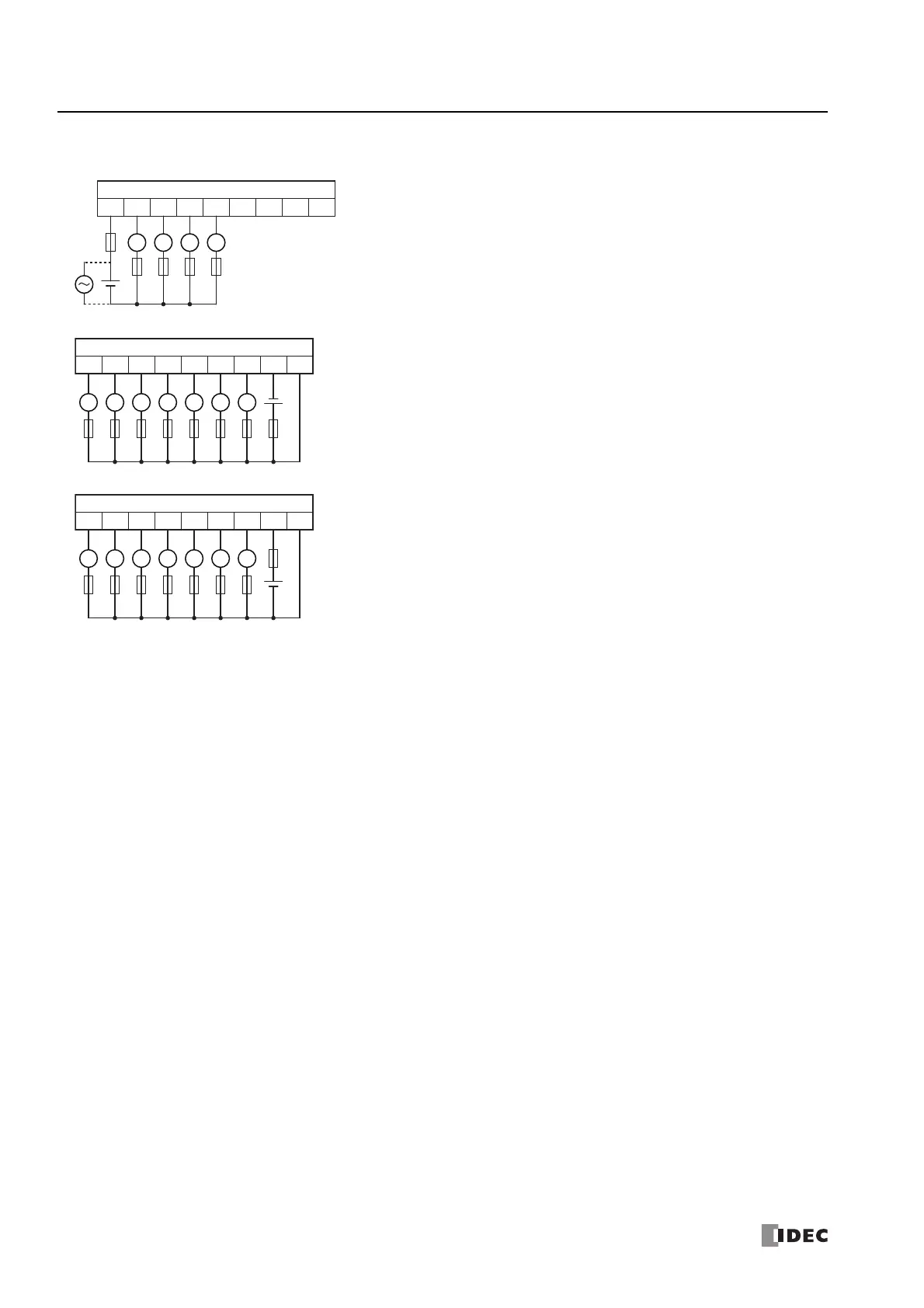

(3) Output terminals
Relay Output: FC6A-C16R1CE, FC6A-C16R4CE
Transistor Sink Output: FC6A-C16K1CE, FC6A-C16K4CE
Transistor Protection Source Output: FC6A-C16P1CE, FC6A-C16P4CE
Relay Output
Q0
Q1 Q2 Q3 COM1COM0 Q4 Q5 Q6
-
+
LLLL
Transistor Sink Output (24 V)
Q1
Q2 Q3 Q4 Q5Q0 Q6 COM0(-) V0(+)
L L L L LLL
+
-
Transistor Protection Source Output (24 V)
Q1
Q2 Q3 Q4 Q5Q0 Q6 COM0(+) V0(-)
L L L L LLL
-
+
