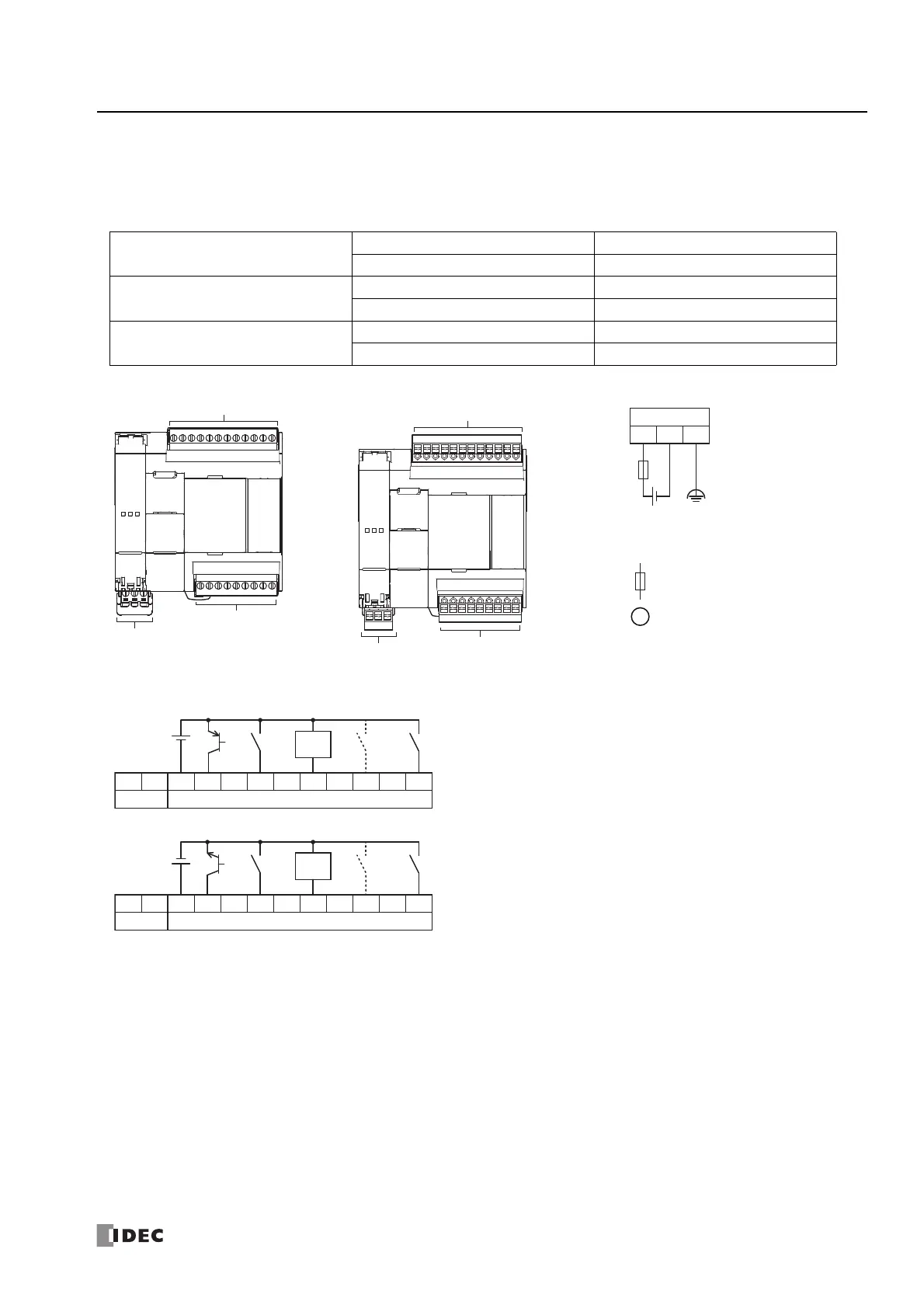

FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722 2-37
2: P RODUCT S PECIFICATIONS
■ 24V DC Power Type
Applicable connector
(2) Input terminals
DC Sink Input Wiring
DC Source Input Wiring
16-I/O type: Screw fastened type: FC6A-C16R1CE, FC6A-C16K1CE, FC6A-C16P1CE
Push-in type: FC6A-C16R4CE, FC6A-C16K4CE, FC6A-C16P4CE
(1) Power supply terminals
Screw fastened type FC6A-PMTD03PN02
Push-in type (24 VDC) FC6A-PMSDC03PN02
(2) Sensor power terminals, input terminals
Screw fastened type FC6A-PMTA12PN02
Push-in type FC6A-PMSA12PN02
(3) Output terminals
Screw fastened type FC6A-PMTA09PN02
Push-in type FC6A-PMSA09PN02
Screw fastened type Push-in type (1) Power supply terminals
(2)
(3)
(1)
(2)
(3)
(1)
+24V - FE
24V DC Power Input
- +
External Power
24V DC
: Fuse
: Load
L
NC. NC. COM I0 I1 I2 I3 I4 I5 I6 I7 I10
– 24V DC Input
-
+
-
+
External Power
24V DC
2-wire
Sensor
NC.
NC. COM
I0 I1 I2 I3 I4 I5
I6
I7 I10
– 24V DC Input
+
-
+
-
External Power
24V DC
2-wire
Sensor
