2: P
RODUCT
S
PECIFICATIONS
2-58 FC6A S
ERIES
MICROS
MART
U
SER
’
S
M
ANUAL
FC9Y-B1722

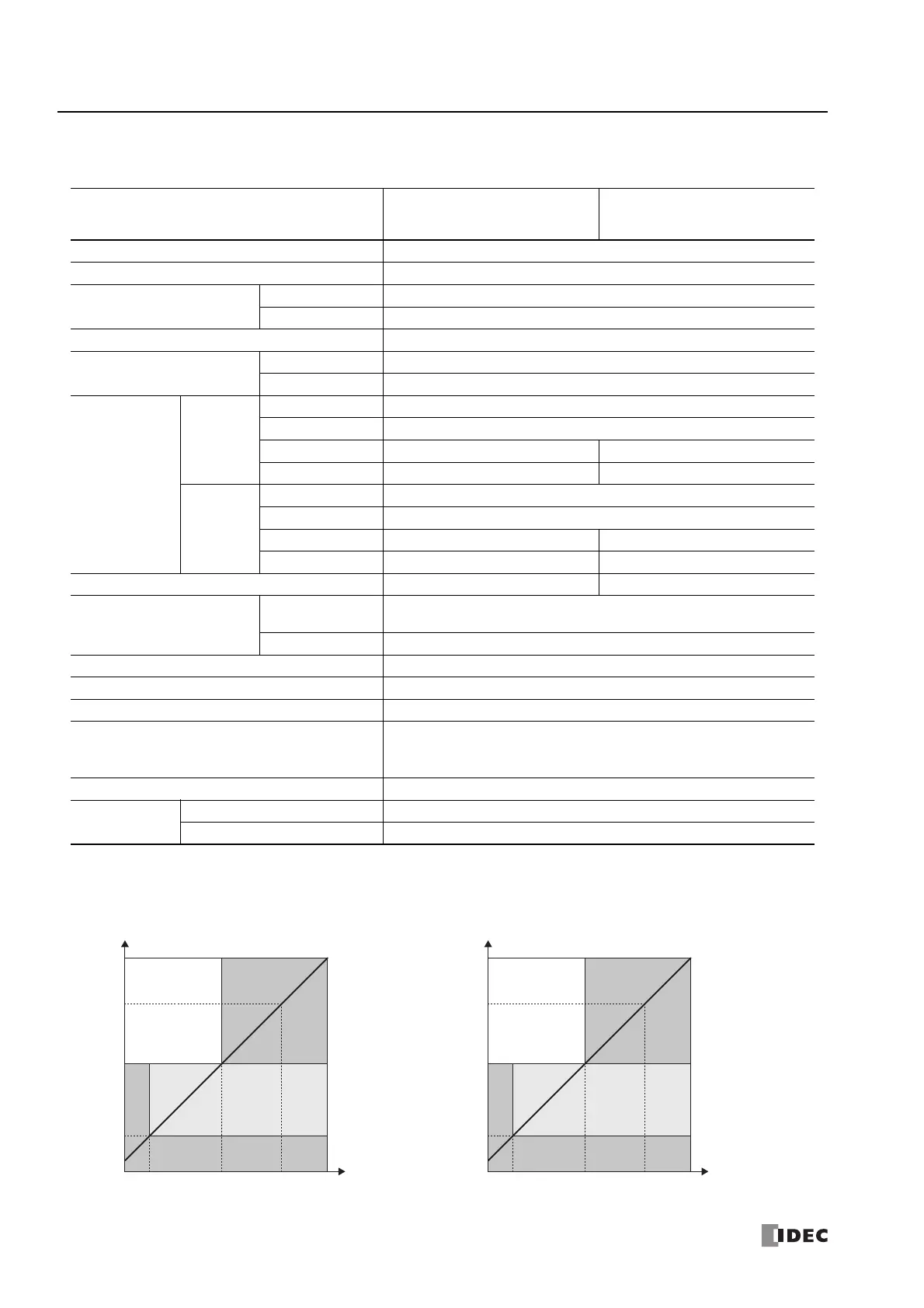

DC Input Specifications
■ 24V DC Power Type
Operating Ranges
The operating range of Type 1 (IEC 61131-2) DC input is as follows.
Type No.
FC6A-D16R1CEE, FC6A-D16R4CEE
FC6A-D16K1CEE, FC6A-D16K4CEE
FC6A-D16P1CEE, FC6A-D16P4CEE
FC6A-D32K3CEE, FC6A-D32K4CEE
FC6A-D32P3CEE, FC6A-D32P4CEE
Rated Input Voltage 24V DC shared sink/source
Input Voltage Range 20.4 to 28.8V DC
Rated Input Current
I0, I1, I3, I4, I6, I7 5 mA/point (at 24V DC)
I2, I5, I10 to I17 7 mA/point (at 24V DC)
Terminal Arrangement See "24V DC Power Type" on page 2-64.
Input Impedance
I0, I1, I3, I4, I6, I7 4.9 kΩ
I2, I5, I10 to I17 3.4 kΩ
Input Delay Time
Turn ON
Time
I0, I1, I3, I4, I6, I7 5 μs + software filter setting
I2, I5 35 μs + software filter setting
I10 to I13 —35 μs + software filter setting
I14 to I17 —4.1 ms
Turn OFF
Time
I0, I1, I3, I4, I6, I7 5 μs + software filter setting
I2, I5 35 μs + software filter setting
I10 to I13 —35 μs + software filter setting
I14 to I17 —4.1 ms
Quantity of Inputs 8 points in 1 common line 16 points in 1 common line
Isolation
Between Input
Terminals
Not isolated
Internal circuit Photocoupler isolated
Input Type Type1 (IEC61131-2)
External Load for I/O Interconnection Not needed
Signal Determination Method Static
Effect of Improper Input Connection
Even if wiring for sink or source connection is incorrect, no damages are caused.
However, if high voltage is applied that exceeds the input voltage range, there is a
risk of permanent damage.
Cable Length 3 m
I/O Terminal
Connector
Type See "24V DC Power Type" on page 2-64.
Insertion/Removal Durability 100 times minimum
Transition
Area
ON Area
I0, I1, I3, I4, I6, I7
OFF Area
2.6 mA
6 mA
Input Current
(mA)
5 V
15 V
24 V
Input Voltage (V DC)
28.8 V
0.6 mA 5 mA
Transition
Area
ON Area
I2, I5, I10 to I17
OFF Area
4.2 mA
8.4 mA
Input Current
(mA)
5 V
15 V
24 V
Input Voltage (V DC)
28.8 V
1.3 mA 7 mA
To Next Page
