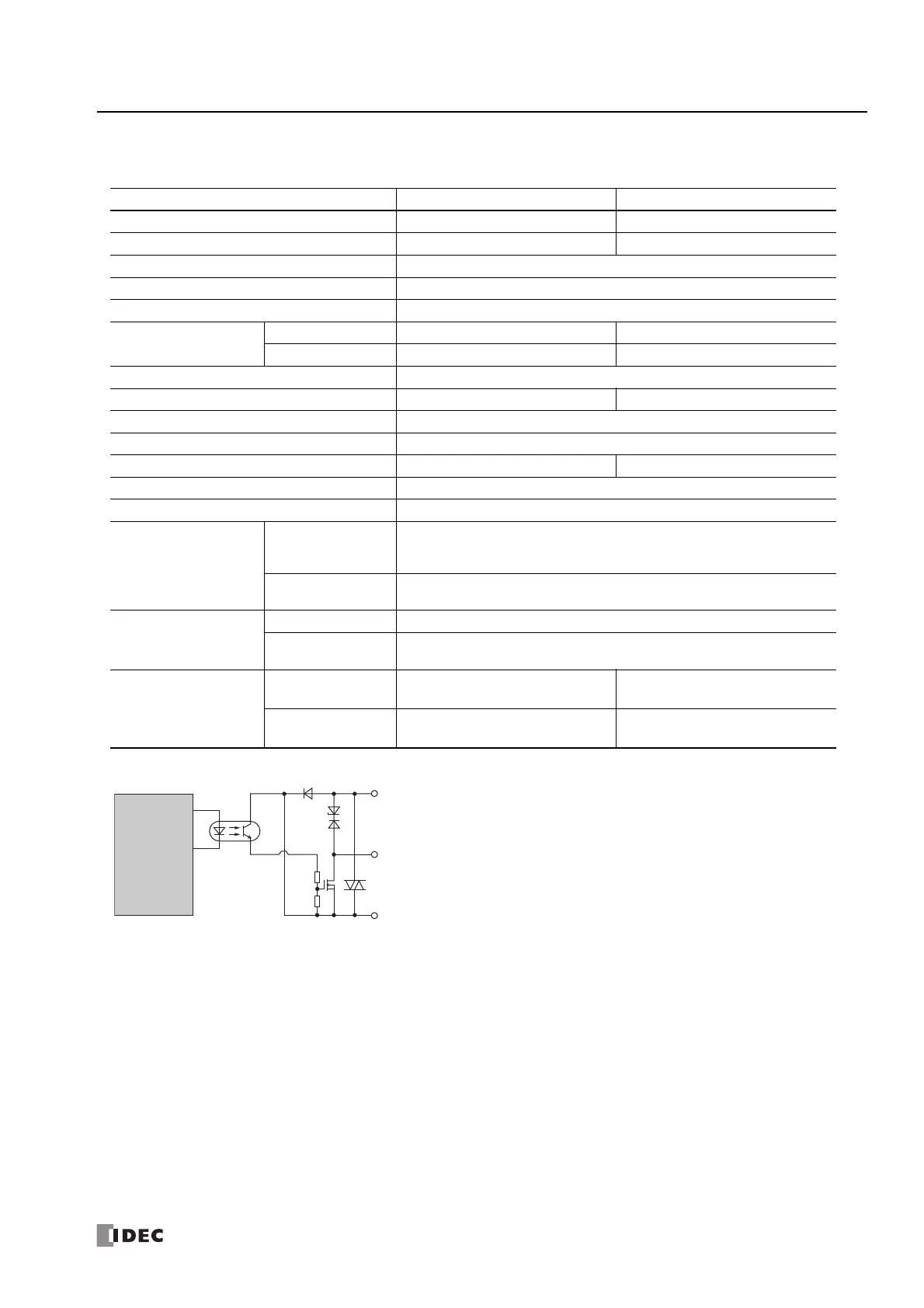

FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722 2-61
2: P RODUCT S PECIFICATIONS
Transistor Sink Output Specifications
■ 24V DC Power Type
Output Internal Circuit
Type No. FC6A-D16K1CEE, FC6A-D16K4CEE FC6A-D32K3CEE, FC6A-D32K4CEE
Output Points 816
Output Points per Common Line 816
Rated Load Voltage 24V DC
Operating Load Voltage Range 20.4 to 28.8V DC
Terminal Arrangement See "24V DC Power Type" on page 2-64.
Maximum Load Current
1 0.5 A maximum 0.1 A maximum
1 Common 4 A maximum 1.6 A maximum
Voltage Drop (ON Voltage) 1 V or less, voltage between COM and output terminal when ON
Maximum Inrush Current 1 A 0.2 A
Leakage Current 0.1 mA maximum
Clamping Voltage 39 V±1 V
Maximum Lamp Load 12 W 2.4 W
Inductive Load L/R = 10 ms (28.8V DC, 1 Hz)
External Current Draw 100 mA maximum, 24V DC (+V terminal supply power)
Isolation
Between Output
Terminal and
Internal Circuit
Photocoupler isolated
Between Output
Terminals
Not isolated
I/O Terminal Connector
Type See "24V DC Power Type" on page 2-64.
Insertion/Removal
Durability
100 times minimum
Output Delay
Turn ON Time Q0 to Q7: 5 μs or less
Q0 to Q7: 5 μs or less
Q10 to Q17: 300 μs or less
Turn OFF Time Q0 to Q7: 5 μs or less
Q0 to Q7: 5 μs or less
Q10 to Q17: 300 μs or less
V(+)
Output
COM(
- )
Internal Circuit
T
2
T
1
