IDEC MICROSmart FC6A Series User Manual

2: P RODUCT S PECIFICATIONS
2-60 FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722

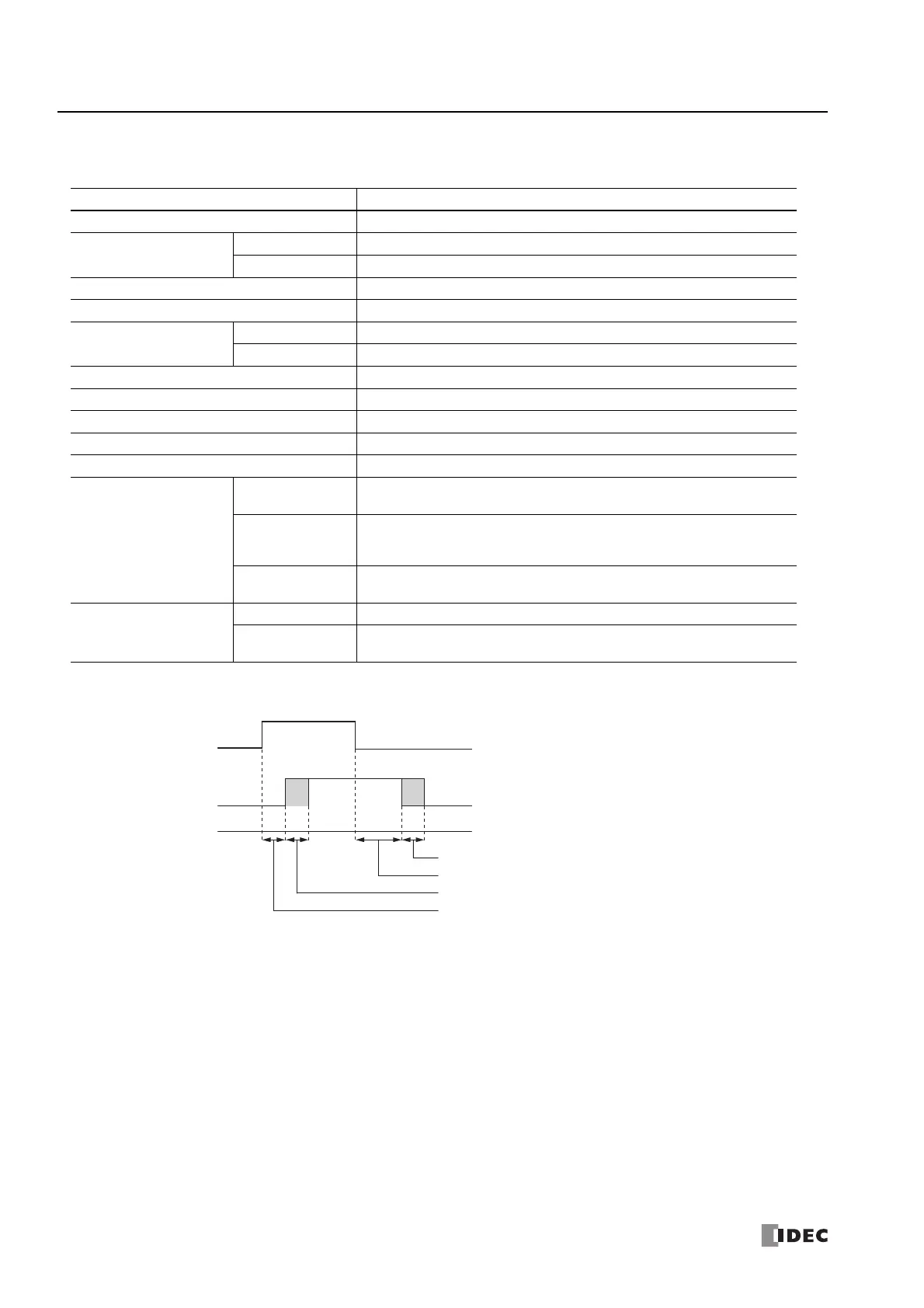

Relay Output Specifications
■ 24V DC Power Type
*1 Values for resistive/inductive load.
Output Delay
Type No. FC6A-D16R1CEE, FC6A-D16R4CEE
No. of Outputs 8
Output Points per
Common Line
COM1 4
COM2 4
Terminal Arrangement See "24V DC Power Type" on page 2-64.
Output Type 1a contact
Maximum Load Current
*1
1 2 A maximum
1 Common 7 A maximum
Minimum Switching Load 1.0 mA/5.0V DC (reference value)
Initial Contact Resistance 30 mΩ or lower
Electrical Life 100,000 operations minimum (rated load 1,800 operations/hour)
Mechanical Life 20,000,000 operations minimum (no load 18,000 operations/hour)
Rated Load
*1
240V AC 2 A, 30V DC 2 A
Withstand Voltage
Between Output
Terminal and FE
2,300V AC, 1 minute
Between Output
Terminal and
Internal Circuit
2,300V AC, 1 minute
Between Output
Terminals (COMs)
2,300V AC, 1 minute
I/O Terminal Connector
Type See "24V DC Power Type" on page 2-64.
Insertion/Removal
Durability
100 times minimum
OFF Bounce: 6 ms maximum
OFF Delay:
10 ms maximum
ON Bounce: 6 ms maximum
ON Delay:
6 ms maximum
Input to Relay
Output Relay Status
ON
OFF
ON
OFF
