1.4 > Wiring Recommendations
Idemia recommends using a AWG16 gauge and 24V power supply when PoE+ supply is not used.
The voltage specified is the one measured on the product block connector:
12V-24V (-15% / +10%).

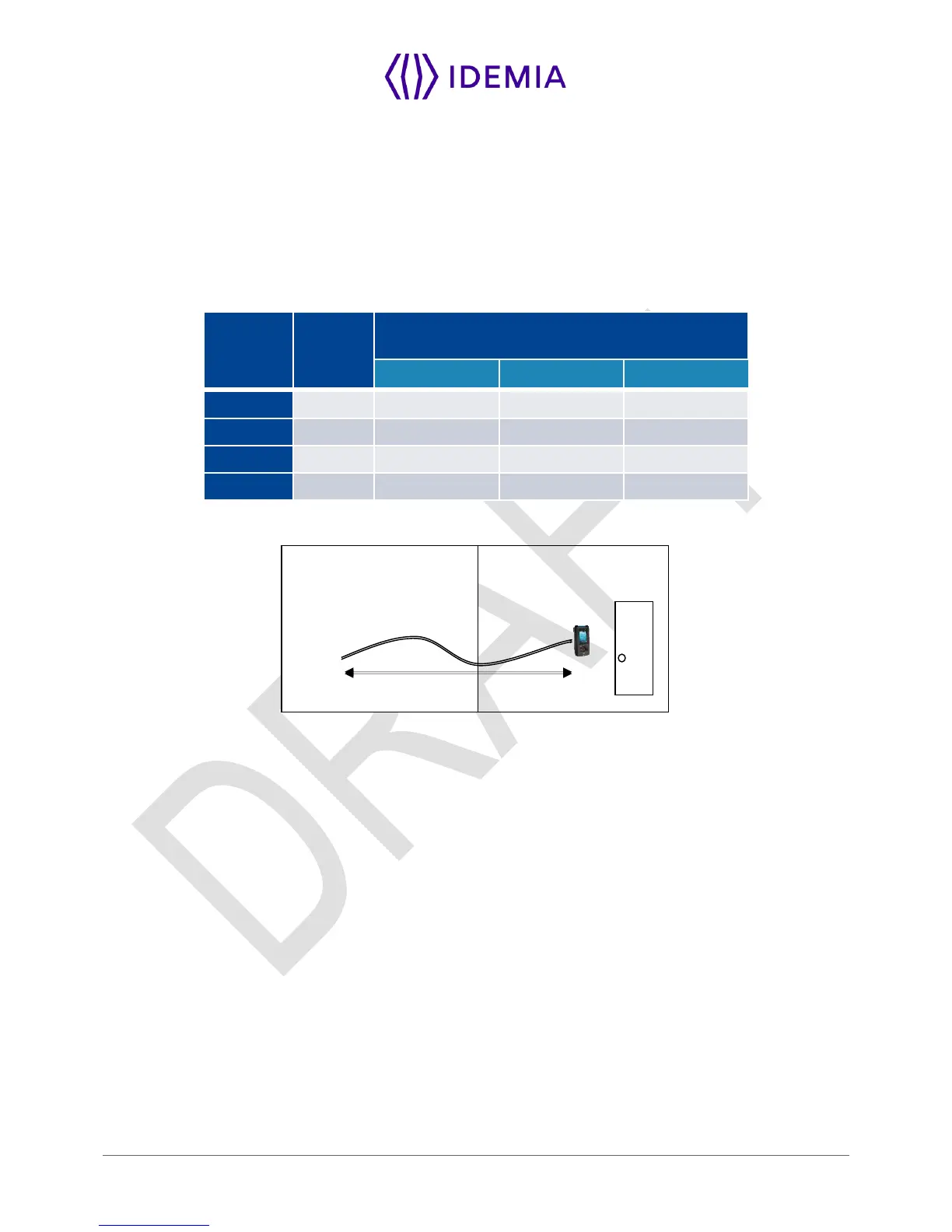

The voltage drop due to the cable shall be taken into account. The following table shows the maximum
distance between power supply and one (1) unique device, depending on cable gauge and power supply
rating:
Gauge
AWG
Section
(mm
2
)
Maximum distance (meters) vs power
source rating
12V+/-10%
12V+/-5%
24V+/-10%
16
1.31
9 m
20 m
300 m
18
0.82
6 m
12 m
200 m
20
0.52
3 m
8 m
120 m
22
0.32
2 m
5 m
75 m
Drop voltage = loss of power due to wire resistance and its length: V2 = V1 – Drop voltage
V1
V2
L
