For test purpose, it is possible to use the existing connector without cutting it. This connector mates with
Molex PCB header reference 5016452620. The pinout of this connector is described in this document in
section 4 /.
The pinout indications that you can see on the labels of the cable shall NOT be taken into
account as they correspond to the OTHER connector on the device side. Please use only
the pinout information given in this document in section 4 /.

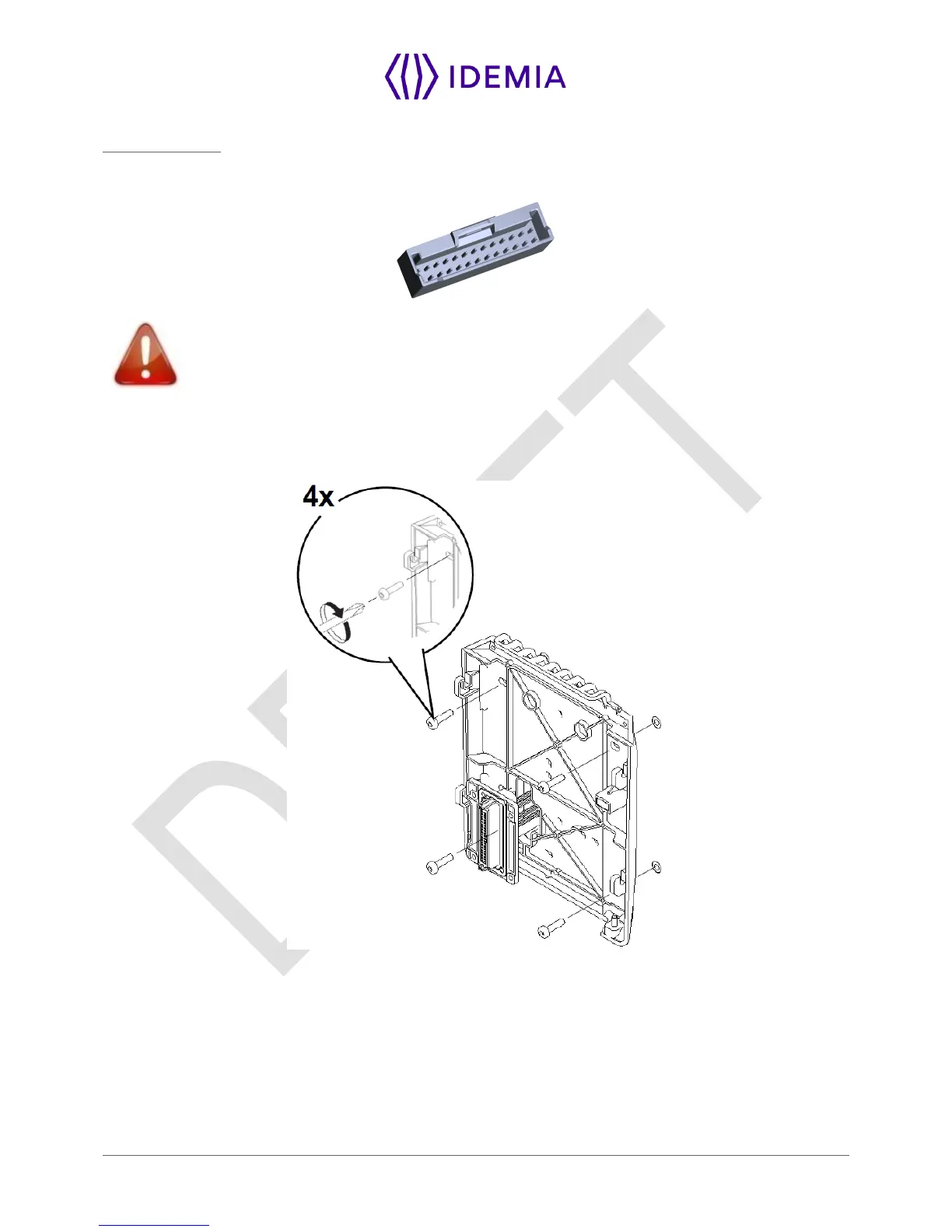

3.3.3 > Attach the base plate on the wall
Fix the base plate on the wall with the 4 screws.
